M1320-M1420
    Publish time 2022-07-01 15:00

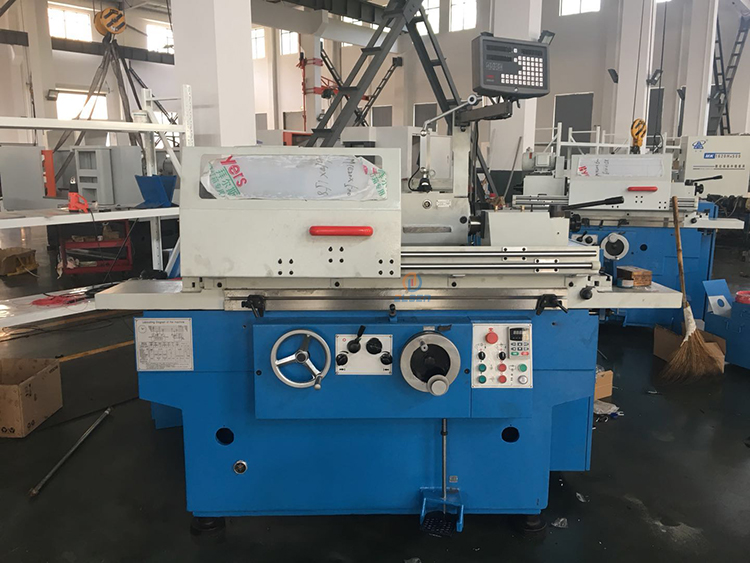

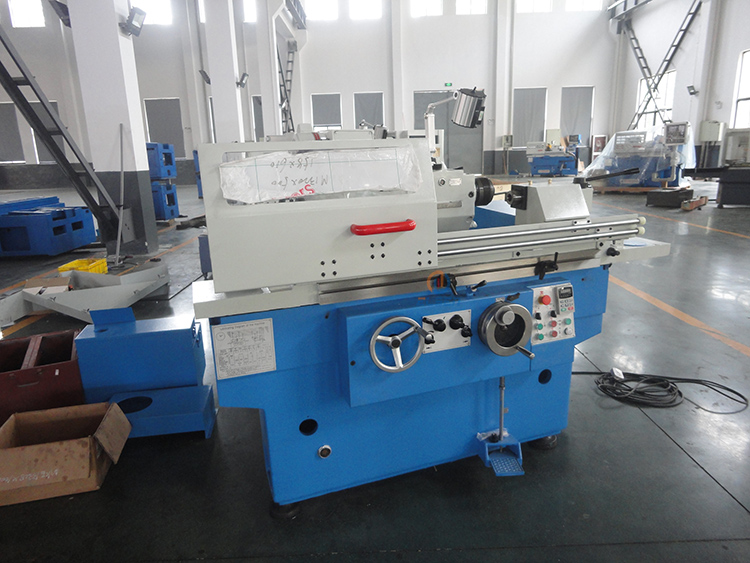

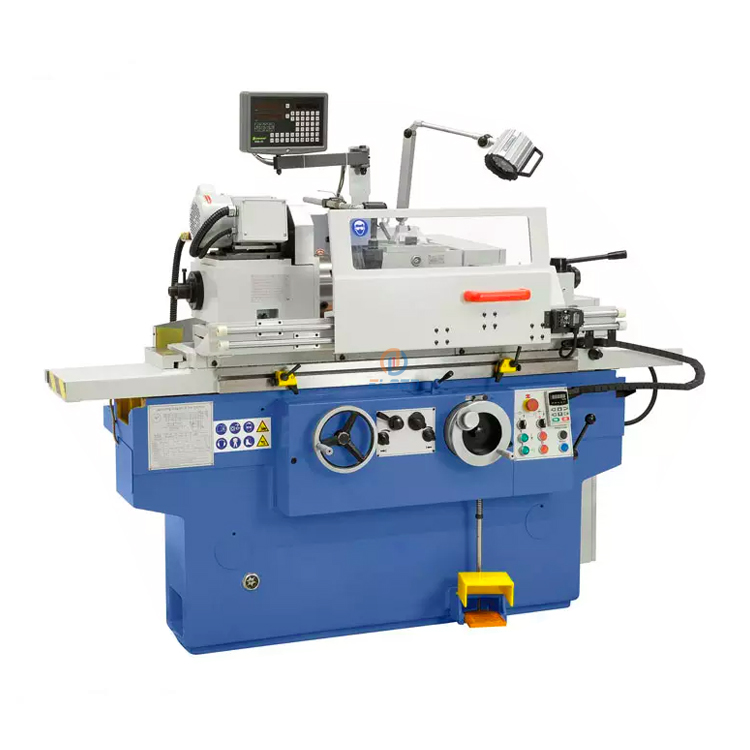

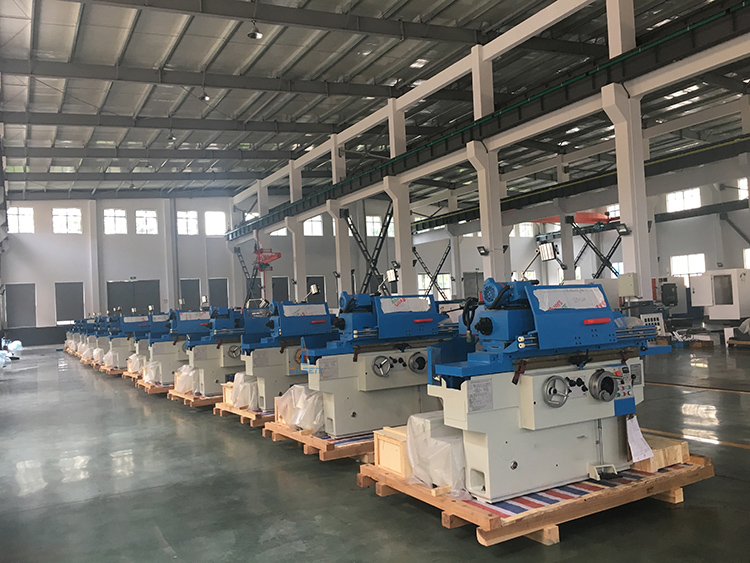

M1320-M1420

   The lengthways moving of the working table and the transverse moving of the grind head are hydraulic transmission,
and the velocity modulation is stepless.
   The grind head perpendicular feed is manual, and has the quick elevating mechanism.
   It can lighten labour intensity and raise work efficiency.
   The working table slideway of rail is pasted the polytetra fluoroethylene soft belt.
   The wear-resisteant is good, and the energy consumption is low.


Model
Unit
M1320x500
M1320x800
M1420x500
M1420x800
External grinding diameters (O.D)
mm
8-200
8-200
8-200
8-200
Internal grinding diameters (I.D)
mm

13-100
13-100
Center height
mm
135
135
135
135
Max.travel of table
mm
650
950
650
950
Hydraulic traverse speed
m/min
0.1-4
0.1-4
0.1-4
0.1-4
Max.workpiece weight
kg
50
50
50
50
Grinding length external (O.D)
mm
500
800
500/125
800/125
Swivel range of worktable
degree
-5~ +9 degree
-3~ +7 degree
-5~ +9 degree
-3~ +7 degree
Max.peripheral speed of grinding wheel
m/s
38
38
38
38
External grinding wheel size
mm
Max.400*50*203 Min.280*50*203
Max.φ400x50xφ203 Minφ280x50xφ203
Internal wheel spindle rotating-speed
r/min

10000
10000
Workhead and tailstock center
morse
No.4
No.4
No.4
No.4
Machine motor power
kw
5.625
5.625
5.625
5.625
Overall dimension
mm
2500*1600*1500
3000*1600*1500
2200x1600x1700
3100x1600x1700
Machine weight
kg
2500
3000
2500
3000
O.D. Roundness
μm
1.5
1.5
1.5
1.5
Ex.surface
μm
Ra. ≤0.32
Ra. ≤0.32
Ra. ≤0.32
Ra. ≤0.32
Cylindricity
μm
5
5
5
5
