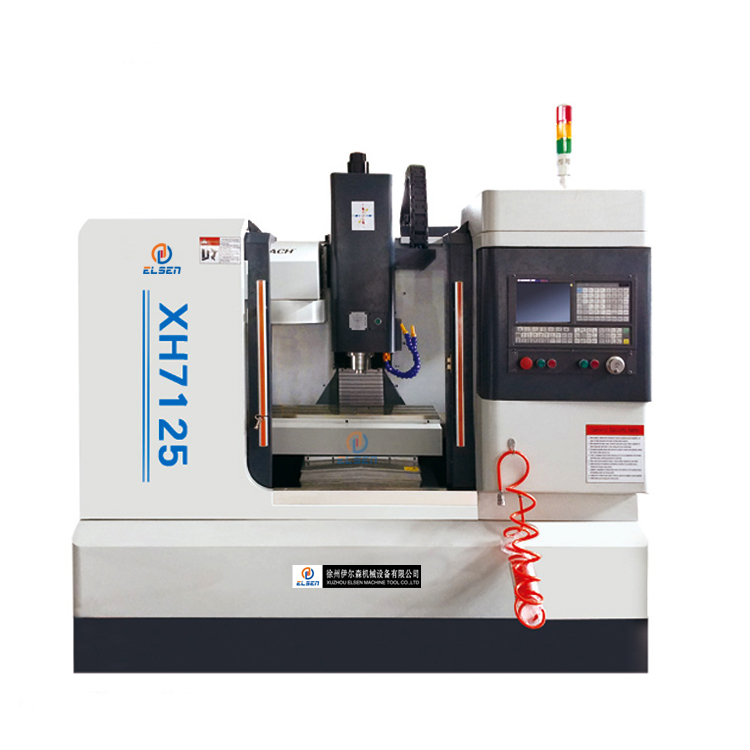

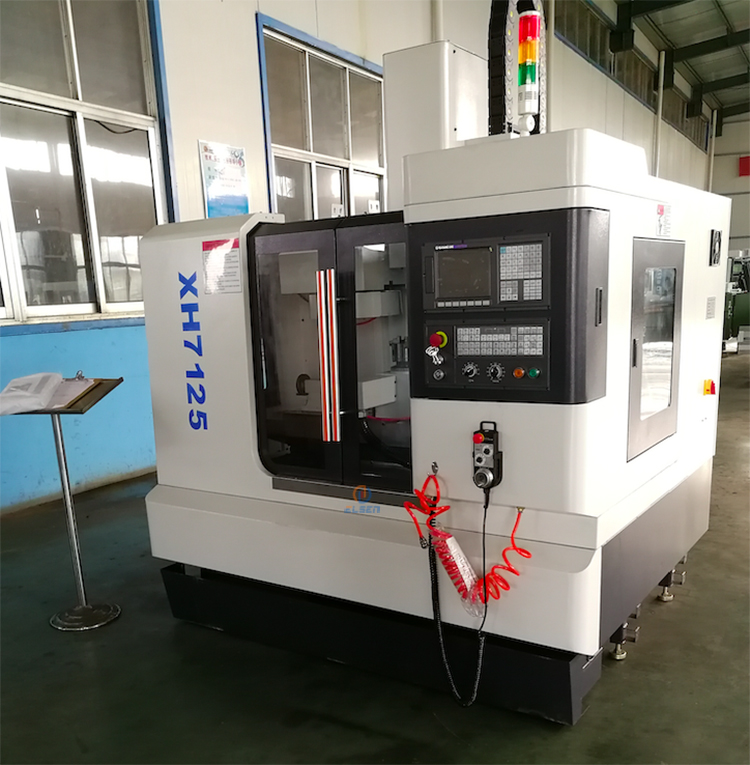

With a CNC milling body, this machine boasts strong carrying capacity, it also has three quench hardening guideways, wide guide rail & broad span as well as compact & reasonable structure and overall dimension; spindle are driven by frequency conversion motor via timing belt. The machine has milling, drilling, boring, reaming and etc. multiple functions, which could realize complex & high-precision components’ machining upon plates, boards, shells, molds and etc., it is mainly applied to machine high-precision components, it could process plane & slope, groove, holes and etc. of small and medium-sized components. In overall, this milling machine is an ideal machining equipments for machine, electronics, instruments, meters, molds, molds and etc. industries.
Specifications
Unit
XH7125
Table size
mm
900×250
X-axis travel
mm
450
Y-axis travel
mm
260
Z-axis travel
mm
380
Distance from spindle axis to column surface
mm
330
Distance between spindle nose and worktable
mm
50-430
The vertical tolerance of distance between spindle nose and worktable
