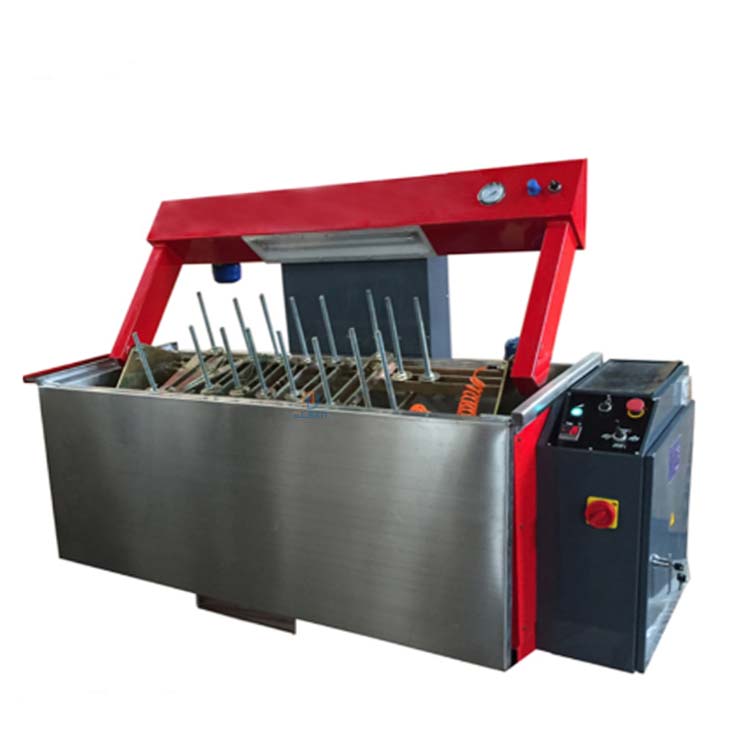

TPT1600L
    Publish time 2022-03-24 21:30
TPT1600L
* Easy and efficient pressure test of cylinder head and cylinder block coolant circuits.
* Quick and easy clamping system allowing tests at a pressure of 4 to 5 bar.
* 360° Electric powered roll-over fixture.
* Hydraulic cradle lift for easy positioning of heavy cylinder heads.
* Stainless steel tank with heat barrier.
* Heating elements: two changeover 4500 Watts elements.
* Water level control.
* Low voltage: 24V operating control.
* Electronic adjustable thermostat.
* Heating programmer: daily or weekly.
Model
Unit
TPT1600
TPT1600L
TPT1700XL
Length
Mm/inch
1250/49
1350/53.15
1350/53.15
Width
Mm/inch
400/15.74
425/16.73
460/18.11
Henghth
Mm/inch
300/11.81
300/11.81
410/16.14
Capacity of stainless steel tank
1/us gal
500/132
500/132
500/132
Heating elements
kw
2*45
2*45
2*45
Hydraulic hoist
kw
0.75
0.75
0.75
Gear-motor
kw
0.25
0.25
0.25
Rotational speed
Tr/min
4
4
4
Up and down travel time
Mm/inch in 10 sec
600mm/23.62
600mm/23.62
620/24.41
Thermostat
℃
0-90
0-90
0-90
Net weight approx
Kg/1bs
600/1324
600/1324
650/1434
Overalldimension




Length
Mm/inch
2000/78.75
2100/82.68
2100/82.68
Width
Mm/inch
1050/41.34
1050/41.34
1140/44.88
Height
Mm/inch
1700/66.93
1700/67.00
1775/69.83
