T8115Bx16
    Publish time 2022-03-24 20:35

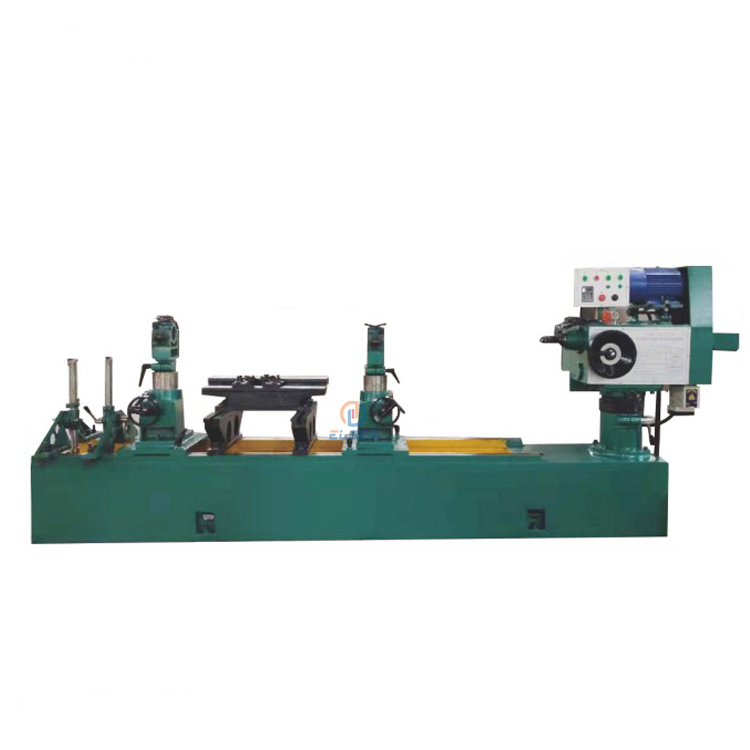

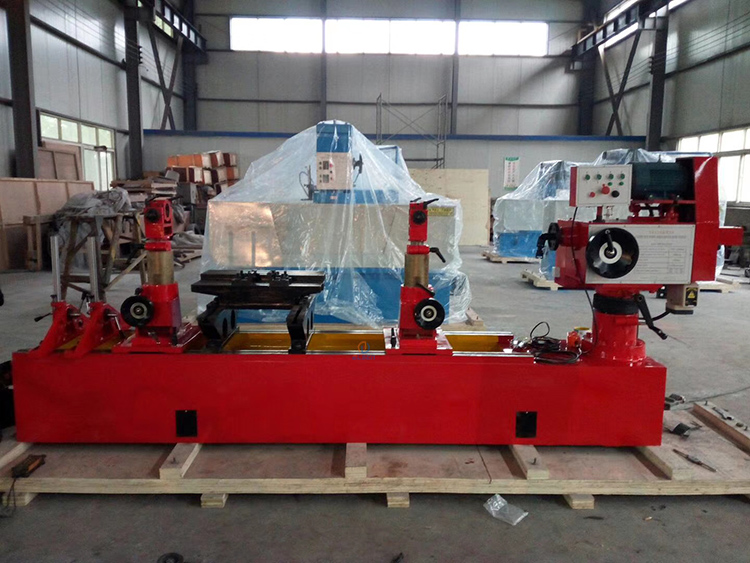

T8115Bx16
Application
It used for boring main shaft and camshaft bushing hole of the cylinder body.
Structure characters
1,With long travel of tool feeding,which can improve the work efficiency and coxial of bored bushing.
2,The boring bar is special heat treatment,which can improve the rigidity and hardness of the boring bar and working precision.
3,The auto-feeding system adopts stepless adjusting,suits for processing all kinds of materials and hole diameter of the bushing.
4,With special measuring device,it can improve working efficiency and working accuracy.
Model
T8115Bx16
T8120Dx20
T8120Ex20
T8125Ex25
Dia. Range of boring hole
36 -150 mm
36 -200 mm
36-200mm
36-250mm
Max. length of cylinder body
1600mm
2000mm
2000mm
2500mm
Main spindle max elongation
300mm
300mm
300mm
300mm
Main spindle rotating speed
210,275,360,480,720,960rpm ( 6 steps)
200-960 (stepless speed)
Boring spindle feed speed
0-180 mm/min(stepless speed regulation)
Motor Power
0.75kw/1.1kw
1.5kw
Dimension (mm)
3510x650x1410
3910x650x1410
3910x650x1410
4410x650x1410
Net weight
2000kg
2100kg
2100kg
2200kg
Gross weight
2200kg
2300kg
2300kg
2400kg
