T8445
    Publish time 2022-03-24 21:09

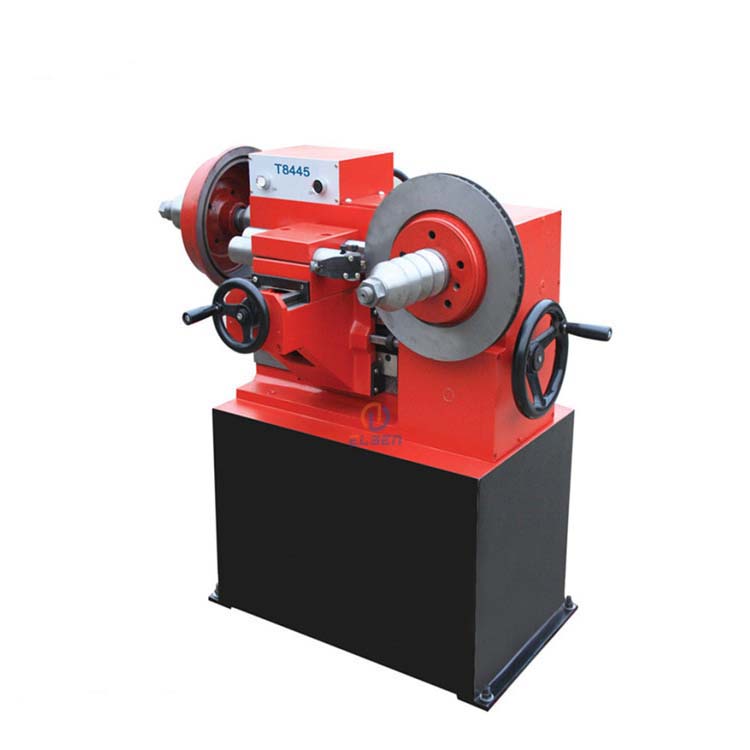

T8445
Application:
♦Applicable for repairing brake drums/discs of vehicles like SUV cars;
♦3 higher spindle speed & 2 feeding rate enable higher efficiency;
♦2 faces of brake disc can be turned simultaneously,More convenient optimized tool post;
♦Specially for brake discs of the luxurious medium vehicles & off-road vehicles like BMW,BENZ,AUDI,etc;
Model
Unit
T8445
T8445A
T8465
T8470
Processing dia of brake drum
mm
180-450
180-450
180-650
220-700
Processing dia of brake disc
mm
≦400
≦400
≦500
≦550
Rotating speed of workpiece
r/min
30/52/85
30/54/80
30/52/85
30/54/80
Max travel of tool
mm
170
170
250
300
Feeding capacity
mm/r
0.16/0.30
0.16/0.30
0.16/0.30
Variable speed
Motor power
kw
1.1
1.1
1.1
1.5
Overall dimension
mm
690x890x880
690x890x880
800x875x1050
1100x905x1172
Weight
kg
320
320
550
600
