Specification

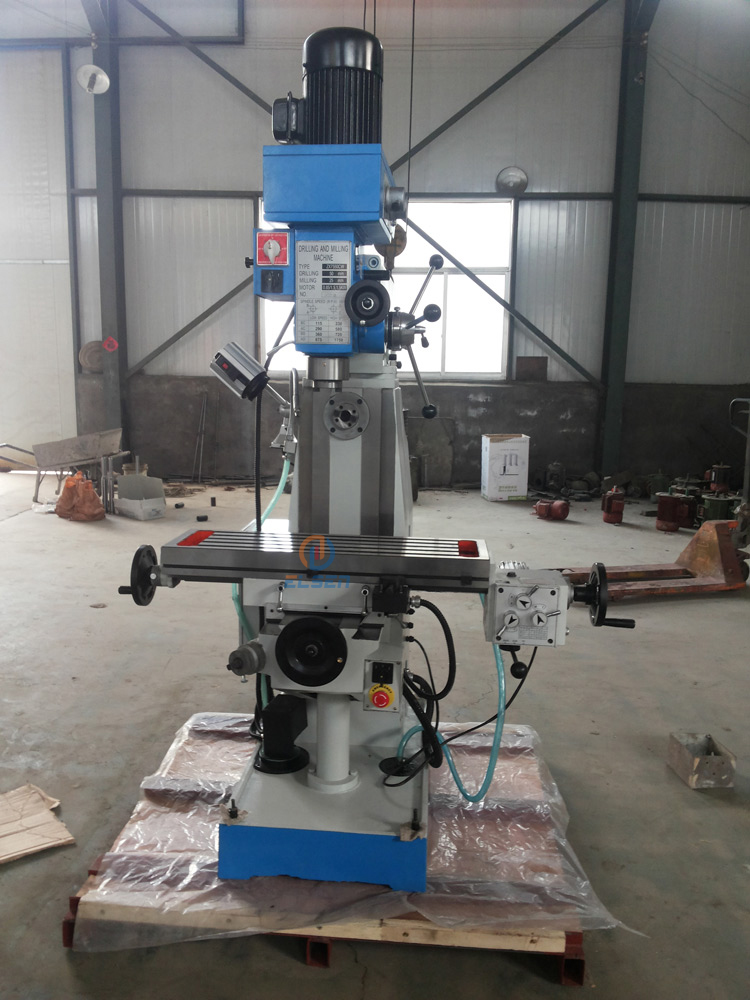

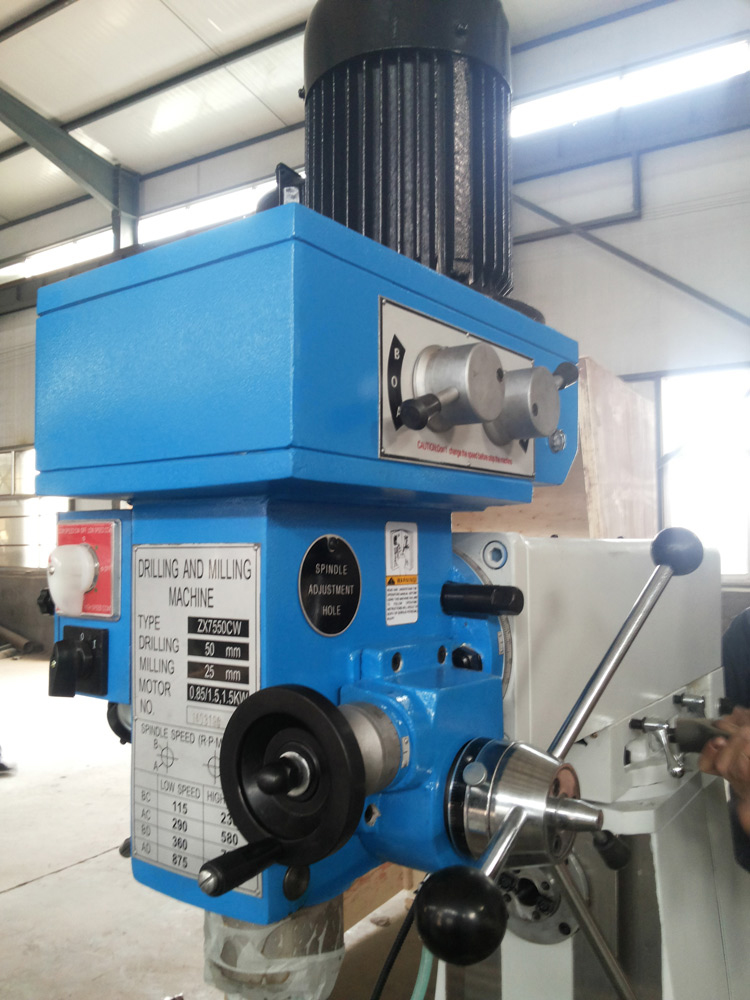

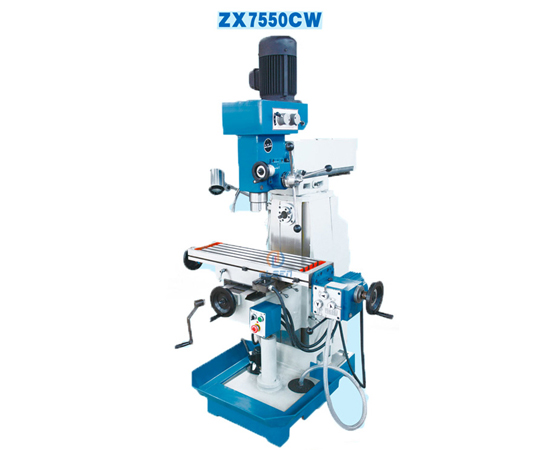

ZX7550CW

Spindle taper

SO40(V)   ISO40(H)

Max.drilling diameter

50mm

Distance from spindle to table

70-420m m

Distance from horizontal spindle to table

0-350mm

Tervel of movable arm

300mm

Spindle speeds

(8)115-1750r.p.m(V) (9)58-1355r.p.m(H)

Spindle travel

120mm

Max.tapping dia.

M16

Max.horizontal milling dia.

120mm

Head movement(left/right)

90degrees

Table size

1000x240

Table travel(horizontal/cross/vertical)

600x230x350mm

Feeding range of longitudinal travel

(8)24-720mm/min

X-axis rapid feed speed

1180mm/min

Max weight of workpiece

250kg

T-slot number /width/distance

3/14mm/60mm

Horse power for main motor

0.85/1.5KW(V)/1.5KW (H)

X axis driving motor

370W

Overall dimension

1340x1200x2250mm

N.W./G.W.

970/1120kg
