T8115VF
    Publish time 2022-03-24 20:27
T8115VF

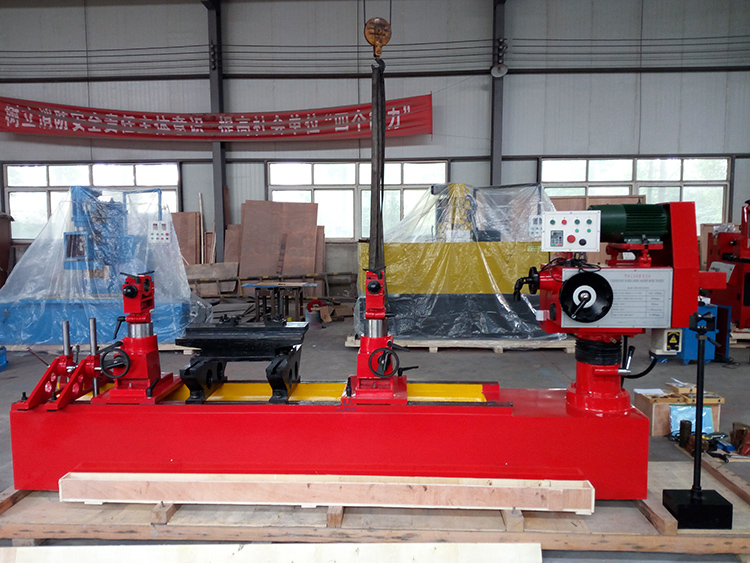

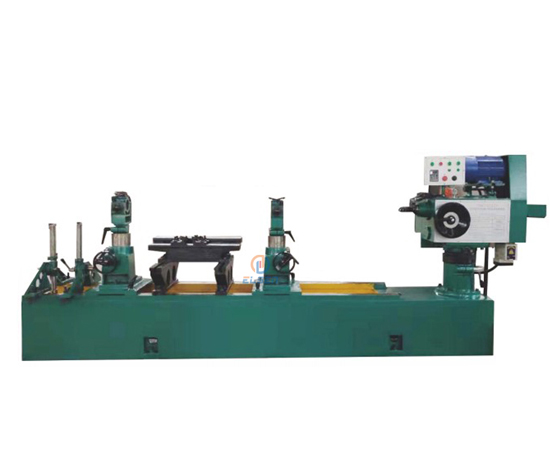

This kind of line boring machine is repairing machine tools with high efficiency and high precission,They can be used for boring master bushing and bushing of engine & generator's cylinder bodier in automobiles, tractors and ships etc. If necessary, the flywheel hub bore and bushing seat hole can be also finely bored, to be supplied with following accessories : accessories for centering, sectifying tool, measuring inner diameter, boring rod bracket, tool holder to increase diameter, boring tool micro-adjuster and for distance tool sectifying device can be provided with the main machine.
Model
T8115VF
T8120VF
Range of hole diameter to be bored
36 -150 mm
36 -200 mm
Max. length of cylinder body to be bored
1600mm
2000mm
Main spindle max elongation
300mm
300mm
Main spindle rotating speed(stepless)
30-500 rpm
30-500 rpm
Boring spindle feed
0.044, 0.167 mm/r
0.044, 0.167 mm/r
Motor power
1.5 Kw
1.5 Kw
Overall dimension (L×W×H)
3500×800×1500 mm
3900×800×1500 mm
Packing dimensions (L×W×H)
3650×1000×1600 mm
4040×1020×1600 mm
N.W./G.W.
1900/2200 kg
2200/2500kg
