Machine specification:

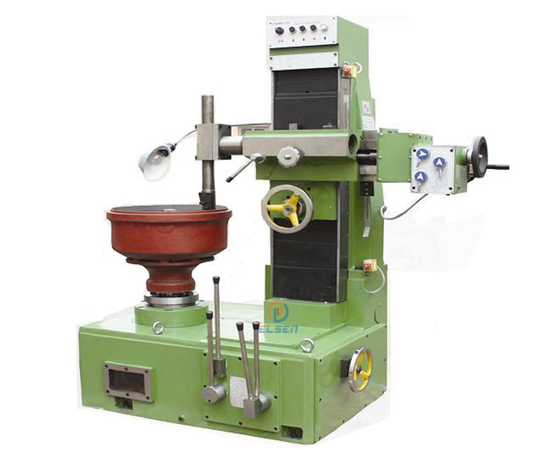

This machine is applicable for boring, repairing, machining, producing brake drum of vehicles & tractors, it is with features as below:
1. High rigidity. The thickness of chassis is 450mm, which is integrated with transmission system & stand, so the rigidity is strengthened.
2. Wide machining range. This model is with very big machining diameter among all the brake drum boring machines in china. Max processing diameter will be 800mm.
3.Perfect operation system. The quick up/down & positive/negative feed increases the working efficiency and the integrated button station achieves convenient operatin.
4.Applicable for widel car types. It can machine not only brake drums of Jiefang, Dongfeng, Yellow River, Yuejin, Beijing130, Steyr, Hongyan etc.,but also the followings: Zhongmei Axle, York Axle, Kuanfu Axle, Fuhua Axle, Anhui Axle.
5.New design structure,the vertical column will move from the left to right.It will increase the processing diameter.
|
Main Specifications |
Unit |
T8362 |
TC8365A |
T8370 |
T8380 |
|
Range of Processing Diameter |
mm |
180-620 |
200-650 |
180-700 |
180-800 |
|
Rotating Speed of Workpiece |
r/min |
36/48 |
25/45/80 |
24/45/80 |
38/62 |
|
Working Travel of Slideboard |
mm |
450 |
350 |
450 |
450 |
|
Main Motor Power |
kw |
1.1 |
1.5/0.55 |
2.2 |
0.75/0.55 |
|
Overall Dimensions (L x W x H) |
mm |
960 x 940 x 1400 |
1000 x 900 x 1415 |
1040 x 900 x 1720 |
1150x580x1658 |
|
PackingDimensions (L x W x H) |
mm |
1060 x 1040 x 1500 |
1200 x 1040 x 1630 |
1150x 1000 x 1820 |
1250x680x1758 |
|
N.W/G.W |
kg |
900/1050 |
850/960 |
1200/1350 |
1000/1150 |
