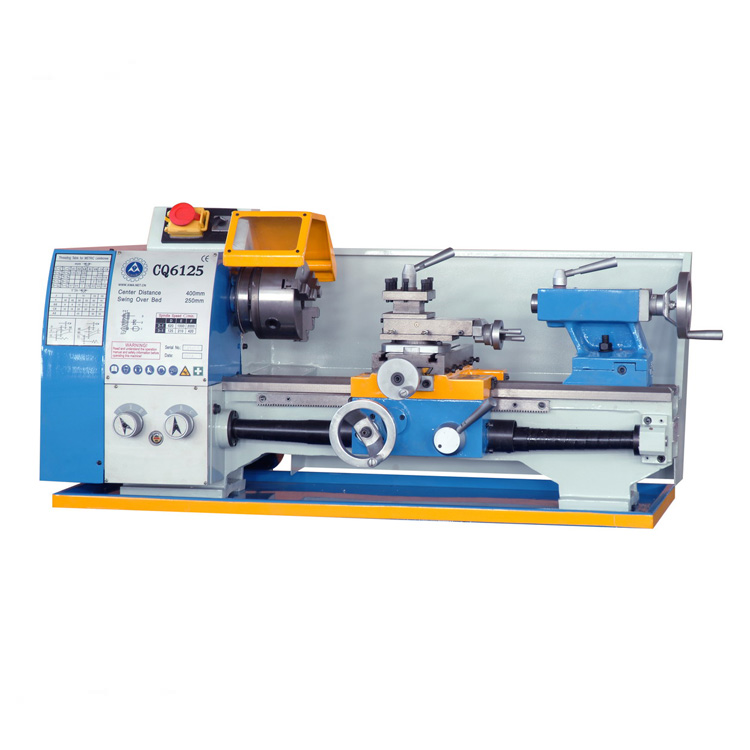

CQ6125/CQ6125V
    Publish time 2022-03-24 16:04
CQ6125/CQ6125V
Feature:
Precision ground and supersonic frequency hardened bed ways.
It features with high accuracy and well wear-resisting.
The spindle is supported with precision roller bearing.
Safety magnetic switch or lock key switch.
”V" is variable speed type.
Specification
CQ6125
CQ6125V
Swing over bed
250mm
250mm
Swing over cross slide
150mm
150mm
Distance between centers
400/550/750mm
400/550/750mm
Width of bed
135mm
135mm
Taper of spindle bore
MT4
MT4
Spindle bore
21mm
26mm
Range of spindle speeds
125-2000rpm
50-2500rpm (Variable Speed)
Range of longitudinal feeds
0.1-0.2mm/rev
0.1-0.2mm/rev
Inch threads can be cut
8-56 T.P.I
8-56 T.P.I
Metric threads can be cut
0.1-2.5mm
0.2-3.5mm
Max.travel of top slide
70mm
70mm
Max.travel of cross slide
115mm
115mm
Max.travel of tailstock quill
65mm
65mm
Taper of tailstock quill
MT2
MT2
Motor power
550w
750w
Packing size
1045/1155/1355x560x565mm
1045/1155/1355x560x565mm
N.W
105/109/119kg
G.W
149/159/169kg
Foot stands (LxWxH)
500x300x750mm
500x300x750mm
Foot stands (N.W)
44kg
44kg
Foot stands (G.W)
48kg
48kg
