iKC4
    Publish time 2022-03-21 22:04

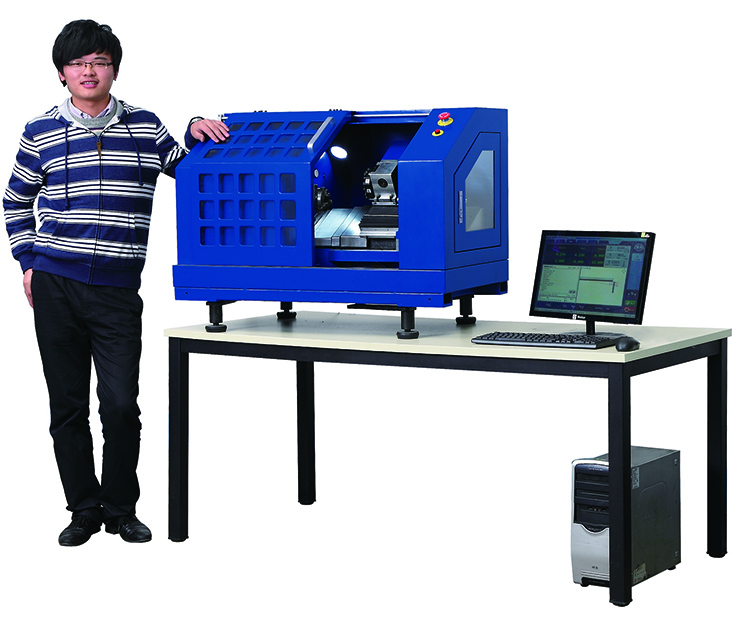

iKC4
IKC4 -SIEG is the upgrade version of KC4S, adopt the structural stability of oblique guide bed, make the machine tool's whole rigidity higher than KC4S. Equipped with the high precision tower magazine tool to make powerful processing performance.
WORKING AREA
Turning diameter over bed(max)
200mm
travel across slide
90mm
Center width
280mm




SPINDLE
Chuck diameter
100mm
Spindle speed
100-3000r/min
Spindle through-hole
20mm
Spindle mount
MT3
Spindle motor power
1000W



FEED
X travel
200mm
Z travel
200mm
The max moving speed
3000mm/min
The max feeding speed
1000mm/min
Motor
2.2Nm


TOOL REST
Tool position
8
Tool dimension 4 external
8×8mm
4 internal
φ10mm


TAILSTOCK
Tailstock taper
MT2
Tailstock sleeve diameter
12mm
Travel of tailstock
38mm

ACCURACY
Positioning accuracy
0.015mm
Repeatability accuracy
0.01mm


OTHERS
Power
230V/120V
Weight（NW/GW）
210/250kg
Overall dimension
1070×690×760mm
Packing size
1260×890×1020mm
