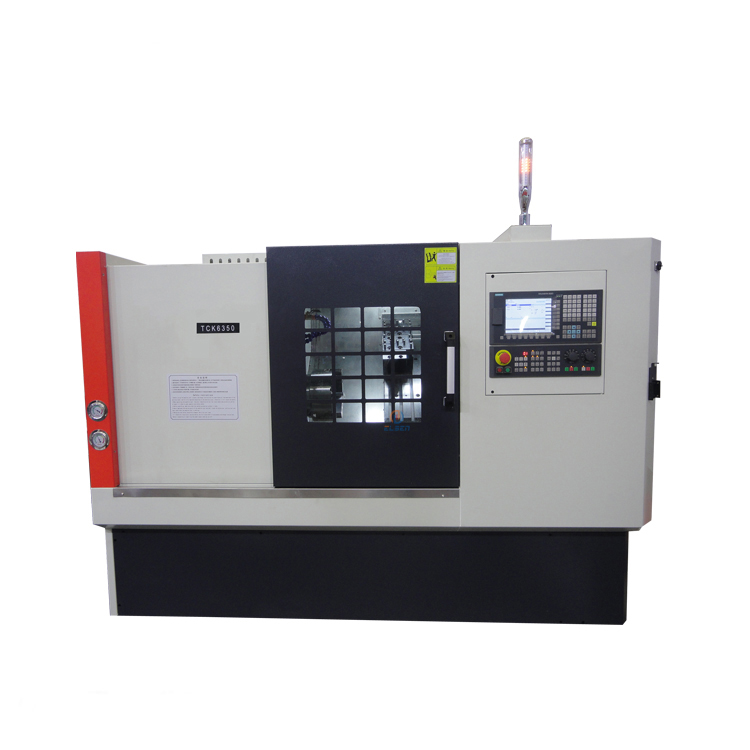

TCK6350
    Publish time 2022-03-21 20:54
TCK6350
Higher accuracy Taiwan linear guideways
Higher speed spindle unit
Higher rigidity cast iron
Spindle servo motor 7.5/11kw
Integrated automatic lubrication
10 Inch Hollow hydraulic oil station
Specification
Unit
TCK6350
Max.swing over bed
mm
520
Max.swing over cross slide
mm
220
Max.processing length
mm
410/330
X/Z axid travel
mm
x:500 z:500
Spindle speed
rpm
3000
Spindle nose

A2-6/A2-8
Spindle bore
mm
66
Spindle motor
KW
7.5/11
Chuck size
in
10
X/Z axis feed motor torque
N.m
7.5/7.5
X/Z Rapid traverse
m/min
18/18
X/Z axis repeatability
mm
±0.003
Guide form

45 Degree Linear guiderway
Tool post from

gang type tool/Turret post
Cutting tool shape size
mm
25x25
Total power capacity
KVA
14/18
Machine dimension(L*W*H)
mm
2500x1620x1890
Net.weight(about)
kg
2900
Standard configuration:
1) System:GSK980TC3, servo motor and drive.
2) 3-jaw manual chuck.
3) Gang type tool.
4) Lighting system.
5) Cooling system.
6) Automatic lubrication system.

Optional configuration:
1). CNC system: GSK, Siemens, Fanuc, KND, etc.
2). Hydraulic chuck, pneumatic chuck .
3). Hydraulic tailstock, pneumatic tailstock.
4). 4/6-station electric tool post, 8- station electric tool post
5). Automatic bar feeder.
