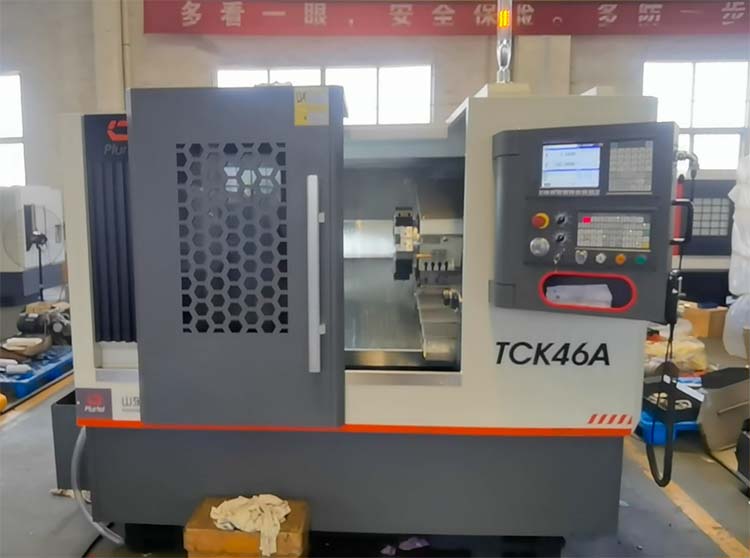

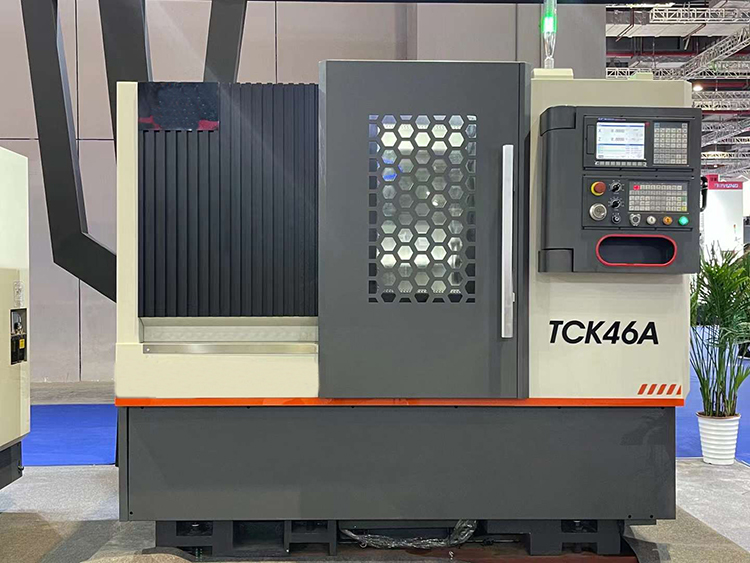

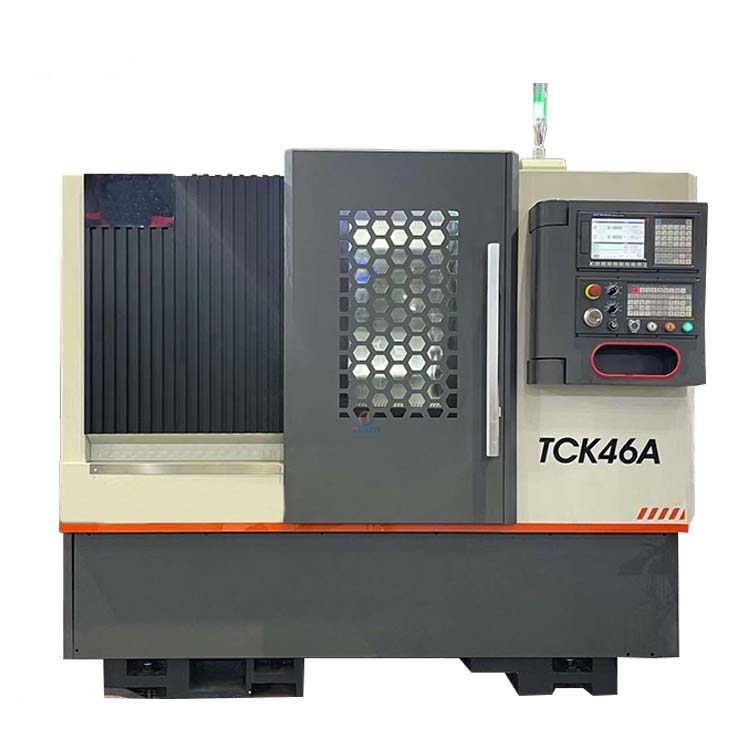

TCK46A
    Publish time 2022-03-21 20:44
TCK46A
Higher accuracy Taiwan linear guideways
Higher speed spindle unit
Higher rigidity cast iron
Integrated automatic lubrication
One-piece casting slant bed cnc lathe
Specification
Unit
TCK46A
Max.swing over bed
mm
460
Max.swing over cross slide
mm
170
Max.processing length
mm
350
X/Z axid travel
mm
x:240 z:400
Spindle speed
rpm
3500
Spindle nose

A2-5/A2-6
Spindle bore
mm
56
Spindle motor
KW
7.5
X/Z axis feed motor torque
N.m
7.5/7.5
X/Z axis repeatability
mm
±0.003
Turret center high dimensions
mm
80
Hydraulic quill dia
mm
70
Hydraulic quill traverse
mm
80
Hydraulic quill taper

morse 5#
Hydraulic tailstock travel
mm
200
Guide form

45 Degree Linear guiderway
Tool post from

8/12 Turret post
Machine dimension(L*W*H)
mm
2500x1700x1710
Net.weight(about)
kg
2600
Standard configuration:
1) System:GSK988T, servo motor and drive.
2) 3-jaw manual chuck.
3) 8-station hydraulic turret.
4) Lighting system.
5) Cooling system.
6) Automatic lubrication system.

Optional configuration:
1). CNC system: GSK, Siemens, Fanuc, KND, etc.
2). Hydraulic chuck, pneumatic chuck .
3). Hydraulic tailstock, pneumatic tailstock.
4). Automatic bar feeder.
