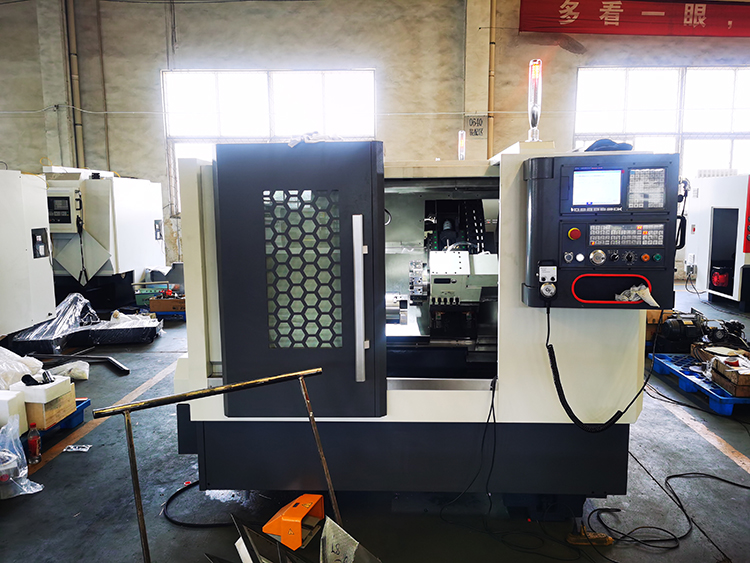

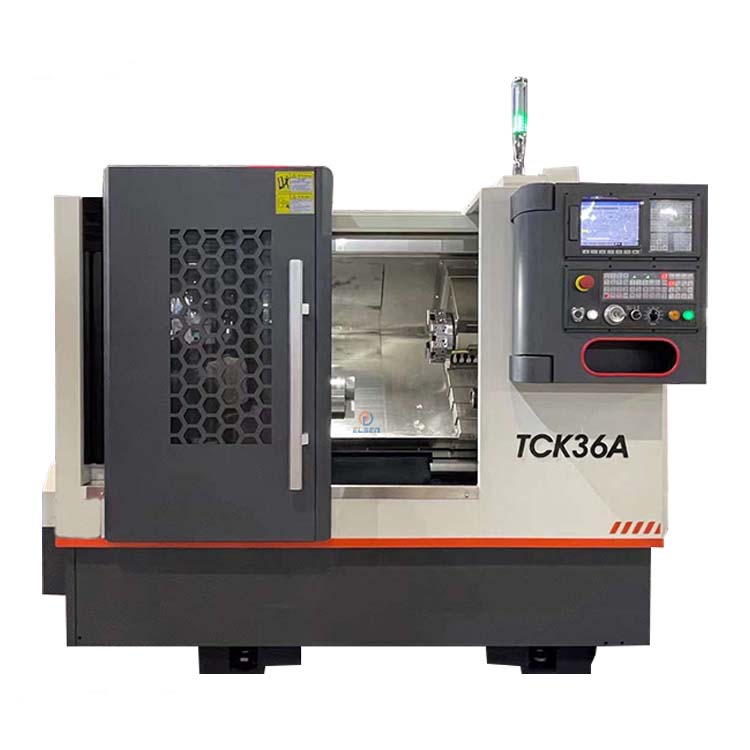

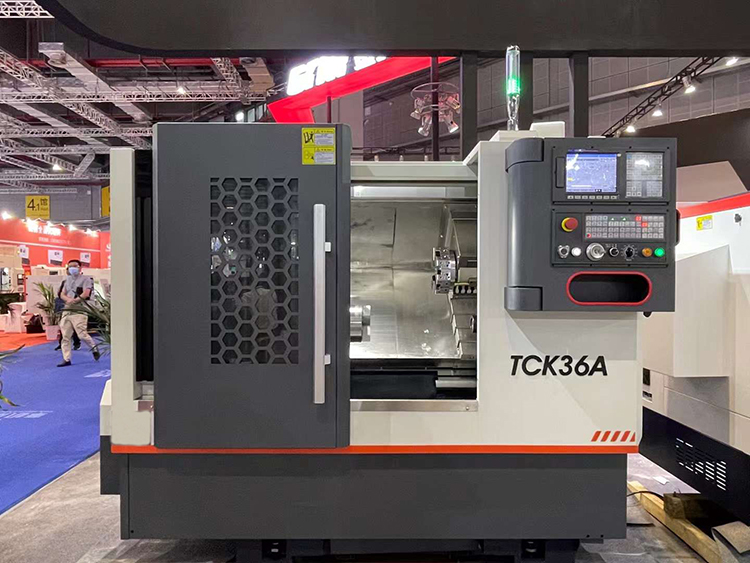

TCK36A
    Publish time 2022-03-21 20:35
TCK36A
Higher accuracy Taiwan linear guideways
Higher speed spindle unit
Higher rigidity cast iron
Integrated automatic lubrication
One-piece casting slant bed cnc lathe
Specification
Unit
TCK36A
Max.swing over bed
mm
360
Max.swing over cross slide
mm
140
Max.processing length
mm
300
X/Z axid travel
mm
x:170 z:350
Spindle speed
rpm
4000
Spindle nose

A2-5
Spindle bore
mm
48
Spindle motor
KW
5.5
X/Z axis servo motor torque
N.m
6/6
X/Z axis rapid traverse
m/min
24/24
Hydraulic tailstock quill dia
mm
65
Hydraulic tailstock quill traverse
mm
70
Hydraulic tailstock quill taper

MT4
Hydraulic tailstock travel
mm
200
Guide form

 Linear guiderway
Tool post from

8/12 Turret post
Machine dimension(L*W*H)
mm
2200x1600x1850
Net.weight(about)
kg
2400
Standard configuration:
1) System:GSK980TC3, servo motor and drive.
2) 3-jaw manual chuck.

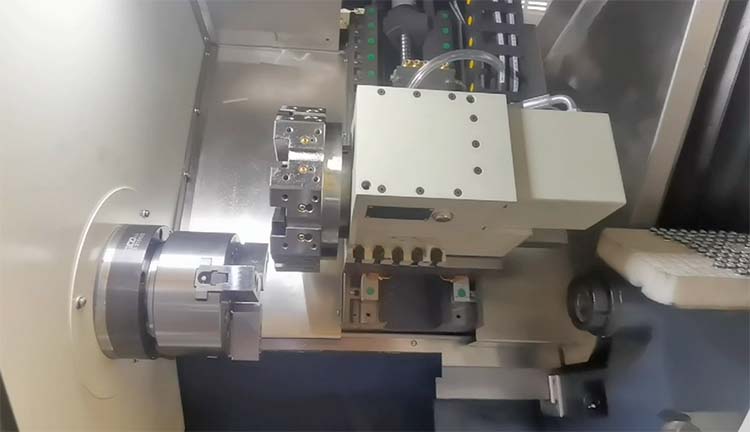

3) 8-station hydraulic turret.
4) Lighting system.
5) Cooling system.
6) Automatic lubrication system.

Optional configuration:
1). CNC system: GSK, Siemens, Fanuc, KND, etc.
2). Hydraulic chuck, pneumatic chuck .
3). Hydraulic tailstock, pneumatic tailstock.
4). Automatic bar feeder.
