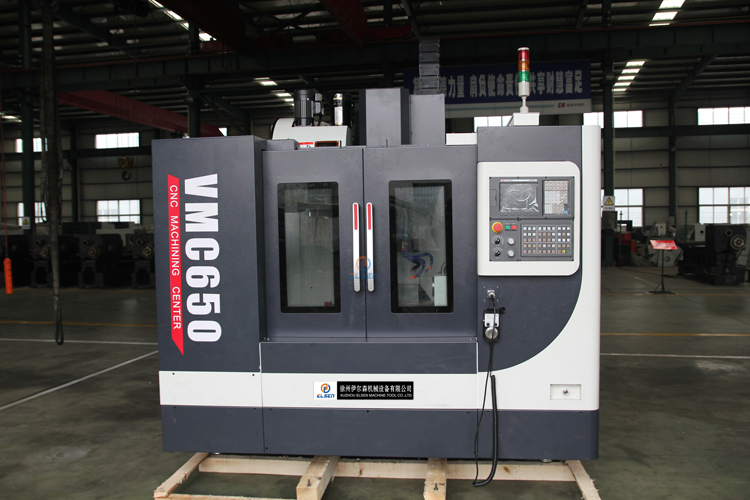

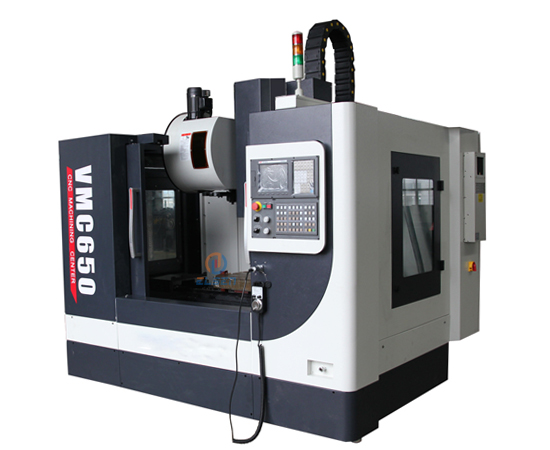

The feed axis machining center for X, Y, Z coordinate control, spindle servo motor powered. can achieve a variety of disc-type, plate type, shell, Cam, mold and other complex parts in a single setup, complete the drilling, milling and processing a variety of processes, boring, expanding, reaming, tapping,etc. suitable for many varieties, small batch production of complex, high-precision machining of parts to better show its superiority.
Specifications
Units
VM650
Table size
mm
800x400
X axis travel
mm
650
Y axis travel
mm
400
Z axis travel
mm
500
Max. worktable load
kg
400
T slot(number-width-pitch)
3-18x125
Max. spindle speed
rpm
8000(Optional:10000 )
Spindle taper
mm
BT40
Main motor power
kw
5.5
X/Y/Z rapid traverse speed
m/min
24/24/20
(Optional:48/48/36 )
Cutting feed speed
mm/min
1-10000
Guide rail type
Linear rail
Distance from spindle axis to column surface
mm
469
Distance between spindle nose and worktable surface
