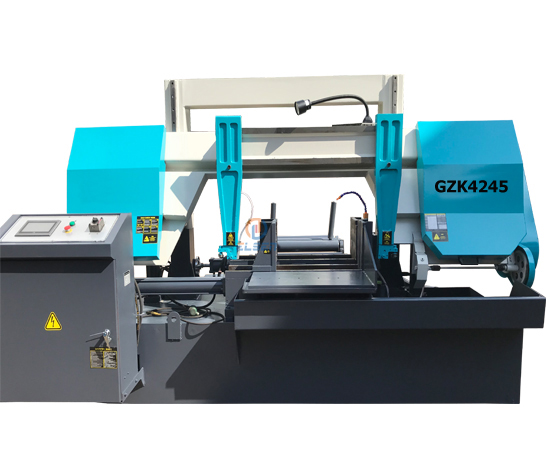

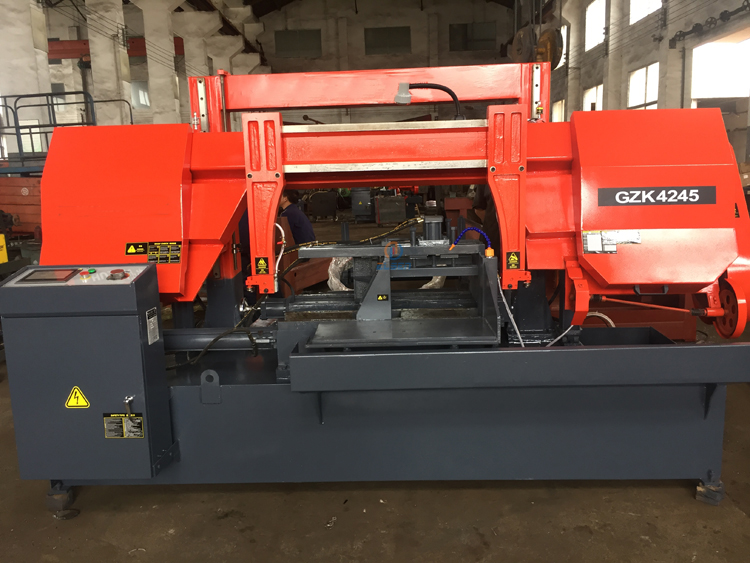

GZ4245
    Publish time 2020-05-12 17:27
GZ4245
1. Human machine interface (HMI) instead of traditional control panel, and sawing parameters are set in figures.

2. PLC (programmable logic controller) for flexible setting and change of sawing modes.

3. CNC Full-automatic Metal Band saw machine Mainly used for cutting various kinds of ferrous metal and non-ferrous metal.
With the advantages of narrow saw cut,saving material , energy-saving , the structure of the machine tools is reasonable and reliable performance and high precision .

4. Adjustable method of feeding speed: Belt speeding with hydraulic pressure Max.length of one-way.


Model

GZ4245



Max. Cutting Diameter

Round: 450

mm

Plate: 450*700

mm

Blade Speed

20.30.37.53

m/min

Blade Size

1.3*41*5500

mm

Motor Output

5.5

kw

Hydraulic Pressure

1.1

kw

Coolant Pump

0.085

kw

Table height

600

mm

Machine Size(L*W*H)

2800*2200*1800

mm

Net /Gross Weight

2500 /2700

kg

Vice clamping

Hydraulic

Blade tensioning form

Maunal

Feeding cut adjust way

Hydraulic stepless

Feeding way

Automatic

Hydraulic cooling way

Wind cooling

Chip conveyor way

Manual

Voltage

380V 50HZ
