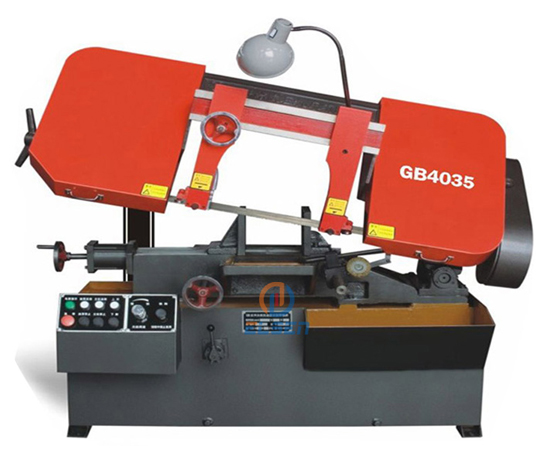

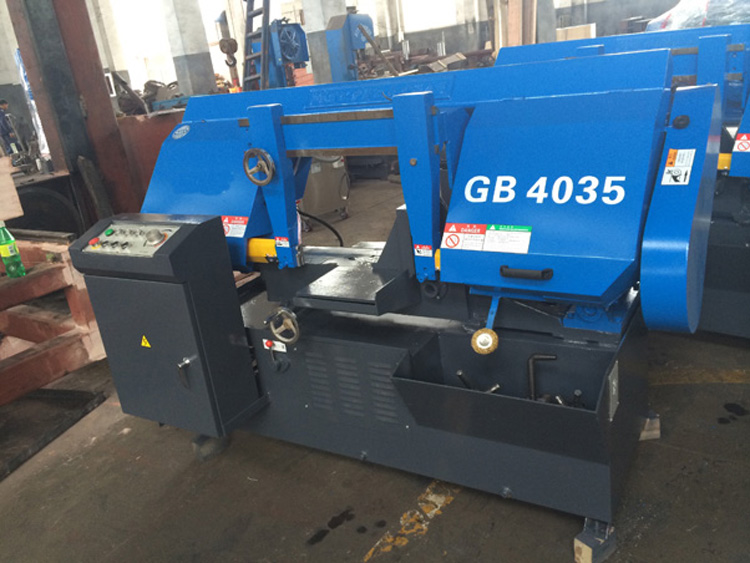

GB4035
    Publish time 2020-05-12 12:41
GB4035

1 The cut-off time of the machine is 4 to5 times that of hack sawing machine

2 The saw kerfs is 2mm narrower than of hack sawing machine.

3 It saves the consumption of electricity from 50%-60% the hack sawing machine with the same work.

4 Hydraulic feeding, step less speed regulation.

Model

GB4035



Max. Cutting Diameter

Round Φ: 350

mm

Plate: 250*400

mm

Blade Speed

30.45.55.80 (Stepless speed)

m/min

Blade Size

1.1*34*4115

mm

Motor Output

3

kw

Hydraulic Pressure

0.37

kw

Coolant Pump

0.04

kw

Machine Size(L*W*H)

2000*880*1250

mm

Net Weight

1000

kg
