Xuzhou Elsen Machine Tool Co., Ltd
1 double-column and double-cylinder structure greatly prolongs the service life of the machine, a unique feature exclusively owned by the company.
2 hydraulic control of cutting speed, step less speed regulation
3 stable sawing with high precision
4 clamping is fulfilled by hydraulic method in combination with manual method, convenient for operation.
|

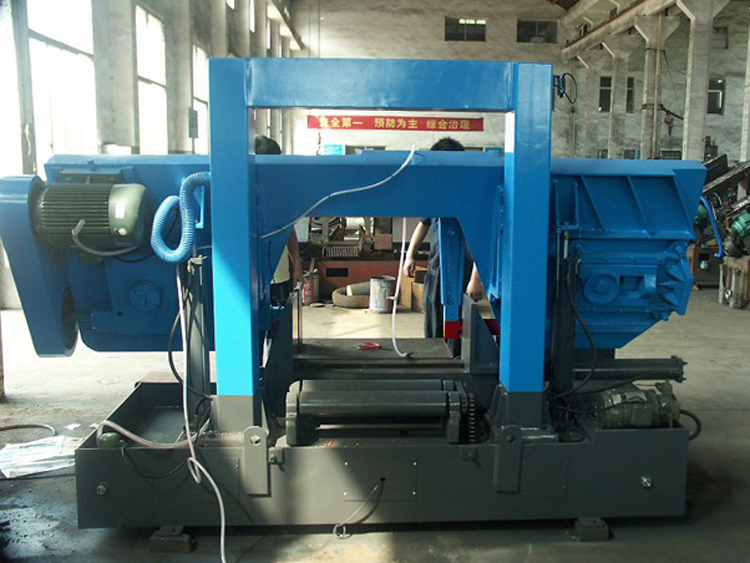

Model |
GB4245 |
|
|
Max. Cutting Diameter |
Round: 450 |
mm |
|
Plate: 450*700 |
mm |
|
|
Blade Speed |
20.30.37.53 |
m/min |
|
Blade Size |
1.3*41*5500 |
mm |
|
Motor Output |
4 |
kw |
|
Hydraulic Pressure |
0.75 |
kw |
|
Coolant Pump |
0.09 |
kw |
|
Table height |
580 |
mm |
|
Machine Size(L*W*H) |
2780*1170*1680 |
mm |
|
Net Weight |
1600 |
kg |
|
Vice clamping |
Hydraulic |
|
|
Blade tensioning form |
Maunal |
|
|
Feeding cut adjust way |
Hydraulic stepless |
|
|
Feeding way |
Automatic |
|
|
Hydraulic cooling way |
Wind cooling |
|
|
Chip conveyor way |
Manual |
|
|
Voltage |
380V 50HZ 3Phase |
|
|

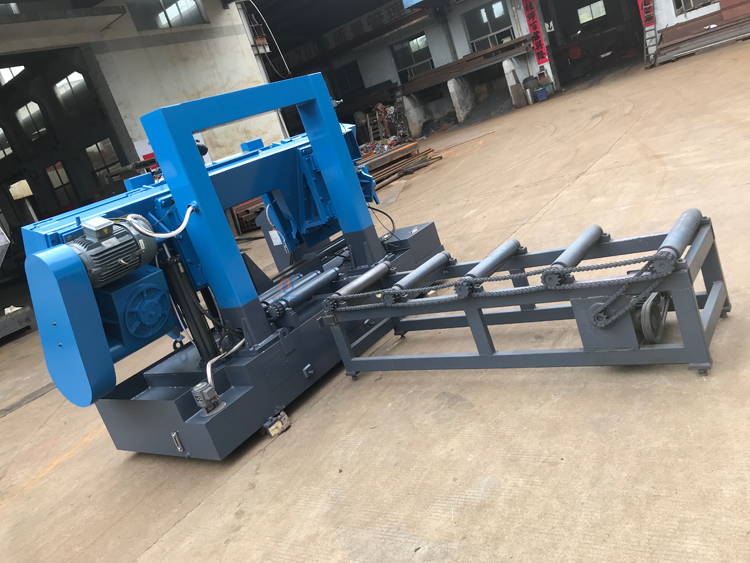

Model |
GB4245 |
|
|
Max. Cutting Diameter |
Round: 450 |
mm |
|
Plate: 450*700 |
mm |
|
|
Blade Speed |
20.30.37.53 |
m/min |
|
Blade Size |
1.3*41*5500 |
mm |
|
Motor Output |
4 |
kw |
|
Hydraulic Pressure |
0.75 |
kw |
|
Coolant Pump |
0.09 |
kw |
|
Table height |
580 |
mm |
|
Machine Size(L*W*H) |
2780*1170*1680 |
mm |
|
Net Weight |
1600 |
kg |
|
Vice clamping |
Hydraulic |
|
|
Blade tensioning form |
Maunal |
|
|
Feeding cut adjust way |
Hydraulic stepless |
|
|
Feeding way |
Automatic |
|
|
Hydraulic cooling way |
Wind cooling |
|
|
Chip conveyor way |
Manual |
|
|
Voltage |
380V 50HZ 3Phase |
|
|

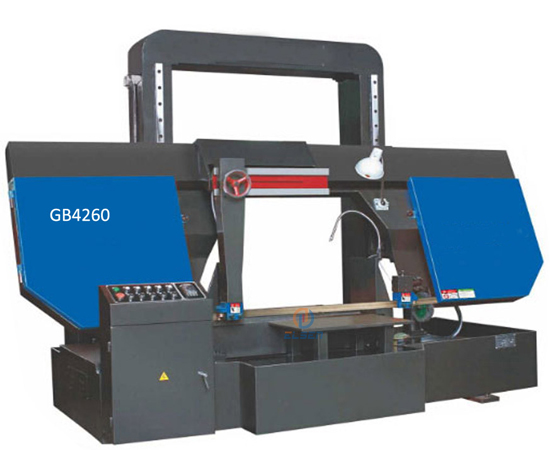

Model |
GB4260 |
|
|
Max. Cutting Diameter |
Round: 600 |
mm |
|
Plate: 600*700 |
mm |
|
|
Blade Speed |
21.31.40.59 |
m/min |
|
Blade Size |
1.3*41*6260 |
mm |
|
Motor Output |
4 |
kw |
|
Hydraulic Pressure |
0.75 |
kw |
|
Coolant Pump |
0.09 |
kw |
|
Machine Size(L*W*H) |
3000*1060*2000 |
mm |
|
Net Weight |
3500 |
kg |
|
Vice clamping |
Hydraulic |
|
|
Blade tensioning form |
Maunal |
|
|
Feeding cut adjust way |
Hydraulic stepless |
|
|
Feeding way |
Automatic |
|
|
Hydraulic cooling way |
Wind cooling |
|
|
Chip conveyor way |
Manual |
|
|
Voltage |
380V 50HZ 3Phase |
|
