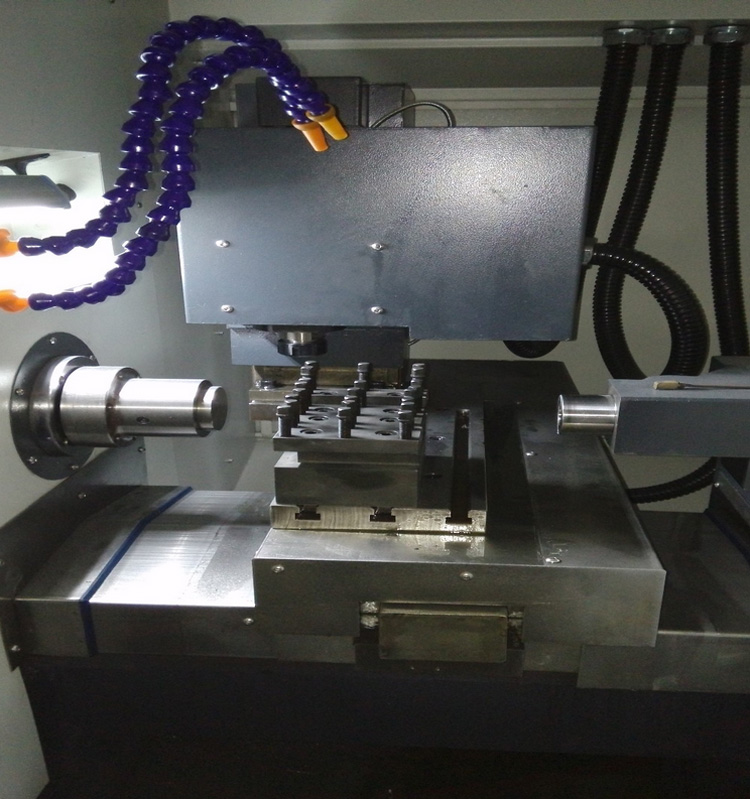

include the tailstock,linear guinder way
♦Linear guideways are protected by stainless steel telescoping guards for maximum protection and extending life.
♦Ballscrew are out in the middle of linear guideway without side friction torque, have a better dynamic property and are more stable over long term.
♦Servo X/Z axis motor. Spindle can be driven with a frequency inverter motor or servo motor.
♦Various control systems, toolposts, and chuck are available to configure machine for the user's individual needs.
♦The tailstock configuration is available on flat bed linear guideway structure, improving accuracy.
| Specifications | Unit | Parameters | |
| Chuck size | inch | 6" | |
| Bed type/guideway | Flat/Linear guider | ||
| Max swing over bed | mm | φ300 | |
| Max length of workpiece | mm | 180 | |
| Max swing over slide | mm | φ135 | |
| Spindle bore | mm | φ48 | φ55 |
| Max dia of through hole | mm | φ40 | φ46 |
| Spindle nose | A2-5 | A2-5 | |
| Spindle speed | rpm | 3000 | 2500 |
| Op:4500 | Op:4000 | ||
| Op:5000 | |||
| Main motor power | kw | 4.0,Op:5.5 | |
| X /Z axis travel | mm | 300/200 | |
| X/Z rapid traverse | m/min | 15/15,Op:25/25 | |
| Type | 4-station toolpost | ||
| Op:gang type tooling | |||
| No.of tool stations | nos | 4+2 | |
| Type of tailstock | Manual,Op:Hydraulic | ||
| Taper of tailstock quill | MT4 | ||
| Travel of tailstock quill | mm | 80 | |
| Power capacity | KVA | 9 | |
| Overall dimension(L*W*H) | mm | 1800x1580x1600 | |
| Weight | kg | 1600 | |
|
Manual 3 Jaw Chuck |
| 4-station turret,plus gang tool plate |
| Linear guider way |
| Auto Lubrication System |
|
Auto Coolant System |
|
Tri-color Alarm light |
| Optional configurations |
| 8/12-station turret |
| Different chucks and different collets |
| Siemens/ Fanuc/Mitusbishi/GSK cnc controller |
|
Chip conveyor |
|
C axis and Live turret |
| Tool setter |
