GB4030
    Publish time 2020-05-12 12:41

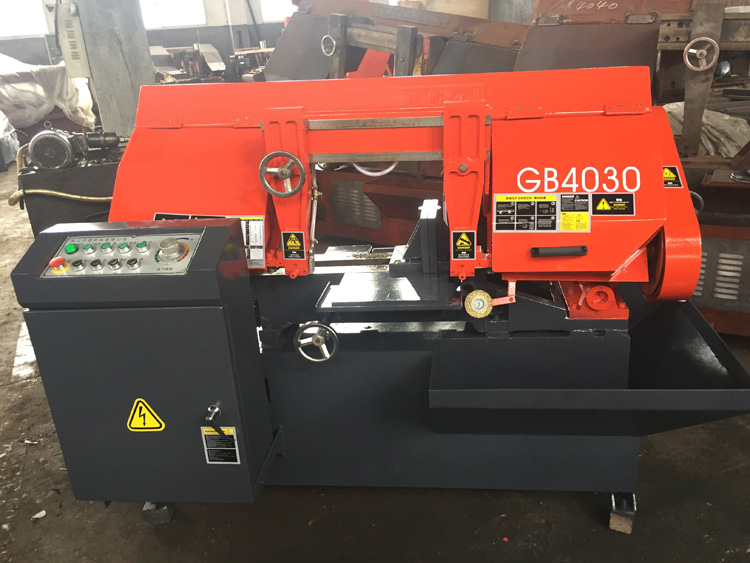

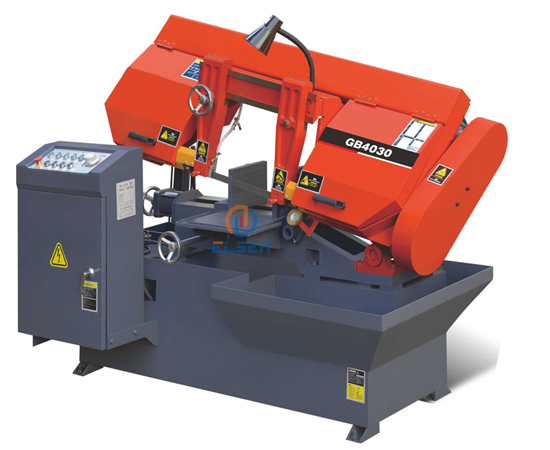

GB4030

1 The cut-off time of the machine is 4 to 5 times that of hack sawing machine

2 The saw kerfs is 2mm narrower than of hack sawing machine.

3 It saves the consumption of electricity from 50%-60% the hack sawing machine with the same work.

4 Hydraulic feeding, step less speed regulation.

Model

GB4030



Max cutting capacity

RoundΦ: 300

mm

Plate : 220*350

mm

Blade speed

27*40*50*71 (Stepless speed)

m/min

Blade size

0.9*27*3350

mm

Main motor

2.2

kw

Hydraulic motor

0.37

kw

Coolant pump

0.04

kw

Machine size(L*W*H)

1750*850*1200

mm

Net weight

800

kg

Voltage

380V  50HZ 3Phase
