Specifications

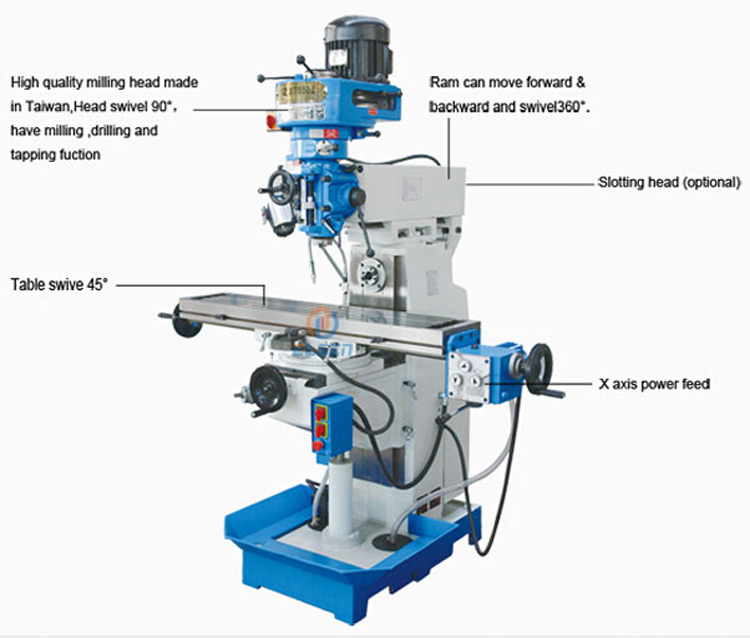

ZX7550Z

Table size(mm)

 800*240

Spindle

Taper(mm)

NT30 R8(NT40)

Drilling dia(mm)

15

Quill traver(mm)

127

Spindle  speeds

Low(r/min)

80,135,210,325,660,1110,1750,2720

Hight(r/min)

160,270,420,650,1320,2220,3500,5400

Main  parts  of size

Distance from spindle to table   surface(mm)

 70-420

 Dirll press head swivels

Left Right

±90°

Before Behind

 ±45°

Main  motor

Voltage

 220V/ 380V/415V

 Frequency

50HZ/60HZ

 Motor

  3HP

  N.W/G.W(kg)

 970/1120

Overall dimensicons(mm)

1290*1140*2100
