Specification

Unit

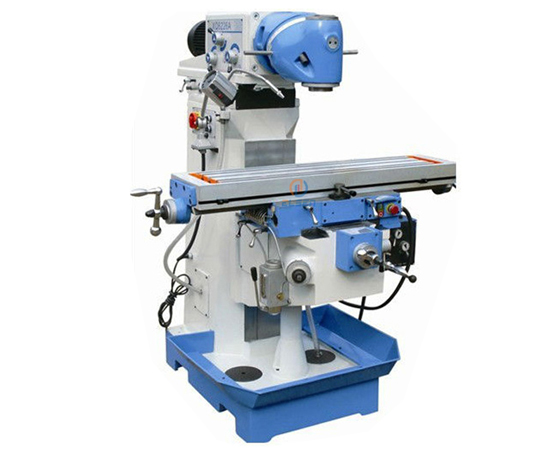

XQ6226A

Table size

mm

1120X260

T slot

no

3

Size ( Width )

mm

14

Centre distance

mm

63

Max. load of Table

kg

250

table Longitudinal travel(manual/auto)

mm

600

table Cross travel  (manual/auto)

mm

270

table Vertical travel(manual/auto)

mm

400

Spindle taper

ISO40

spindle speed /step

rpm

45-1660/11steps

Max.end milling width

mm

125

Max. vertical milling Dia.

mm

25

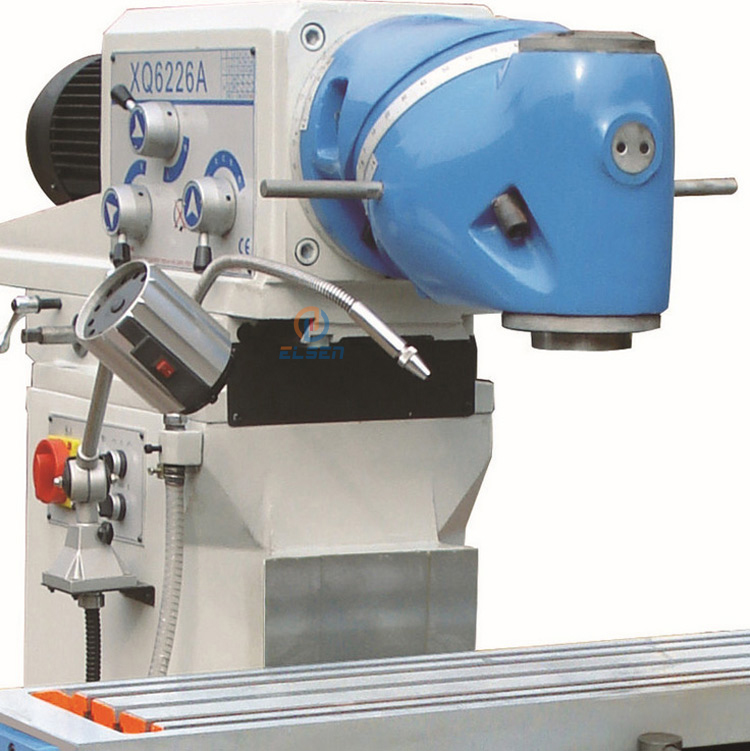

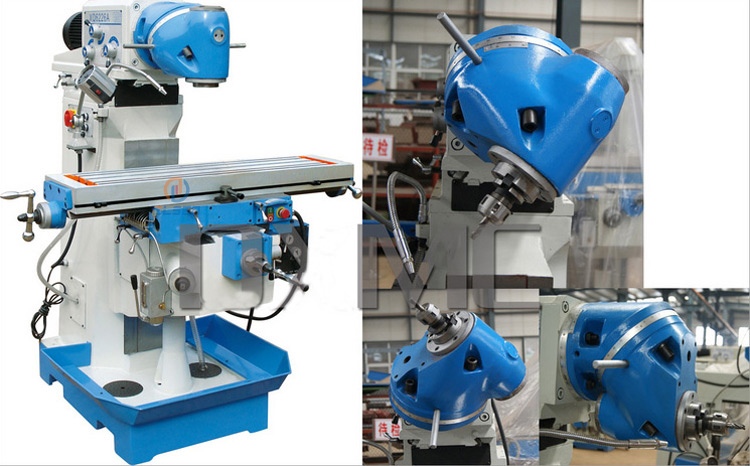

swivel angle of swivel  head

degree

360º

vertical spindle axis to column surface

mm

60-500

vertical spindle nose to table surface

mm

100-480

arm travel

mm

440

Longitudinal/cross feed

mm / min

24-402/9steps

Longitudinal/cross rapid speed

mm / min

402

main motor

kW

2.2

(X/Y/Z) feed motor

kW

0.37(X/Y)

coolant motor

kW

0.04

package dimension

cm

160X152X222 1pc/case

220X152X222 2pcs/case

overall dimension

cm

166x150x173

N/W,G/W

kg

1400/1600
