Xuzhou Elsen Machine Tool Co., Ltd
1.The milling head is with Taiwan 3HP milling head

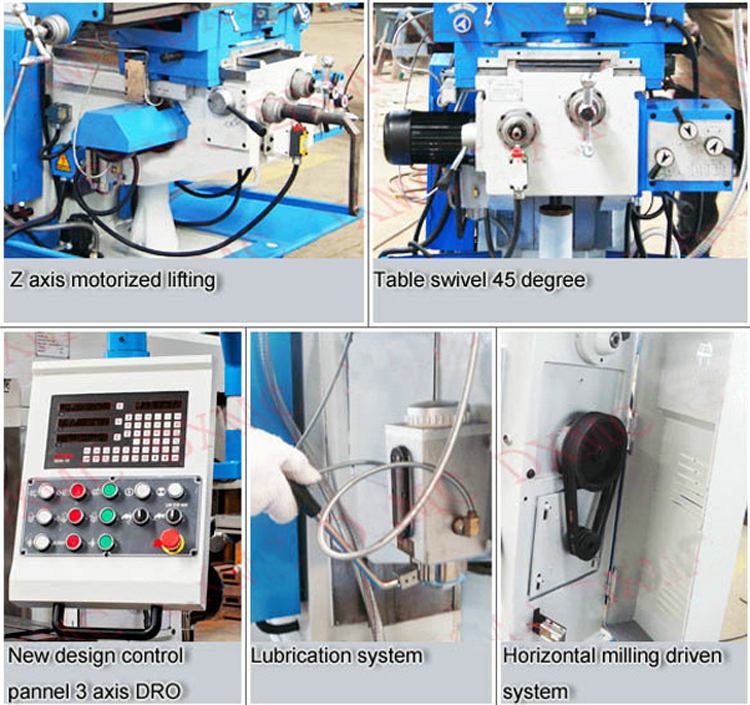

2.X,Y is automatic feed,Z axis motorized lifting and lowering
3.Spindle can swivel +/-45 degrees both left and right side
4.The spindle is belt drive with high speed.
5.The ram can move forward and backward, and swivel 180 degrees
|
Specification |
Unit |
X6332C |
|
Table size |
mm |
1270x320 |
|
T slot no./width/distance |
no |
5/14/70 |
|
Max. load of Table |
kg |
300 |
|
table Longitudinal travel(manual/auto) |
mm |
780 |
|
table Cross travel (manual/auto) |
mm |
300 |
|
table Vertical travel(manual/auto) |
mm |
380 |
|
Spindle taper |
|
ISO40 |
|
spindle speed /step -- Vertical |
rpm |
70-3620/10steps |
|
--Horizontal |
rpm |
60-1350/12steps |
|
Max.drilling dia. |
mm |
30 |
|
Max.end milling width |
mm |
125 |
|
Max. vertical milling Dia. |
mm |
25 |
|
Max.tapping dia. |
mm |
10(steel) |
|
quill travel |
mm |
127 |
|
swivel angle of headstock |
degree |
+/-45º |
|
Distance from vertical spindle axis to column surface |
mm |
150-550 |
|
Distance from vertical spindle nose to table surface |
mm |
120-500 |
|
Distance from horizontal spindle axis to table surface |
mm |
0-350 |
|
Distance from horizontal spindle axis to ram bottom |
mm |
190 |
|
ram travel |
mm |
400 |
|
Longitudinal/cross feed |
mm / min |
15-370/8steps |
|
Vertical/step |
mm/min |
575/1step |
|
Longitudinal/cross rapid speed |
mm / min |
575 |
|
Rapid Traverse vertical |
mm/min |
575 |
|
automatic spindle feed |
|
0.04/0.08/0.15(per rotation) |
|
main motor |
kw |
3.7(V), 2.2(H) |
|
(X/Y/Z) feed motor |
kw |
0.75(X/Y/Z) |
|
coolant motor |
kw |
0.04 |
|
package dimension |
cm |
162X162X225 1pc/case |
|
|
|
226X165X225 1pcs/case |
|
overall dimension |
cm |
172x152x222 |
|
N/W,G/W |
kg |
1650/1850 |
