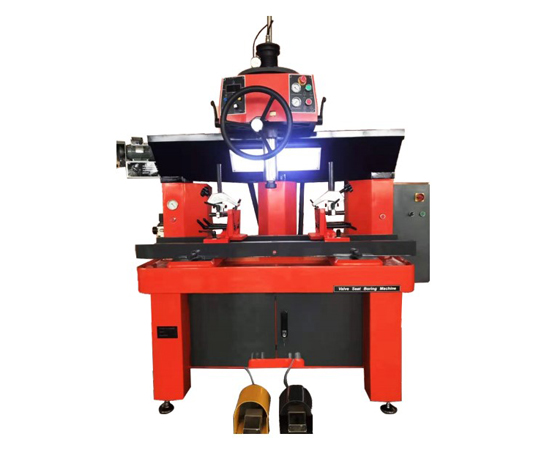

Model

BV90

Type of Drive System

Air / Electric

Max. Length of Cylinder Head

unlimited

Max. Width of Cylinder Head

500 mm

Max. Height of Cylinder Head

450 mm

Max. Boring Dia.

16 – 90 mm

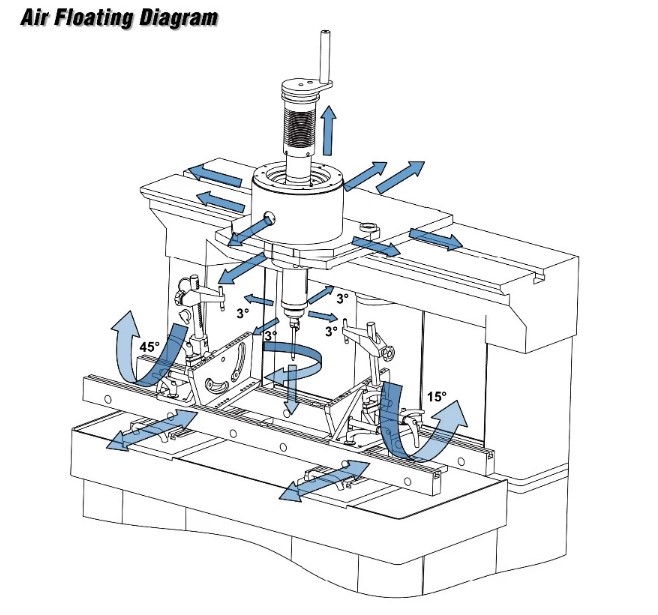

Work Head Longitudinal Floating Travel

990 mm

Work Head Cross Floating Travel

40 mm

Sphere – Cylinder Travel

9 mm

Floating inclination angle of Spindle

±3°

Table Travel

160 mm

Vertical Travel of Spindle

200 mm

Power of Spindle

1.2 kW Spindle Motor

Spindle Speed

100 – 1200 rpm stepless

Power of Tools Grinder

0.18 kW

Tools Grinder Rotation Speed

2800 rpm

Clamper Rotary Angle

+ 42°/ -15°

Required Rated Air Pressure

6 Bar / 85 PSI

Required Max. Air Flow

400 L / Min

Required Continuous Air Flow

60 L / Min

Length of Machine

1685 mm

Width of Machine

1050 mm

Max. Height of Machine

2180 mm

Min. Height of Machine

1980 mm

Roughness of Finishing

Ra 0.6

Package Size ( L×D×H )

1860×1150×2200 mm

N.W.

1500 Kg

G.W.

1800 Kg
