T8216D
    Publish time 2020-04-10 13:12

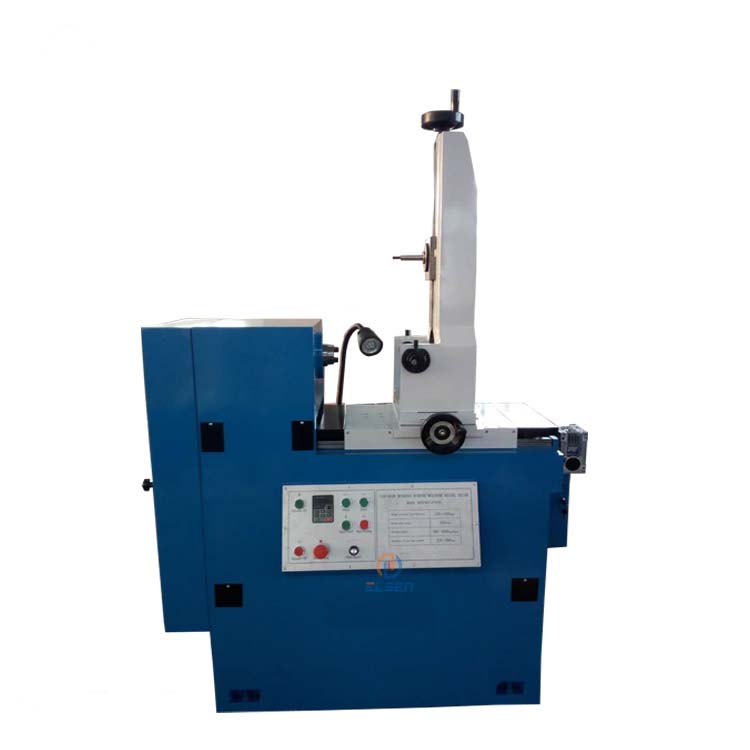

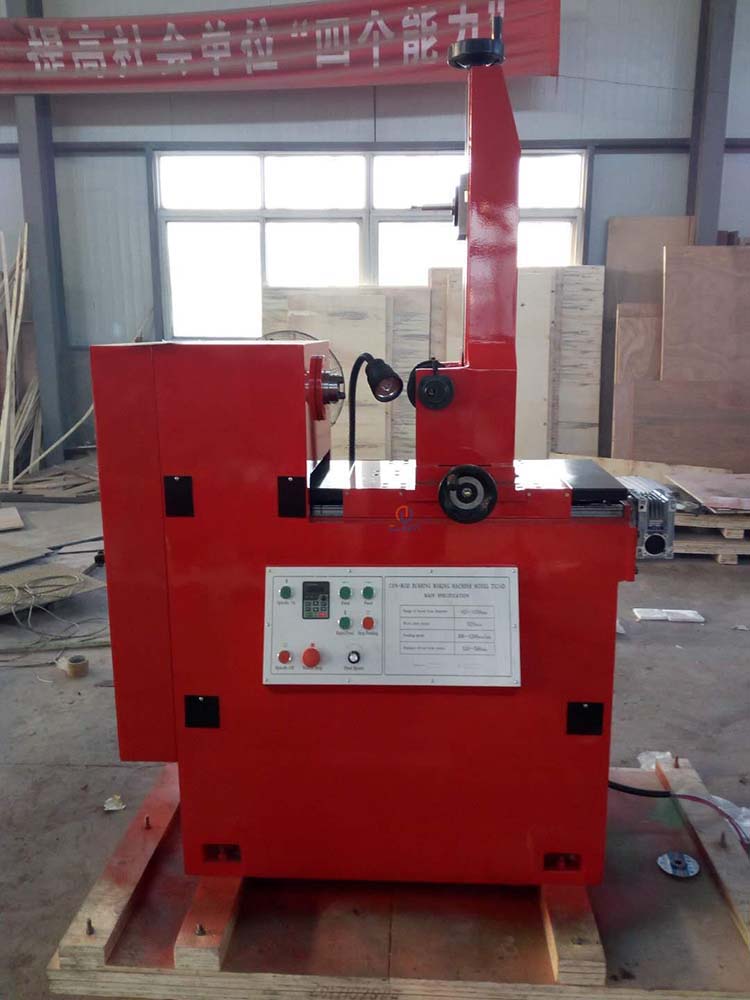

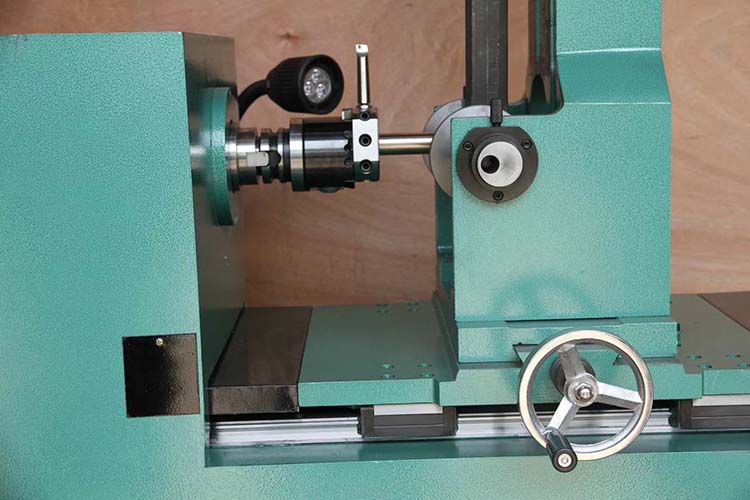

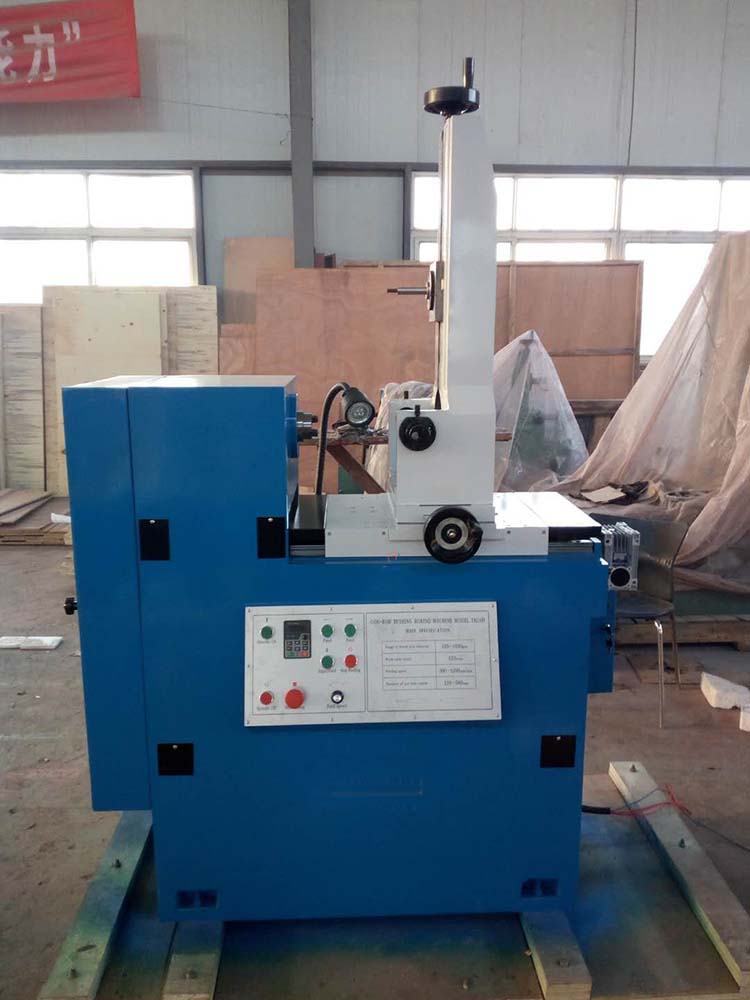

T8216D
1. Con-rod boring machine has good performance, better structure, easy operation and high accuracy and can meet customer’s demand.
2. The machine is mainly used in boring rod bushing hole (rod bushing and copper bush) of diesel and gasoline engine of automobiles and tractors.
3. In case of necessity, rod bushing seat hole can be fine-bored.
4. The rough and fine boring processing for the holes on other parts can be also completed after changing the corresponding clamps.
5. Besides, it has the accessories for centering sectifying tools, boring tools and micro-adjustment tools holder etc.
Specification
T8210D
T8216D
Diameter range of boring hole
Ø16-Ø120 mm
Ø15-Ø150 mm
Distance of rod hole center
110-420 mm
85-600 mm
Longitudinal travel of worktable
240 mm
320 mm
Spindle speed
350, 520, 820, 1120 rpm
140-1200 rpm (infinite speed)
Transverse adjusting amount of fixture
80 mm
80 mm
Feeding speed of worktable
0-320mm/min
0-320mm/min
Traveling speed of working
1800 mm/min
1800 mm/min
Diameter of boring bar (4 class)
14, 16, 24, 40 mm
14, 16, 24,40, 60 mm
Main motor power
0.85 Kw
1.5 Kw(frequency conversion motor)
Motor power of oil pump
0.55kw
0.55kw
Machine size(L×W×H)
1750×900×1950 mm
1800×1000×1950 mm
N.W/G.W
800/1000 kg
1000/1200 kg
