Z5050
    Publish time 2020-02-18 01:08

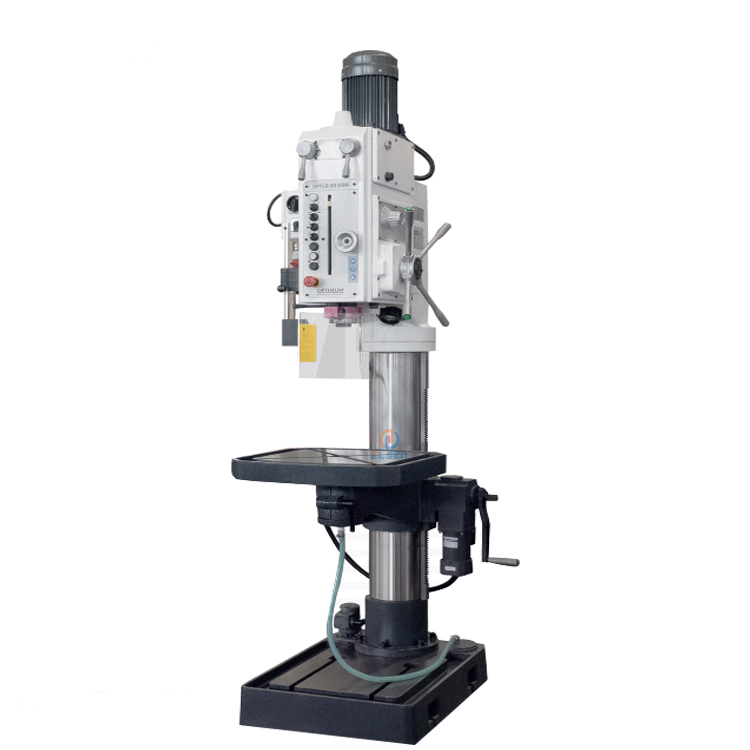

Z5050
  This machine is designed for drilling, counter boring, reaming, tapping, spotfacing, etc. The maximum drilling is 50mm on small or middle sized workpieces. It is widely used in machine works and repair shops for single piece or small lot production, having the features of abundant horsepower and high rigidity when compared with all the others of its kind at home and abroad.
Model
Z5035
Z5040/40A
Z5050
Maximum drilling diameter
35mm
40mm
50mm
Max Spindle travel
180mm
180mm
230mm
Distance from the spindle center to the surface of vertical column
350mm
350mm
375mm
Maximum distance from spindle nose to working table
780mm
780mm
800mm
Maximum distance from spindle nose to base plate working surface
1320mm
1320mm
1300mm
Spindle taper
MT4
MT4
MT4
Spindle speed range
50-1450(r/min)
50-1450(r/min)
54-2090 (r/min)
Width of T slot
18mm
18mm
18mm
Distance of T slot of base
150mm
150mm
280mm
Working table size
560*385mm
/560*560mm
560*385mm
/560*560mm
600*600mm
Base table size
730*500mm
730*500mm
860*600mm
Range of feed
0.1,0.2
0.1,0.2
0.05,0.1,0.15,0.2,0.25,0.3
Main motor power
0.85/1.5kw
0.85/1.5kw
3.0/2.4kw
Cooling pump motor
60W
60W
40W
GW / NW (kg)
545Kg/465Kg
545Kg/465Kg
920Kg / 820Kg
Packing size (cm)
113*70*228cm
113*70*228cm
114cm*75cm*258cm
