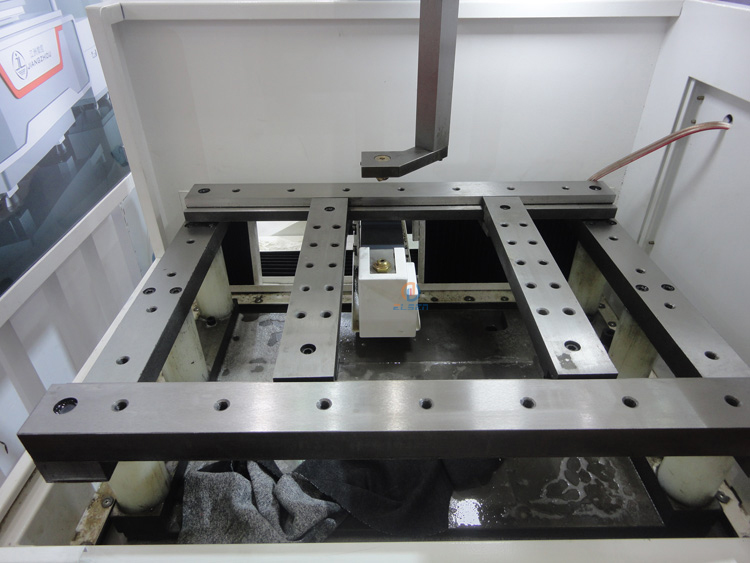

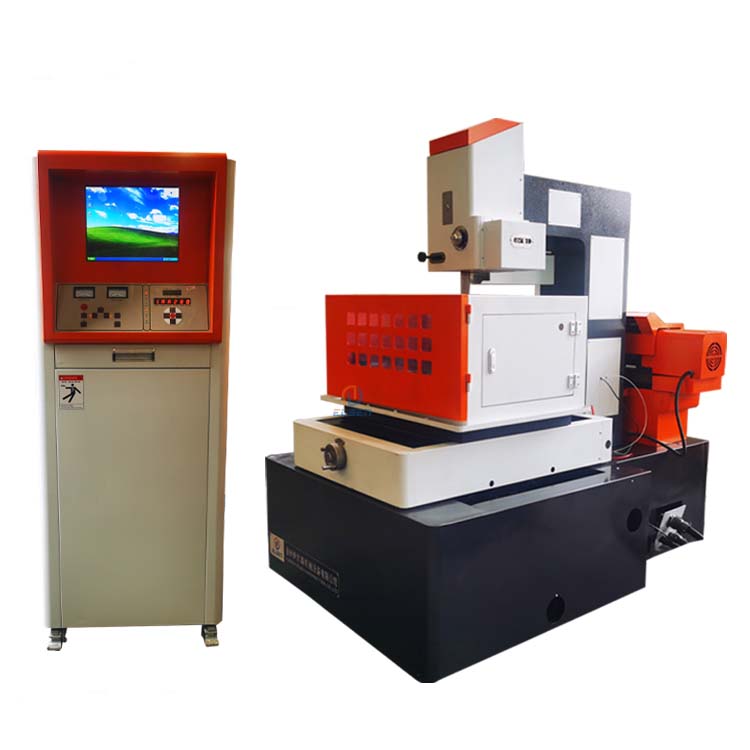

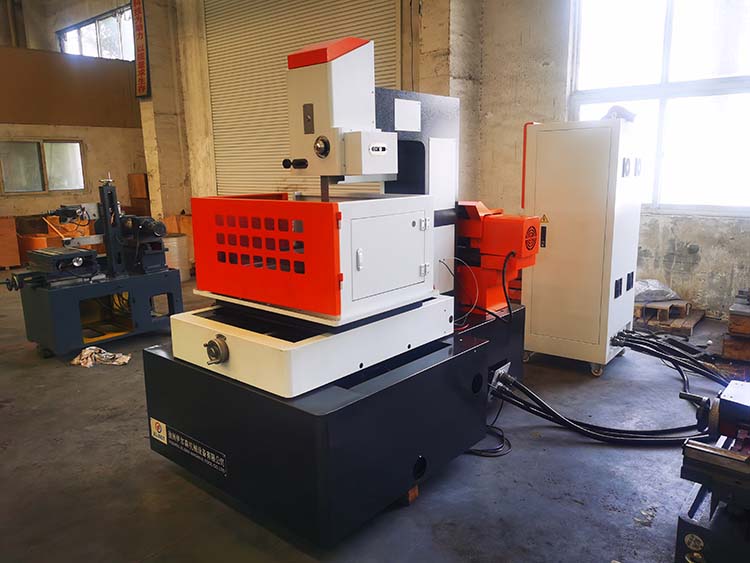

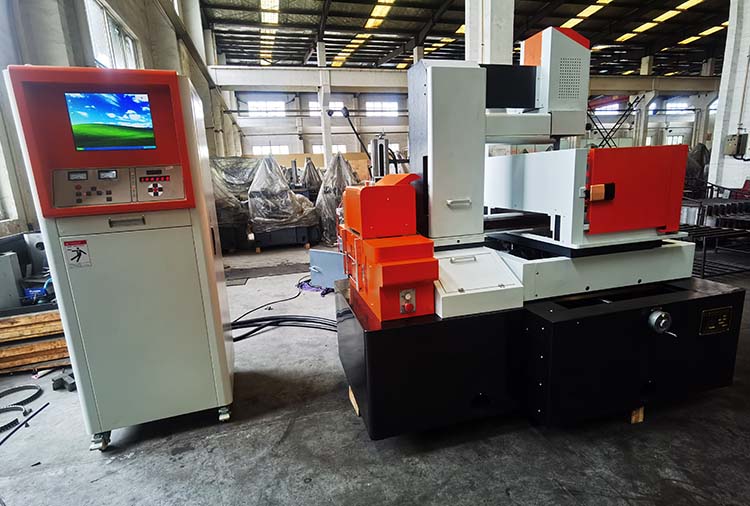

1. The fifth axis has been added based on axis X,Y,U and V to realize workpiece rotary cutting.
2. Adopt Multi-cutting technology of low speed machine and Intelligentize parameter machining.
3. Adopt high frequency power with high efficiency and stablity which makes the Max machining efficiency≥150mm²/min.
4. Work performance approaches low speed wire cut machine. Best surface roughness≤Ra1.5μm.
5. Provide AUTOCUT control system to meet customers' needs.
6. With all functions of Travel changeable type.
Item
| DK7732HC
| DK7740HC
| DK7750HC
|
wortable size(L×W)
| 370×610mm
| 480×720mm
| 580×880mm
|
X,Y axis travel(X×Y)
| 300×400mm
| 400×500mm
| 500×600mm
|
Max.cut thickness Z
| 300mm
| 300mm
| 350mm
|
U,V travel
| 60×60mm
|
Wire diameter range
| Φ0.12-Φ0.18mm
|
Wire feed rate
| 7 levels adjustable
|
Taper angle/Workpiece thickness
| ±6°/60mm
|
Process accuracy(Vertical)
| Multi-cut:10×10×30(square)≤0.006mm
One-cut≤0.012(Multi-cut)(Octagon)≤0.009mm
|
Process roughness
| Multi-cut:Ra≤1.2μm
One-cut:Ra≤2.5μm
|
Motor drive system
| Stepping motor or AC servo motor*(Opition)
|
Screws&Guides(X,Y)
| Precision ball screw/Linear motion guides
|
Dielectric coolant Reservoir capacity
| Complex or water-dissovle special coolant/65L
|
Power supply
| AC 3-Φ380V 2KW
|
Max.table carry
| 300kg
| 400kg
| 500kg
|
Net wt.of machine Body
| 1900kg
| 2200kg
| 2500kg
|
Machine dimension(mm)
| 1800×1250×2120
| 1950×1350×2150
| 2100×1500×2300
|
