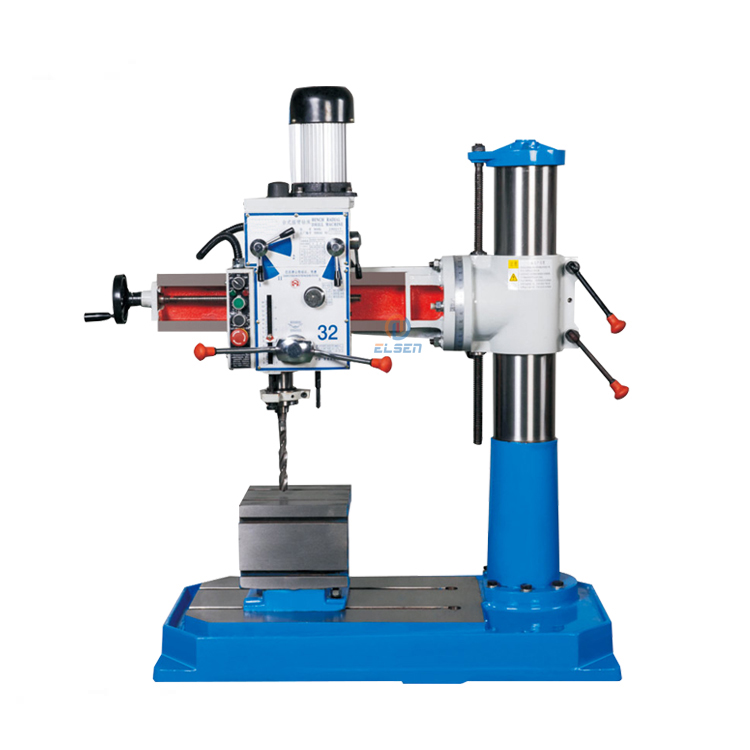

Z3032X7
    Publish time 2022-03-27 17:23
Z3032X7
1. With wide range of speed, with manual、power feeds. The feed of machines are very easily engaged and disengaged at any time.

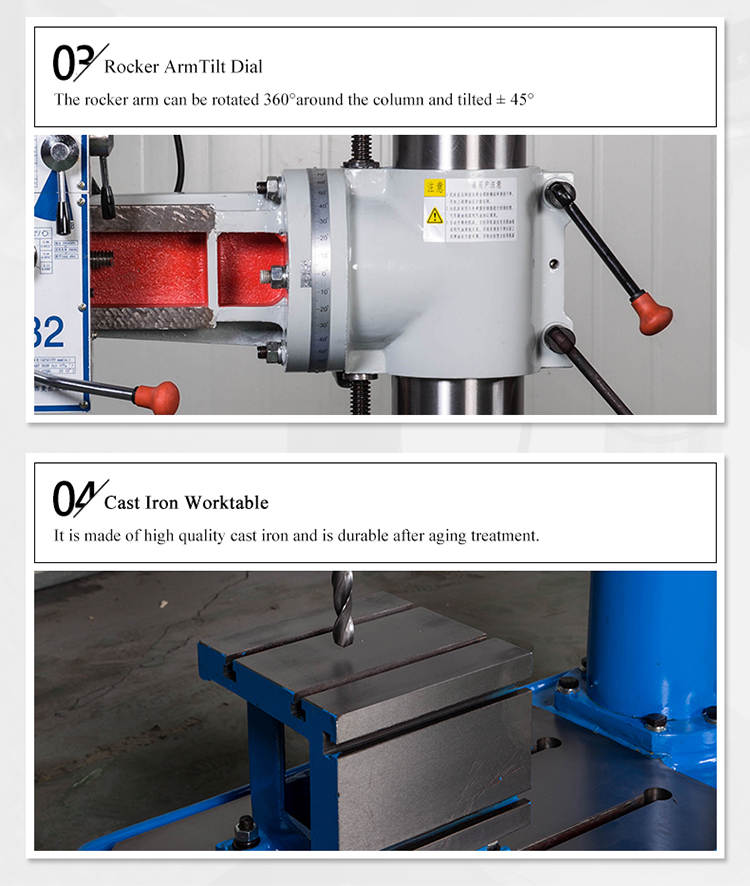

2. The radial arm can rotated and can tilted ±45 degree, it reliable and easy job can be done.
3. Main parts are made by machine center which import from KIA with high precision and efficiency, ensuring reliability and high quality.
4. The machine with small appearance and much function, the machine are widely used for drilling, counter boring, reaming, tapping etc.
Model
Unit
Z3032X7
Max drilling capacity
mm
31.5
Max tapping capacity
mm
Cast iron 20   steel 16
Distance spindle axis to column
mm
300-700
Diameter of column
mm
150
Spindle taper

MT3
Spindle travel
mm
130
Spindle speed range
r/min
100-1600
Spindle speed series

8
Range of spindle feeds
mm/r
0.08、0.14、0.23
Rotary angle of rocker in horizontal plane

360
Distance spindle nose to work base
mm
275-680
Dimension of worktable
mm
250x250x250
Dimension of base
mm
1050x550x120/1200x625x155
Overall of size
mm
1235x550x1195/1235x625x1230
Power of main motor
W
750 or 1100
G.W/N.W
kg
415/385,540/500
Packing dimension
mm
1220x620x1280/1270x690x1370
