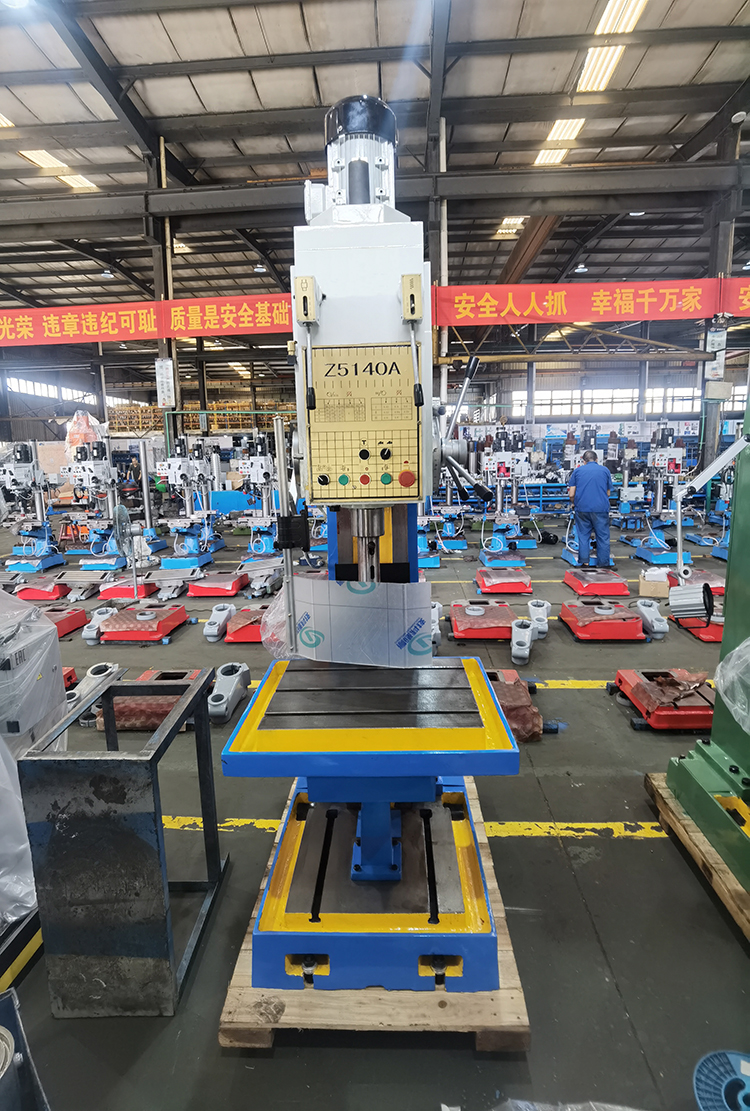

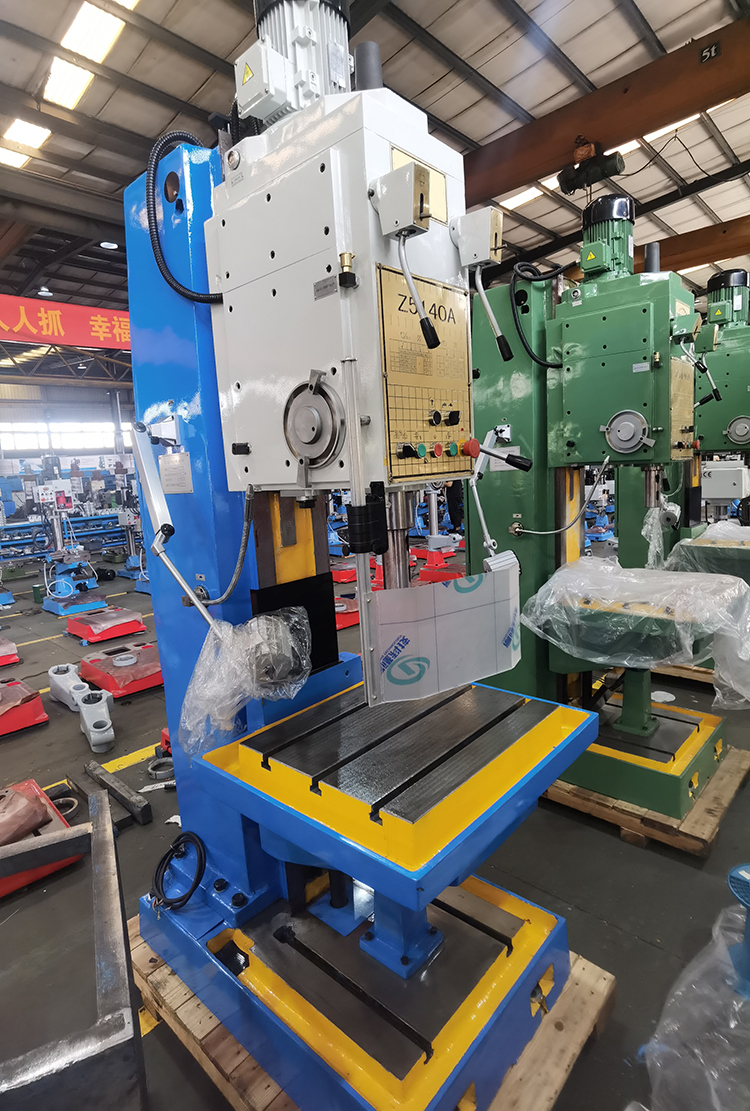

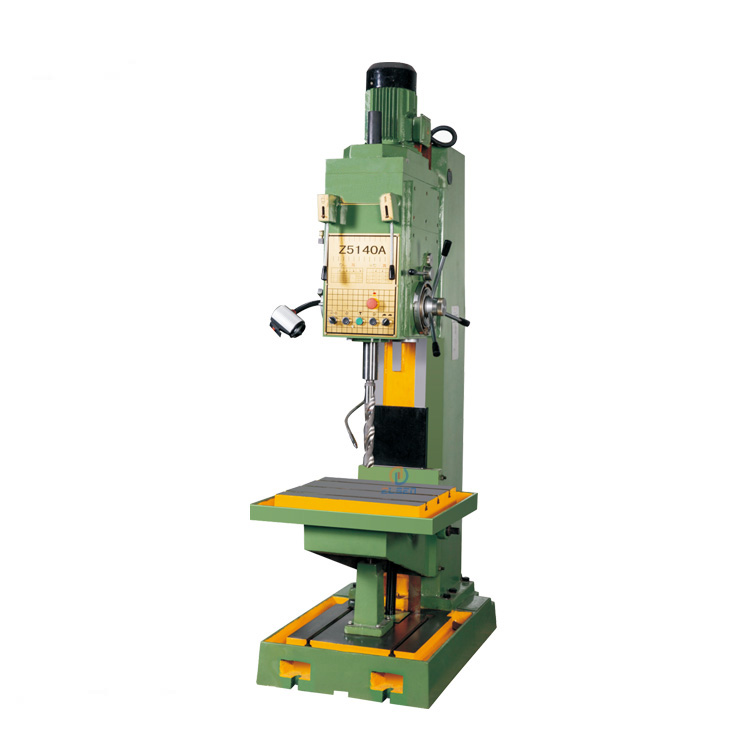

Z5140A
    Publish time 2022-03-27 15:46
Z5140A
Square column vertical drilling machine is a universal general purpose machine. its used for counter-sinking, spot-facing drilling, tapping,boring,reaming,etc. The machine nas catch the flnction of tap-automatically reversing device which is sulfable fr tapping of blind and determined holes. The machine has high efficiency, high accuracy, low noise, wide range of variable speed, centralized controls good looking appearance, easy maintenance and operation.
Model
Unit
Z5140A/50A
Z5140B/50B
Z5163B
Z5180B
Max. drilling capacity
mm
40/50
40/50
63
80
Max. feed resistance
N
16000
30000
30000
Max. permissible spindle torque
N.M
350
800
800
Power of main motor
kw
3/4
3/4
5.5
7.5
Throat distance
mm
335
335
375
375
Spindle taper

MT4/MT5
MT4/MT5
MT5
MT6
Spindle travel
mm
250
250
250
250
Spindle box travel
mm
200
200
250
250
Spindle speed (steps)
r/min
31.5-1400 (12)
31.5-1400 (12)
40-570 (9)
40-570 (9)
Feed rates (steps)
mm/rev
0.056-1.80 (9)
0.056-1.80 (9)
0.1-0.78 (6)
0.1-0.78 (6)
Max travel of table
mm
300
300
300
300
Working surface of table
mm
560x480
560x480
650x550
650x550
Max distance from spindle nose to worktable surface
mm
780/740
830
800
800
Overall dimensions (LxWxH)
mm
1090x905x2535
965x1452x2787
N.W/G.W
kg
1250/1190
1850/1935
Packing dimensions (LxWxH)
mm
122x80x248 or 122x80x224
150x92x280 or 275x101x179
