TJ8563
    Publish time 2022-03-24 20:53

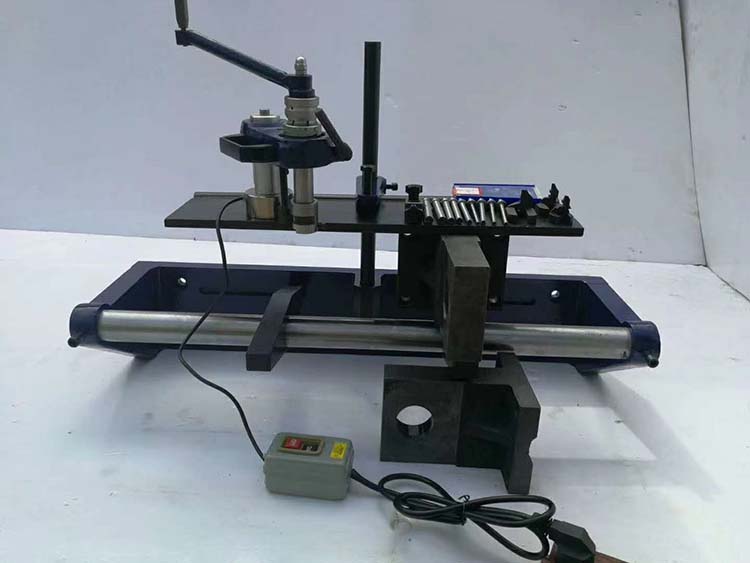

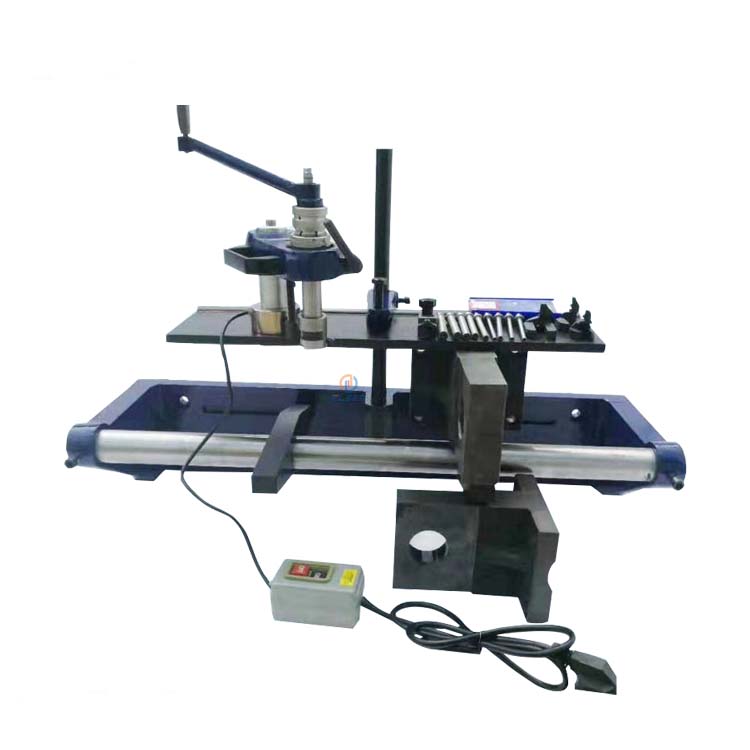

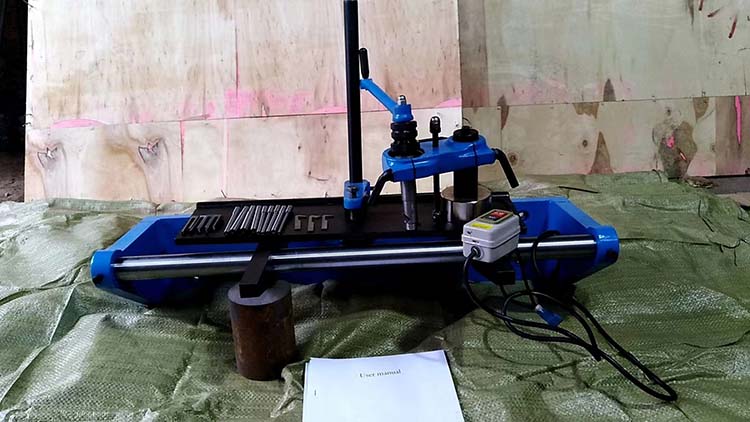

TJ8563
It mainly used for boring and repairing the gas valve seats hole, when equipped with all sorts of clamping device,It can manufacture the gas valve seats hole for cylinder cover with various angles,  when equipped with boring-drilling tolls,It also can bore ,drill, ream the pipe seat hole of gas valve or ream and repair it.
Model
TJ8563
Boring dia. Of valve seats
Φ25-Φ63 mm
Max longitudinal size of cylinder cover
800mm
Spindle travel
10 mm
Suction of electromagnetic base after power (AC 220V)
500 N
Fixed-angle cutter
15°、45°、60°、90°
Locator mandrel
Ø5.5、Ø6、Ø7、Ø8、Ø9、Ø10、Ø11、Ø12
Packing dimensions (L x W x H)
950 x 350 x 600 mm
N.W./G.W.
55/63 kg
