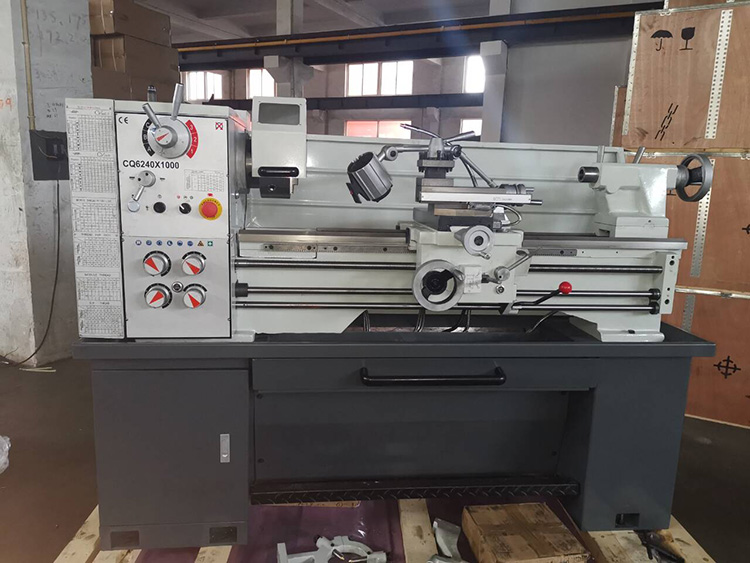

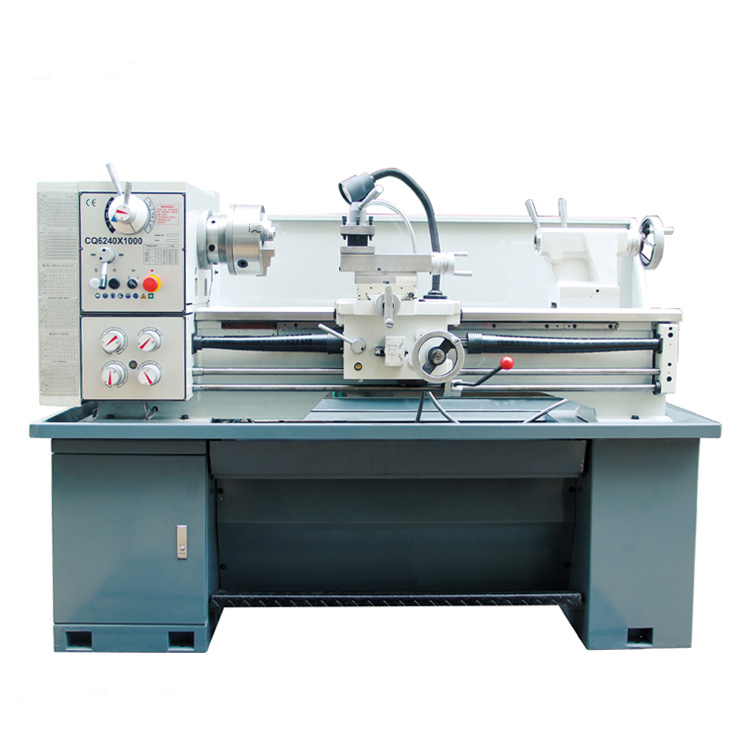

CQ6240
    Publish time 2022-03-24 16:22
CQ6240
MODELS
CQ6240×1000
Swing over bed
400mm
Swing over cross slide
250mm
Swing in gap diameter
520mm
Length between centers
1080mm
Bed width
218mm
Spindle bore
52mm
Taper in nose
MT6
Spindle nose
D1-5
Speeds range
65-1810r.p.m.
Range of longitudinal feeds
0.0527-1.2912mm/rev
Range of cross feeds
0.011-0.276mm/rev
Threads imperial pitches
4-60 T.P.I.
Threads metric pitches
0.4-7mm
Quill taper
MT4
Main motor power
2.2kw or 1.5/2.4kw optional
Coolant pump power
40w
N.W/G.W
640kg/750kg
