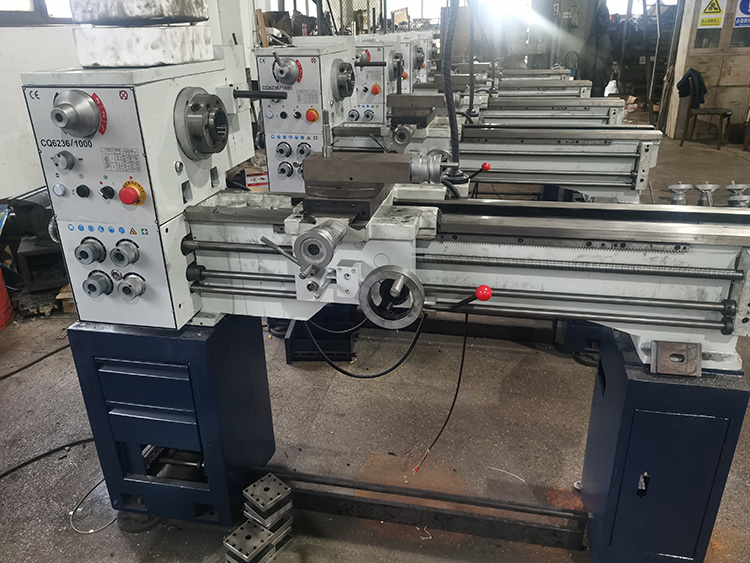

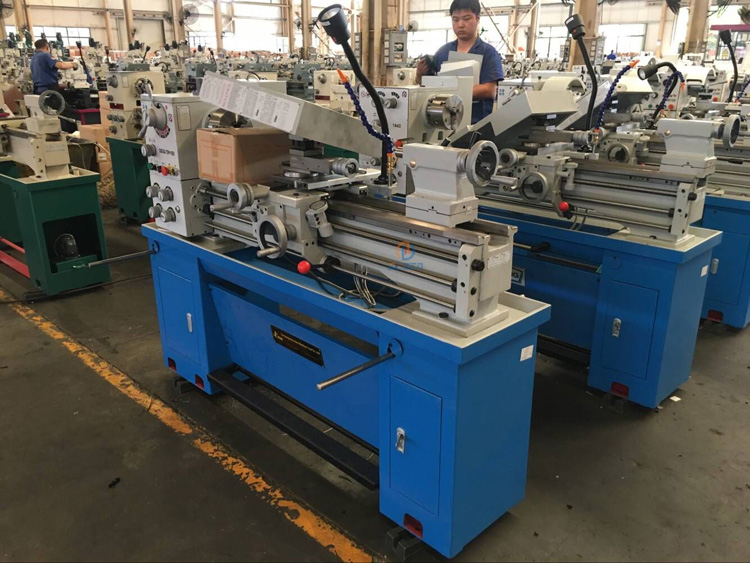

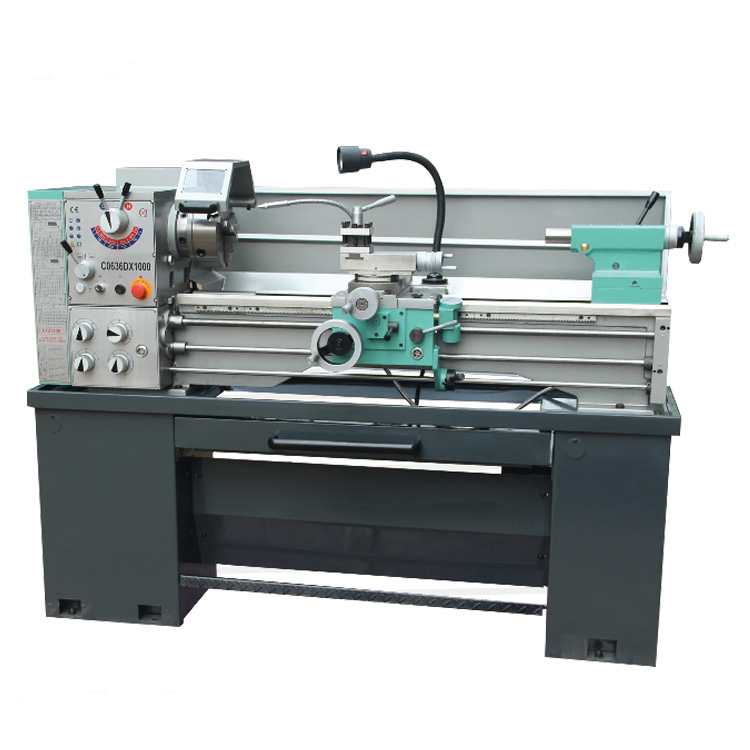

C0636D/CQ6236
    Publish time 2022-03-24 16:17
C0636D/CQ6236
Precision ground hardened bedways
The spindle is supported wish precision roller bearings
Headstock gears are made of high quality steel, ground and hardened
Removable gap is provided for larger diameter work
Easy operation speed change levers
Spindle speed range 70~2000r/min
Two different length beds are available
Easy operating gear box has various feeds and thread cutting function
D1-4 camlock spindle nose
MODELS
           C0636D/CQ6236×1000
Swing over bed
360mm(14")
Swing over cross slide
212mm(8-1/6")
Swing in gap diameter
491mm(9-1/3")
Swing in length
210mm(8-1/4")
Center height
166mm(6-1/2")
Admits between
           1000mm(40")
Bed width
187mm(7-3/8")
Bed length
        1655mm(65-1/8")
Spindle bore
38mm(1-1/2")
Spindle nose
D1-4" or A2-4"
Taper in nose
NO.5 morse
Taper in sleeve
NO.3 morse
Speeds number
8 or 16(pole changeable motor) (optional)
Speeds range
70-2000r.p.m.or 35-2000r.p.m.
(2 speed motor)
Cross slide travel
118mm(4-5/16")
Compound rest travel
68mm(2-11/16")
Lead screw thread
8T.P.I. or 3mm pitch
Feed rod diameter
19mm(3/4")
Cutting tool max section
16mm×16mm(5/8"×5/8")
Threads imperial pitches
36 Nos.8-112 T.P.I. or
(34 Nos.4-56T.P.I)
Threads metric pitches
28 Nos.0.2-5mm pitch or
(26 Nos.0.4-7mm pitch)
Threads diametral pitches
36 Nos.8-112 D.P
Threads module pitches
22 Nos.0.2-3 M.P.
Longitudinal feeds imperial
36 Nos.0.0019-0.0273"/Rev.or
(32 Nos.0.002-0.548"/Rev)
Longitudinal feeds metric
36 Nos.0.050-0.696"/Rev.or
(32 Nos.0.052-0.392mm/Rev)
Cross feeds imperial
36 Nos.0.0006-0.0094"/Rev.or
(32 Nos.0.007-0.0187"/Rev)
Cross feeds metric
36 Nos.0.013-0.188"/Rev.or
(32 Nos.0.014-0.380mm/Rev)
Quill diameter
32mm(1-1/4")(NO.3M.T.)
Quill travel
100mm(3-15/16")(NO.3M.T.)
Quill taper
NO.3 morse
For main motor
1.5KW 3PH or 1PH
