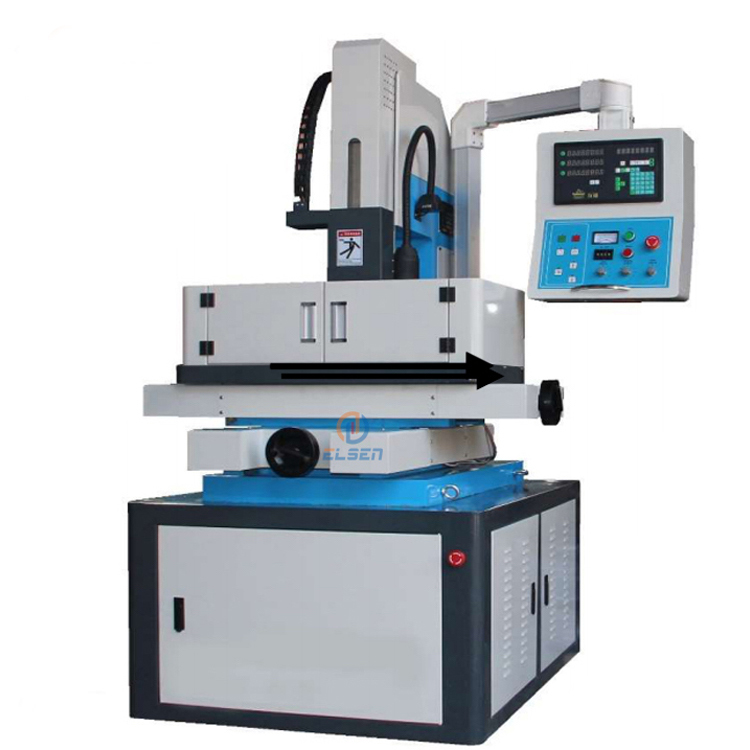

DD703.30A Servo Motor
    Publish time 2022-03-22 19:53
DD703.30A Servo Motor
1. Drilling diameter from 0.2mm to 3mm, even 0.15mm.
2. Auto deep control, blind hole can also be maken.
3. XYZ linear rail, XY with motor for fix position.
4. Can drill on oblique and curved surface directly.
5. Servo motor for Z axis, improved return speed.
6. XY with DRO, optical linear rule and digital read out (standard).
7. Z axis DRO, with depth setting function (optional).
8. Steel water protection cover.
9. Swivel lever for operating panel.
10. City water or pure water as coolant, low cost and no pollution.
Model
DD703.30A
DD703.40A
Electrode diameter(mm)
Φ0.2-Φ3.0
Φ0.2-Φ3.0
Spindle stroke(mm)
300
400
Working stroke Z axis(mm)
300
300
Max.adjusting speed of spindle(mm)
200
200
Spindle rotating speed(mm/min)
20-120
20-120
Working table size(mm)
360x480
780x540
X-Y stroke(mm)
300x400
400x500
Max.process current(A)
30
30
Max.output power(W)
3.5
3.5
Power (V/Hz)
380/50
380/50
Capacity of working fluid (L)
25
25
Max.pressure of working fluid(MPa)
7
7
Dimension(L×W×H)(mm)
1060×750×1700
1600x1300x1800
Weight(kg)
650
1400
