PX1
    Publish time 2022-03-21 22:20
PX1

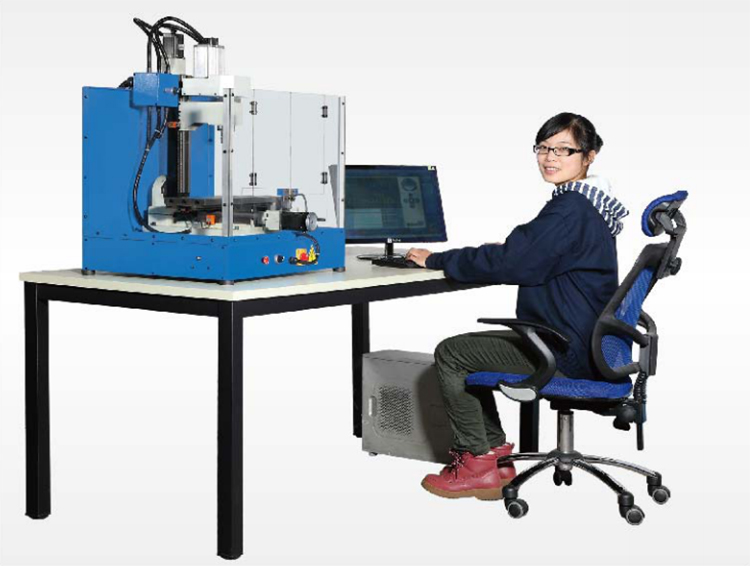

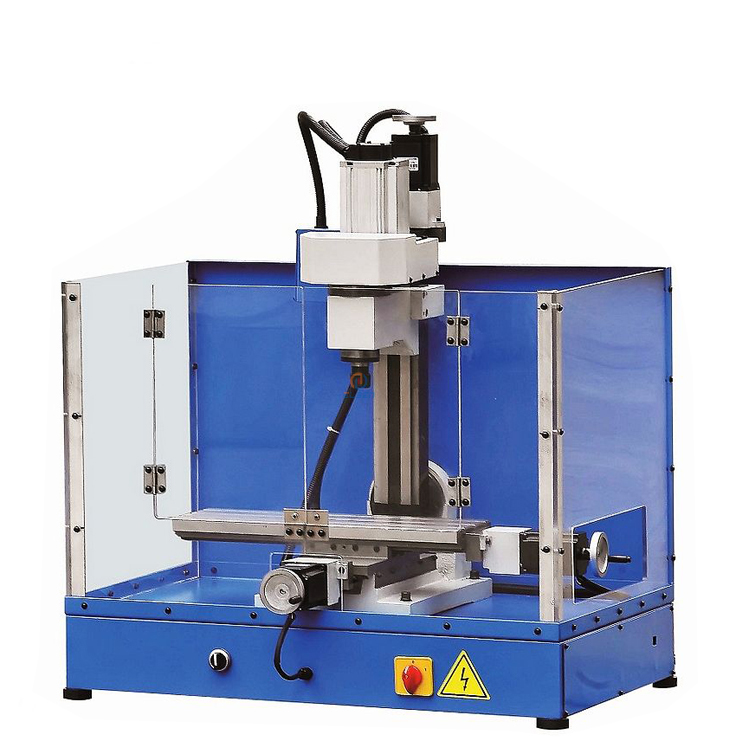

PX1 -SIEG is a precision milling machine together with CNC and manual. Transparent cover provides a good visual effect. The control system based on PC, via Ethernet it can connect the computer directly. Convenient installation and operation is simple, it is very suitable for small parts processing, and school teaching demonstration and training. At the same time, remove the CNC system.
 PX1 completely can do a single manual machine tools. Use the whole machine tools to open the door for outage, the design is safe and reasonable and the cost is low.


TABLE
Table size
400×145mm
T slot (amount×width×distance)
3×8mm×45mm
Max. load
20kg




TRAVEL
X travel
230mm
Y travel
120mm
Z travel
230mm
Spindle nose to table
45mm-275mm
Spindle center to column
140mm


SPINDLE
Spindle taper
ER16
Spindle motor
500W
Spindle speed
300-20000r/min



FEED
The max moving speed
300mm/min
The max feeding speed
200mm/min
Power of X/Y
1.35 Nm
Power of Z
1.35 Nm

ACCURACY
Positioning accuracy
0.015mm
Repeatability accuracy
0.01mm



OTHERS
Power
230/120V
Weight（NW/GW）
90/120kg
Overall dimension
560×680×800mm
Packing size
660×780×900mm
