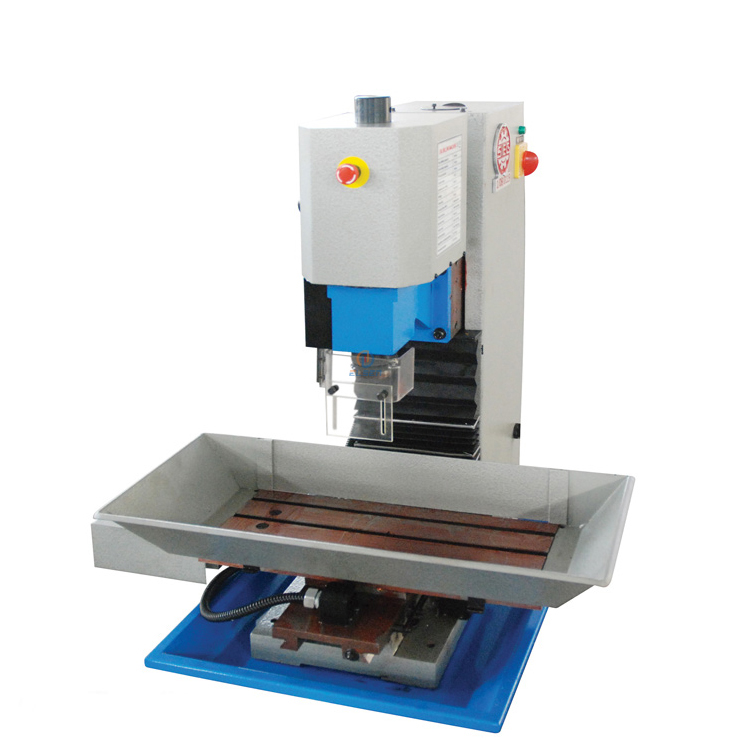

KX1
    Publish time 2022-03-21 22:19
KX1


TABLE
Table size
400×125mm
T slot (amount×width×distance)
3×8×35mm
Max. load
20kg




TRAVEL
X travel
260mm
Y travel
110mm
Z travel
180mm
Spindle nose to table
60-240mm
Spindle center to column
125mm


SPINDLE
Spindle taper
MT2
Spindle motor
500w
Spindle speed
100-7000r/min



FEED
The max moving speed
2000mm/min
The max feeding speed
500mm/min
Power of X/Y
1.35 Nm
Power of Z
2.2Nm

ACCURACY
Positioning accuracy
0.015mm
Repeatability accuracy
0.01mm



OTHERS
Power
230/120V
Weight（NW/GW）
280/340kg
Overall dimension
1040×860×940mm
Packing size
1170×960×1100mm
