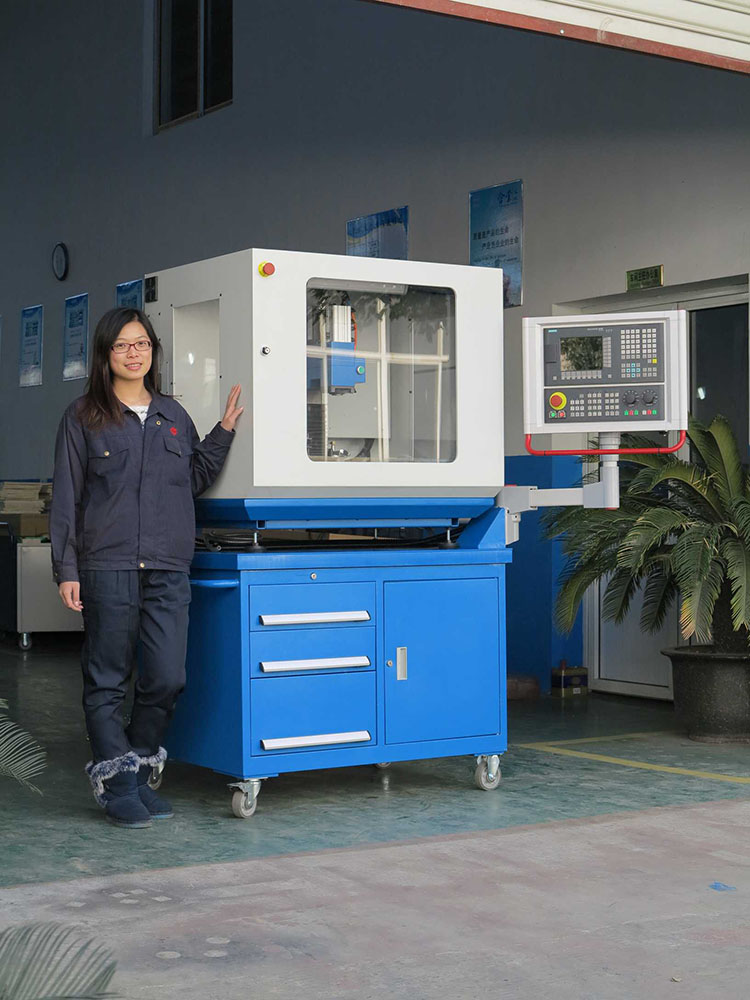

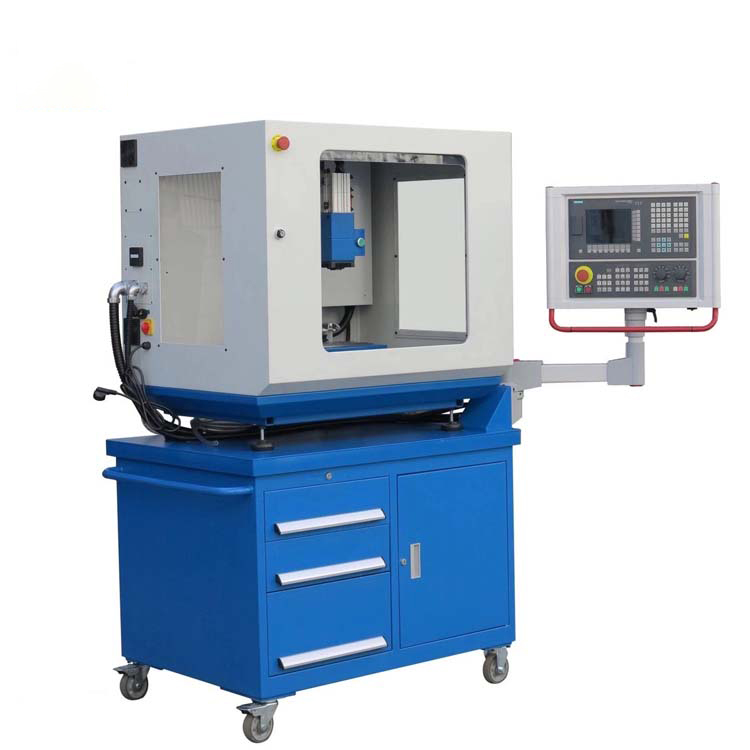

iKX1-SIEMENS808D
    Publish time 2022-03-21 22:15
iKX1-SIEMENS808D


TABLE
Table size
400×125mm
T slot (amount×width×distance)
3×12×40mm
Max. load
20kg




TRAVEL
X travel
260mm
Y travel
152mm
Z travel
180mm
Spindle nose to table
60-240mm
Spindle center to column
200mm


SPINDLE
Spindle taper
ISO20
Spindle motor
1000w
Spindle speed
100-5000r/min

FEED
The max moving speed
2000mm/min
Power of X/Y
1.35 Nm
Power of Z
3.1Nm



TOOL CHANGER
Tool number
4
Max.tool diameter
10mm
Max.tool length
110mm
Max.tool weight
0.5kg
Time of tool changing
10s

     ACCURACY
Positioning accuracy
0.015mm
Repeatability accuracy
0.01mm




      OTHERS
Pneumatic supply
0.6 MPa
Power
230V/120V
Weight（NW/GW）
280/340kg
Overall dimension
1040×860×940mm
Packing size
1170×960×1100mm
