KX3S
    Publish time 2022-03-21 22:14

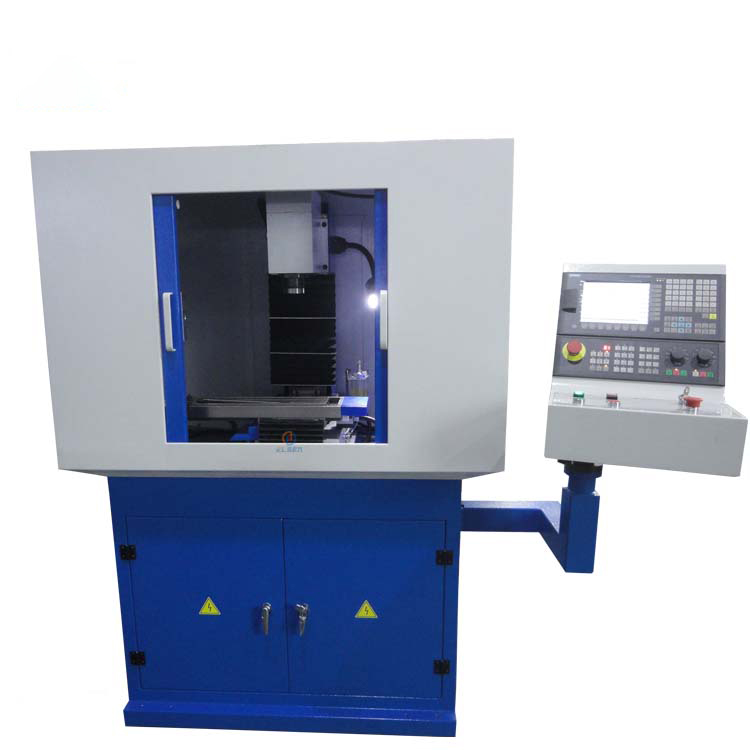

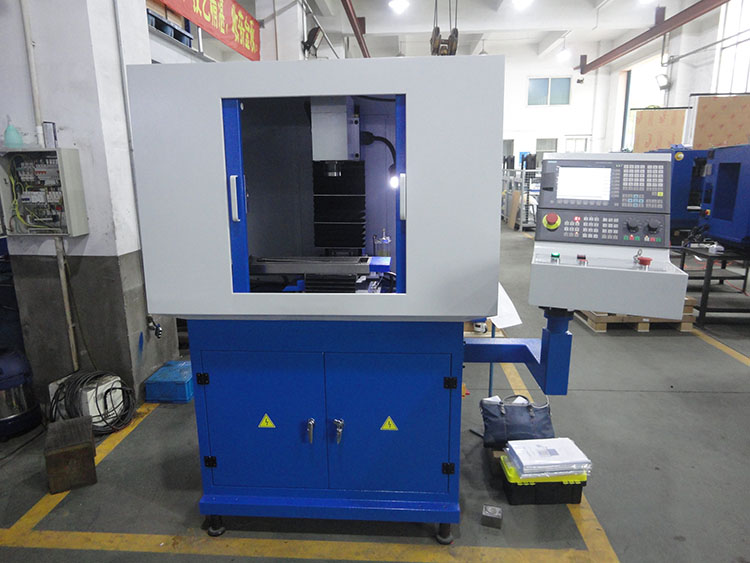

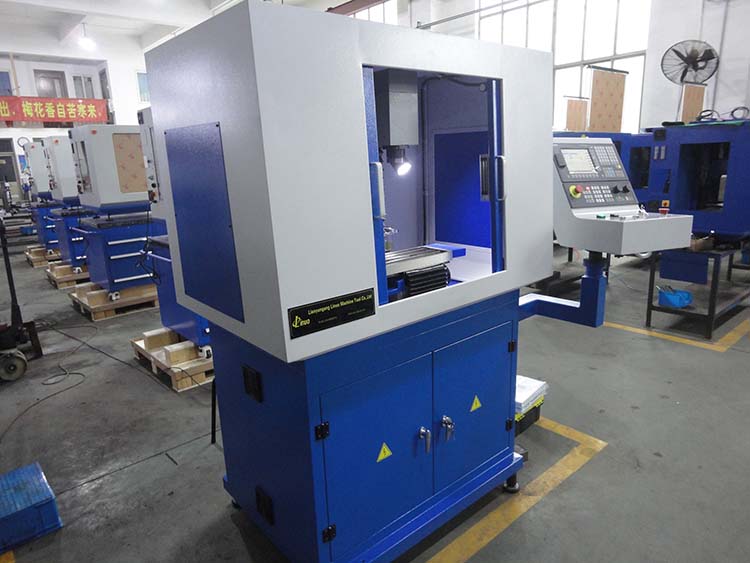

KX3S
It is the model in small vertical milling machine, provide clients with high quality products with the low cost investment. 5000 RPM spindle speed , ensure the maximum rigidity, high precision milling. The advanced numerical control software can work out high quality parts in the shortest possible time. It is controlled by an ordinary computer, price moderate and easy operation. It is the most cost-effective small brick vertical milling machine on the market at present.

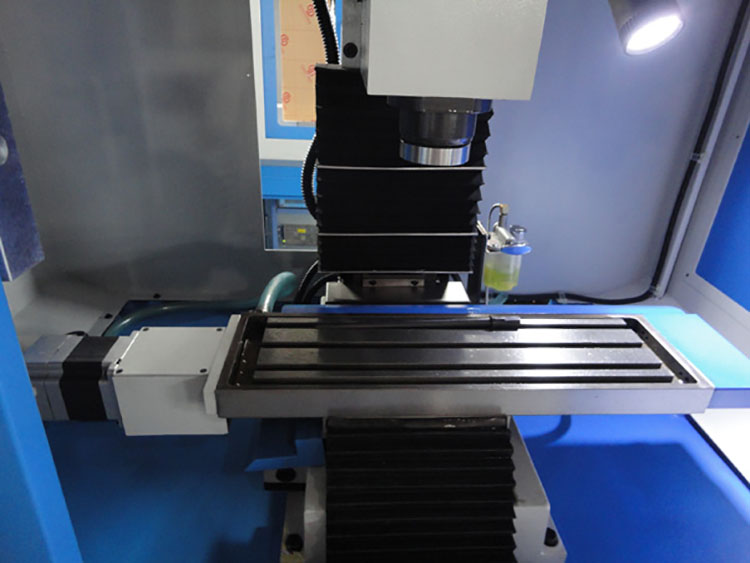

TABLE
Table size
550×160mm
T slot (amount×width×distance)
3×12×43mm
Max. load
30kg




TRAVEL
X travel
280mm
Y travel
120mm
Z travel
270mm
Spindle nose to table
80-350mm
Spindle center to column
200mm


SPINDLE
Spindle taper
MT3/NT3/R8
Spindle motor
1000w
Spindle speed
100-5000r/min



FEED(STEPPER)
The max moving speed
2000mm/min
The max feeding speed
500mm/min
Power of X/Y
4 Nm
Power of Z
6 Nm



FEED(SERVO)
The max moving speed
5000mm/min
The max feeding speed
1000mm/min
Power of X/Y
400W
Power of Z
750W

ACCURACY
Positioning accuracy
0.015mm
Repeatability accuracy
0.01mm



OTHERS
Power
230/120V
Weight（NW/GW）
380/460kg
Overall dimension
1280×895×1845mm
Packing size
1420×1060×2035mm
