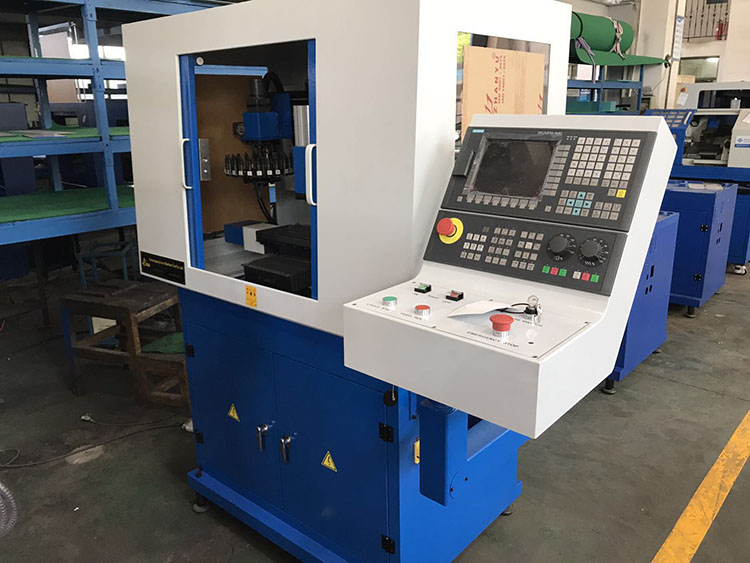

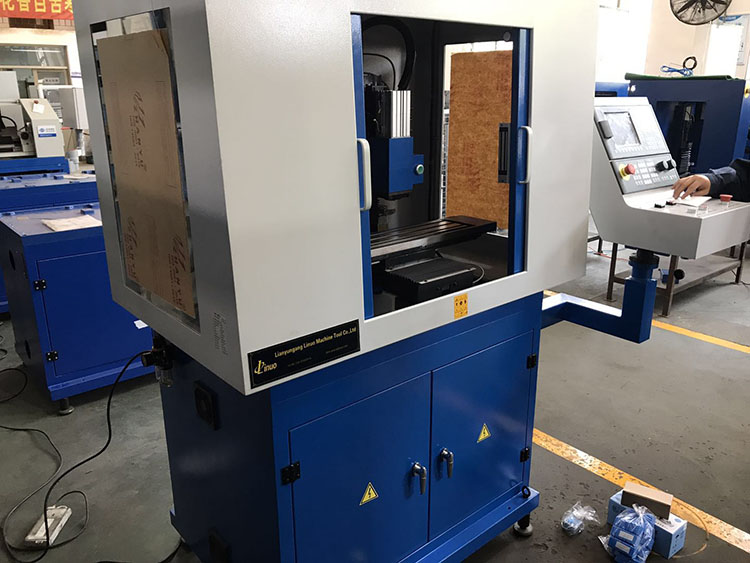

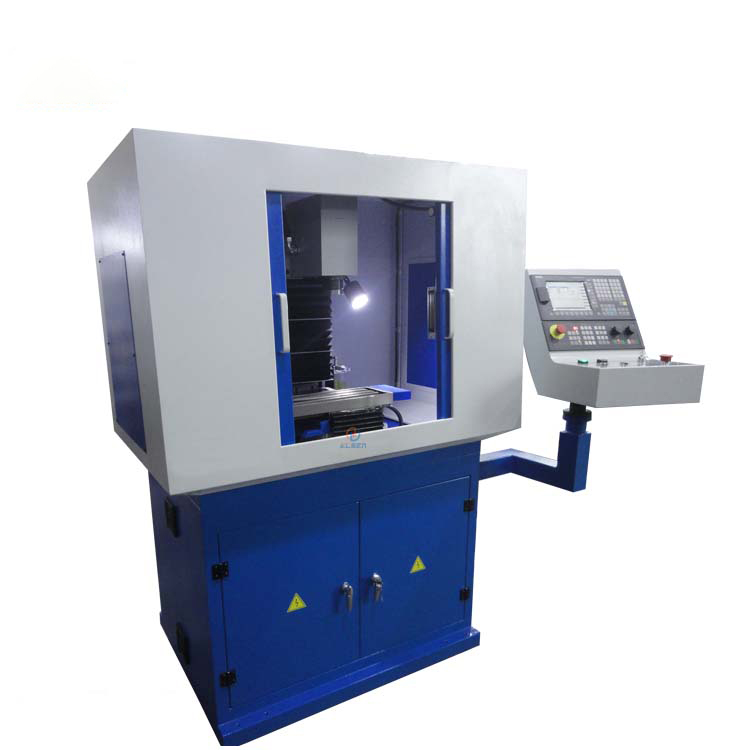

iKX3S
    Publish time 2022-03-21 22:13
iKX3S
1. It is the model in small vertical machining center, provide clients with high quality products with the low cost investment.

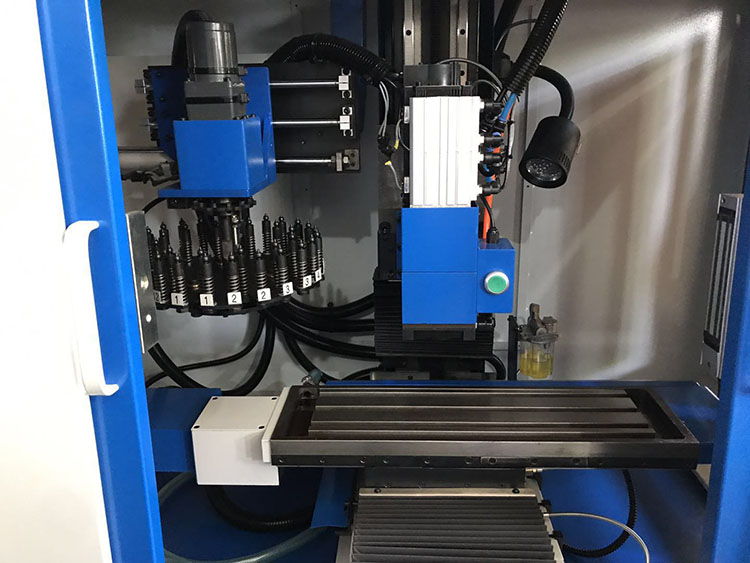

2. 12 positions of powerful tool storage , transparent cover and 5000 RPM spindle speed , ensure the maximum rigidity, high precision milling.
3. The advanced numerical control software can work out high quality parts in the shortest possible time. It is controlled by an ordinary computer, price moderate and easy operation.
4. Adopt the SIEG and SIEMENS system, easy and simple to handle. It is the most cost-effective small brick vertical milling machine on the market at present.


TABLE
Table size
550×160mm
T slot (amount×width×distance)
3×12×43mm
Max. load
30kg




TRAVEL
X travel
270mm
Y travel
152mm
Z travel
270mm
Spindle nose to table
80-350mm


SPINDLE
Spindle taper
ISO20
Spindle motor
1000w
Spindle speed
100-5000r/min



FEED
The max moving speed
2000mm/min
Power of X/Y
400W
Power of Z
750W



TOOL CHANGER
Tool number
12
Max.tool diameter
10mm
Max.tool length
110mm
Max.tool weight
0.5kg
Time of tool changing
8s

ACCURACY
Positioning accuracy
0.015mm
Repeatability accuracy
0.01mm



OTHERS
Pneumatic supply
0.6 MPa
Power
230V/120V
Weight（NW/GW）
390×470kg
Overall dimension
1280×895×1845mm
Packing size
1420×1060×2035mm
