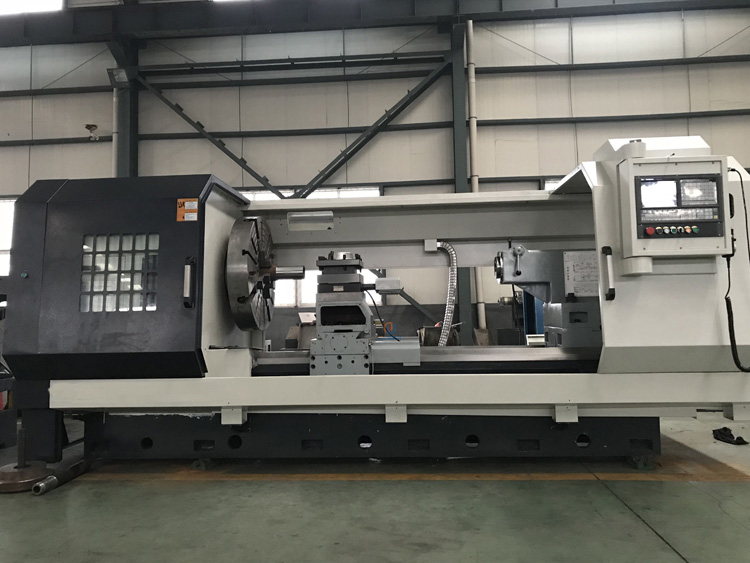

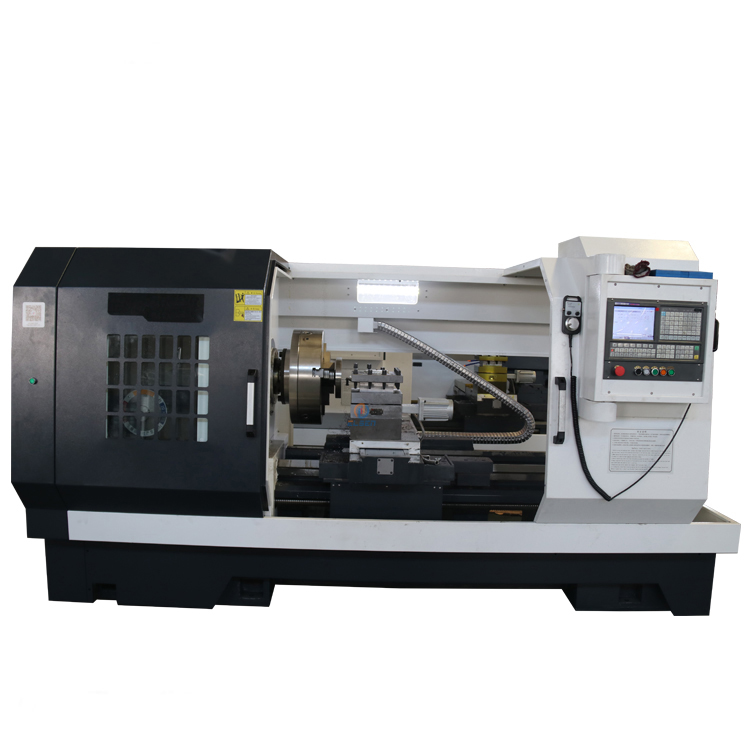

CK61100E
    Publish time 2022-03-21 20:12
CK61100E
Machine can automatically process the inside and outside cylinder surface, cone surface, circular arc surface, end face, such as processing, and also can process the single and multiple threads in metric, inch and other standards.

Higher stability one-piece machine bed
Four position electric turret
3 gear spindle speed, step-less in gear
Higher rigidity pedestal
Wider layer board
Integrated automatic lubrication system
Specification
Unit
CK61100E
Max.swing over bed
mm
1000
Max.swing over cross slide
mm
660
Max.processing length
mm
1500/2000/3000
X/Z axid travel
mm
x:530 z:1500/2000/3000
Spindle transmission type

3 gear spindle speed, step-less in gear
Spindle speed
rpm
18-600
Spindle nose

C11
Spindle bore
mm
130
Spindle taper

140/1:20
Spindle motor
KW
15
Ball screw dia and pitch

3205/6310
X/Z axis feed motor torque
N.m
10/15
X/Z Rapid traverse
m/min
x:4 z:5
X/Z axis repeatability
mm
±0.005
Surface roughness

Ra1.6
Tailsotck sleeve dia.
mm
100
Quill traverse
mm
250
Quill taper
#
MT6
Tool post from

4-station electric turret
Cutting tool shape size
mm
40x40
Total power capacity
KVA
15
Machine dimension(L*W*H)
mm
4250/5750/8750x2100x2100
Net.weight(about)
kg
4900/8500/13500
Standard configuration:
1) System:GSK980TC3, servo motor and drive.
2) 3-jaw manual chuck.
3) Four station electric tool post.
4) Manual tailstock.
5) Cooling system.
6) Lighting system.
7) Automatic lubrication system.

Optional configuration:
1). CNC system: GSK, Siemens, Fanuc, KND, etc.
2). Hydraulic chuck, pneumatic chuck .
3). Hydraulic tailstock, pneumatic tailstock.
4). 6-station electric tool post, 8- station electric tool post, Gang type tool
5). Automatic bar feeder.
