CK6160
    Publish time 2022-03-21 20:03

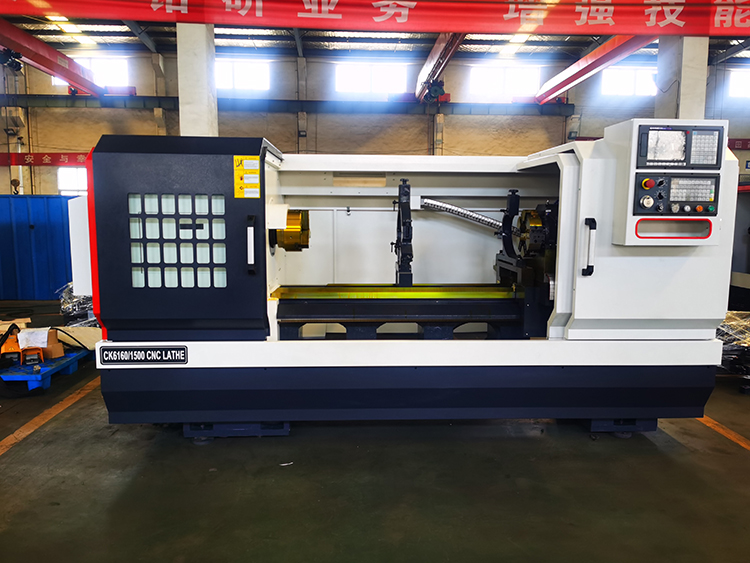

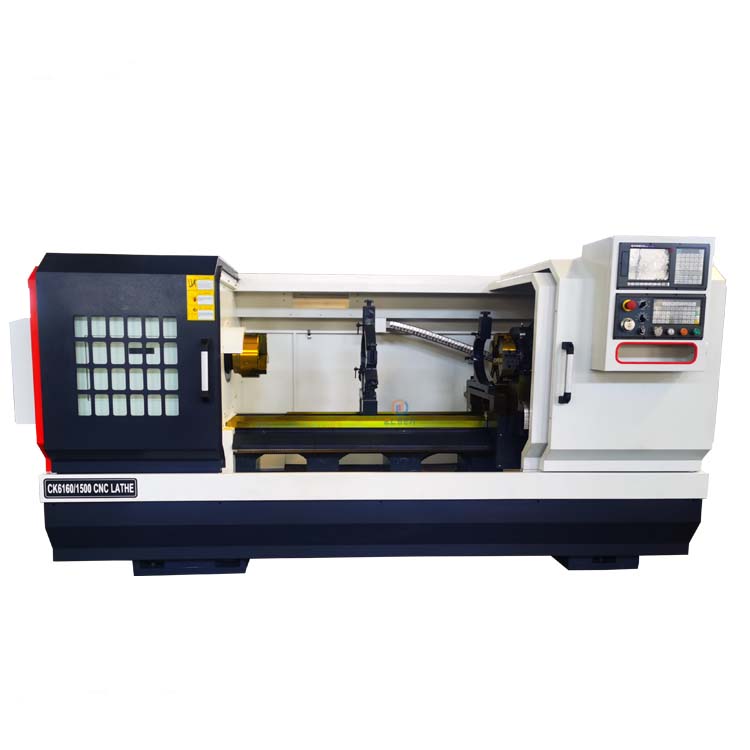

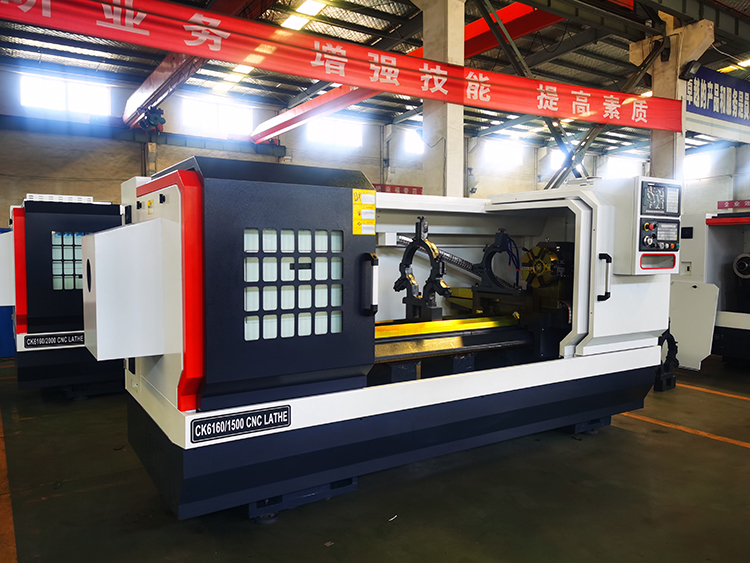

CK6160
Machine can automatically process the inside and outside cylinder surface, cone surface, circular arc surface, end face, such as processing, and also can process the single and multiple threads in metric, inch and other standards.

A high strength, widening the carriage, suitable for heavy cutting
Four position electric turret
Frequency conversion step less speed regulation
Specification
Unit
CK6160
Max.swing over bed
mm
600
Max.swing over cross slide
mm
395
Max.processing length
mm
1000/1500
X/Z axid travel
mm
x:300 z:1000
Spindle speed
rpm
1600/800
Spindle nose

A2-8
Spindle bore
mm
82/130
Spindle motor
KW
7.5/11
Chuck size
mm
250/380
X/Z axis feed motor torque
N.m
5/7.5  7.5/10
X/Z Rapid traverse
m/min
x:8 z:10
X/Z axis repeatability
mm
±0.005
Tailsotck sleeve dia.
mm
75
Quill traverse
mm
200
Quill taper
#
MT5
Tool post from

4-station electric turret
Cutting tool shape size
mm
25x25
Total power capacity
KVA
15
Machine dimension(L*W*H)
mm
2750/3330x1710x1820
Net.weight(about)
kg
3150
Standard configuration:
1) System:GSK980TC3, servo motor and drive.
2) 3-jaw manual chuck.
3) Four station electric tool post.
4) Manual tailstock.
5) Cooling system.
6) Lighting system.
7) Automatic lubrication system.

Optional configuration:
1). CNC system: GSK, Siemens, Fanuc, KND, etc.
2). Hydraulic chuck, pneumatic chuck .
3). Hydraulic tailstock, pneumatic tailstock.
4). 6-station electric tool post, 8- station electric tool post, Gang type tool
5). Automatic bar feeder.
