GZX4230 CNC
    Publish time 2020-05-12 17:27

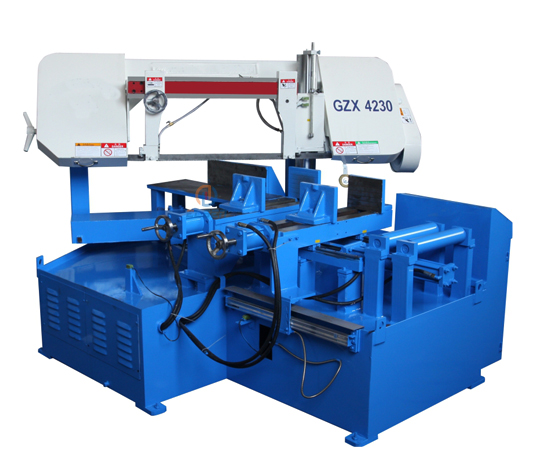

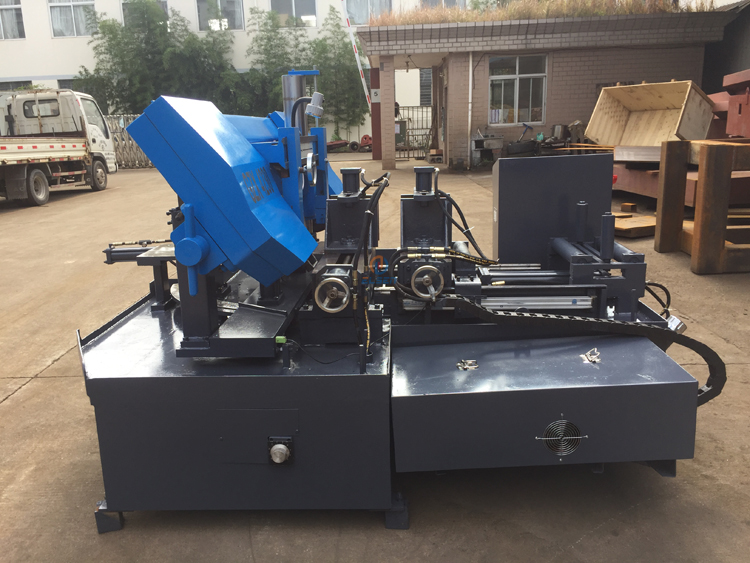

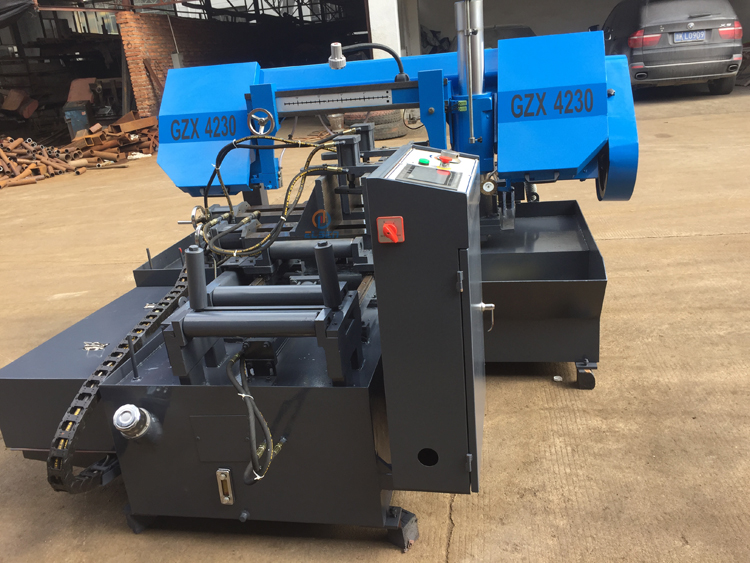

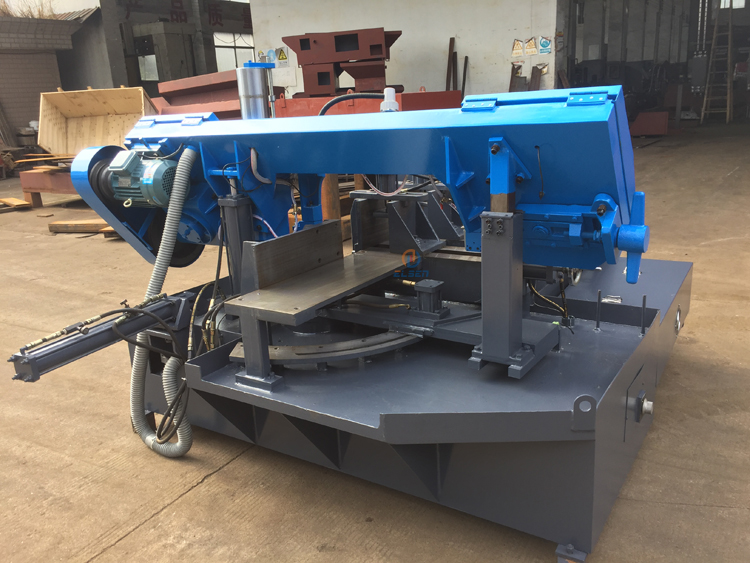

GZX4230 CNC
1. Human machine interface (HMI) instead of traditional control panel, and sawing parameters are set in figures.

2. PLC (programmable logic controller) for flexible setting and change of sawing modes.

3. CNC Full-automatic Metal Band saw machine Mainly used for cutting various kinds of ferrous metal and non-ferrous metal.
With the advantages of narrow saw cut,saving material , energy-saving , the structure of the machine tools is reasonable and reliable performance and high precision .

4. Adjustable method of feeding speed: Belt speeding with hydraulic pressure Max.length of one-way.

Model

GZX4230



Max. Cutting Diameter

90° Φ300mm Square:300*350 mm

45° Φ300mm Square:220*300 mm

Blade Speed

27.40.50.70  m/min

Blade Size

1.1*34*4320 mm

Motor Output

3 kw

Hydraulic Pressure

0.75 kw

Coolant Pump

0.08 kw

Table height

630 mm

Machine Size(L*W*H)

2300*2100*1500 mm

Net Weight

1600 kg

Vice clamping

Hydraulic

Blade tensioning form

Maunal

Feeding cut adjust way

Hydraulic stepless

Feeding way

Automatic

Hydraulic cooling way

Wind cooling

Voltage

380V 50HZ 3Phase
