1. The cut-off time of the machine is 4 to5 times that of hack sawing machine
2. The saw kerfs is 2mm narrower than of hack sawing machine..
3. Hydraulic feeding, step less speed regulation.
4. Hydraulic claming, automatic stopping.
5. Simple and convenient operation and maintenance
|
Model
|

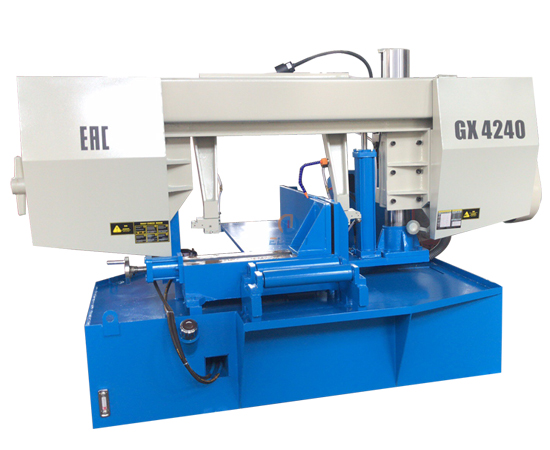

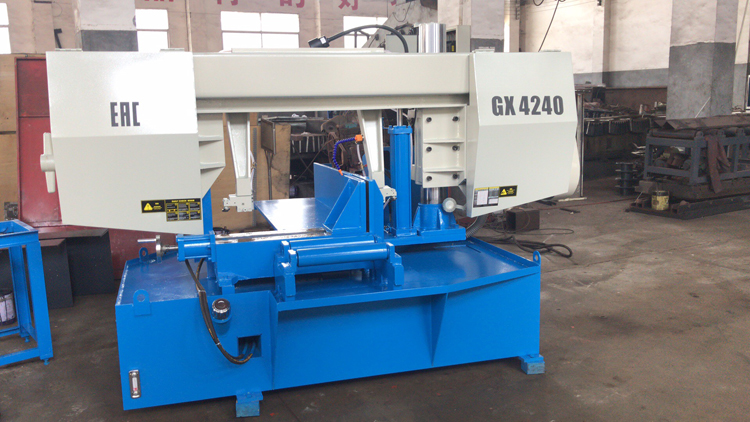

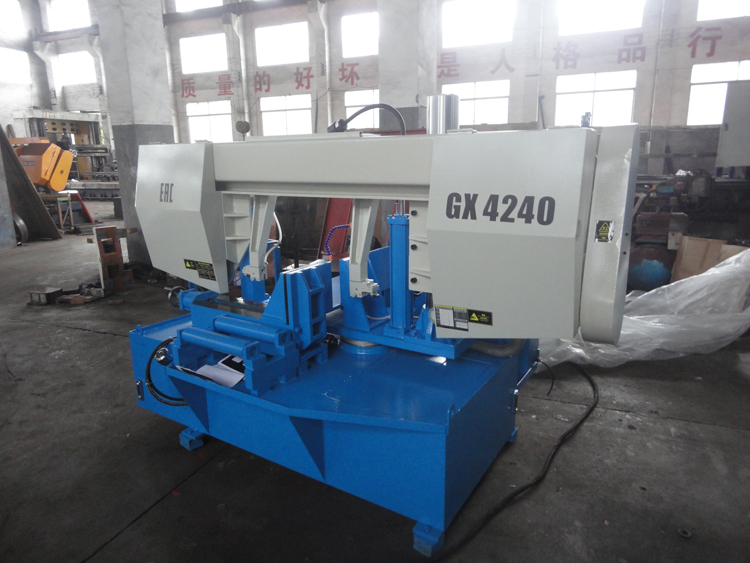

GX4240
|
|
Max. Cutting Diameter
|
90° Φ400mm 400*500 mm
|
|
|
45° Φ300mm :250*400 mm
|
|
Blade Speed
|
30.40.55.80 m/min
|
|
Blade Size
|
1.3*41*5220 mm
|
|
Motor Output
|
4 kw
|
|
Hydraulic Pressure
|
0.75 kw
|
|
Coolant Pump
|
0.08 kw
|
|
Table height
|
630 mm
|
|
Machine Size(L*W*H)
|
2560*1600*1700 mm
|
|
Net Weight
|
2100 kg
|
|
Vice clamping
|
Hydraulic
|
|
Blade tensioning form
|
Maunal
|
|
Feeding cut adjust way
|
Hydraulic stepless
|
|
Feeding way
|
Manual
|
|
Hydraulic cooling way
|
Wind cooling
|
|
Voltage
|
380V 50HZ 3Phase
|
