1. The cut-off time of the machine is 4 to5 times that of hack sawing machine
2. The saw kerfs is 2mm narrower than of hack sawing machine..
3. Hydraulic feeding, step less speed regulation.
4. Hydraulic claming, automatic stopping.
5. Simple and convenient operation and maintenance
|
Model
|

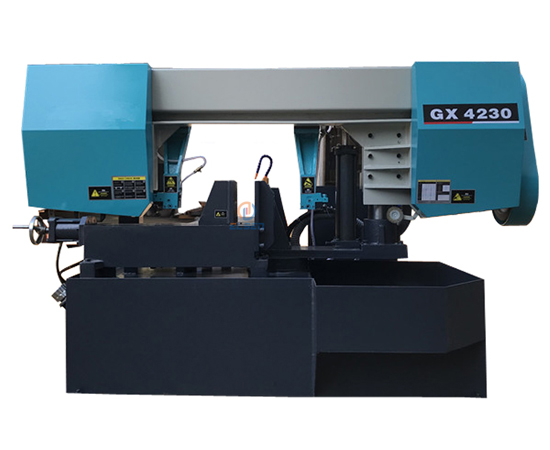

GX4230
|
|
Max. Cutting Diameter
|
90° Φ300mm Square:300*400
|
mm
|
|
45° Φ300mm Square:220*300
|
mm
|
|
Blade Speed
|
27.38.49.71
|
m/min
|
|
Blade Size
|
1.1*34*4115
|
mm
|
|
Motor Output
|
3
|
kw
|
|
Hydraulic Pressure
|
0.37
|
kw
|
|
Coolant Pump
|
0.09
|
kw
|
|
Table height
|
630
|
mm
|
|
Machine Size(L*W*H)
|
2260*1200*1500
|
mm
|
|
Net Weight
|
1700
|
kg
|
|
Vice clamping
|
Hydraulic
|
|
Blade tensioning form
|
Maunal
|
|
Feeding cut adjust way
|
Hydraulic stepless
|
|
Feeding way
|
Manual
|
|
Hydraulic cooling way
|
Wind cooling
|
|
Voltage
|
380V 50HZ 3Phase
|
