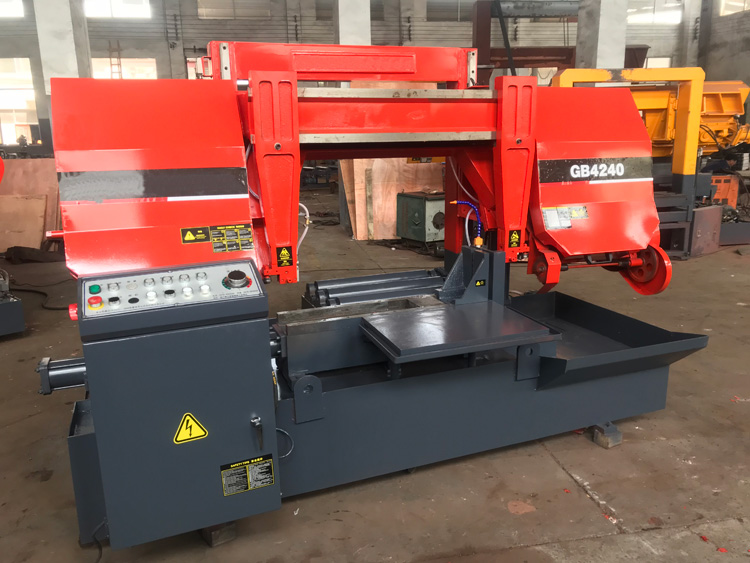

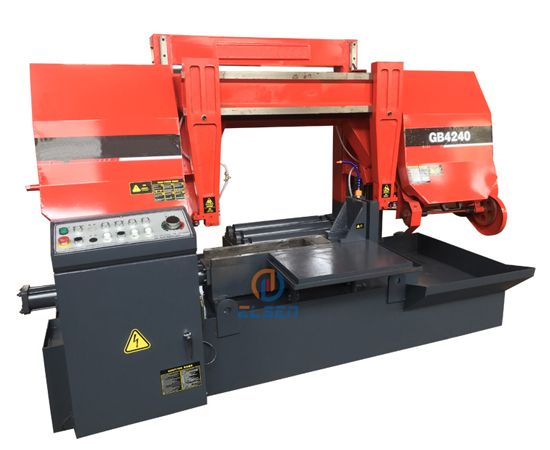

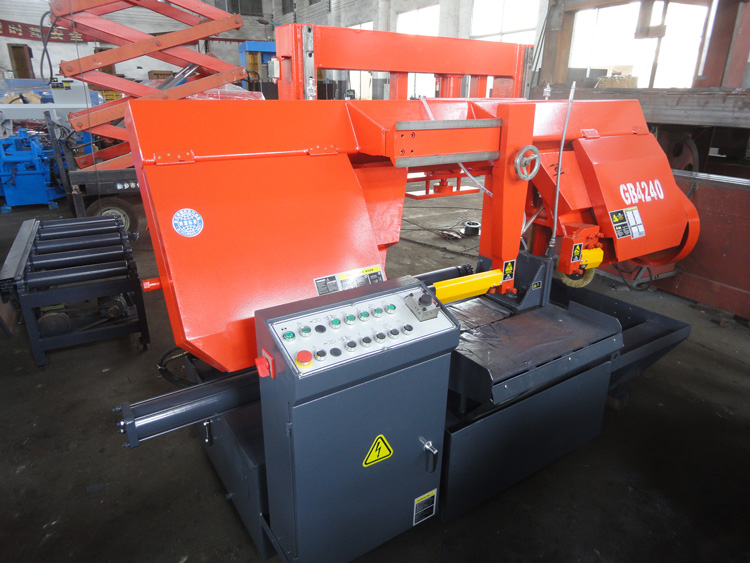

GB4240 Gantry
    Publish time 2020-05-12 12:41
GB4240 Gantry

1.The cut-off time of the machine is 4 to 5 times that of hack sawing machine
2.The saw kerfs is 2mm narrower than of hack sawing machine.
3.It saves the consumption of electricity from 50%-60% the hack sawing machine with the same work.
4.Hydraulic feeding, step less speed regulation.
5.Hydraulic claming, automatic stopping.
6.Simple and convenient operation and maintenance

Model

GB4240  Double Column



Max. Cutting Diameter

Round Φ: 400

mm

Plate: 400*700

mm

Blade Speed

20.30.37.53

m/min

Blade Size

1.3*41*5500

mm

Motor Output

4

kw

Hydraulic Pressure

0.75

kw

Coolant Pump

0.08

kw

Machine Size(L*W*H)

2780*1170*1680

mm

Net Weight

1600

kg
