Specification

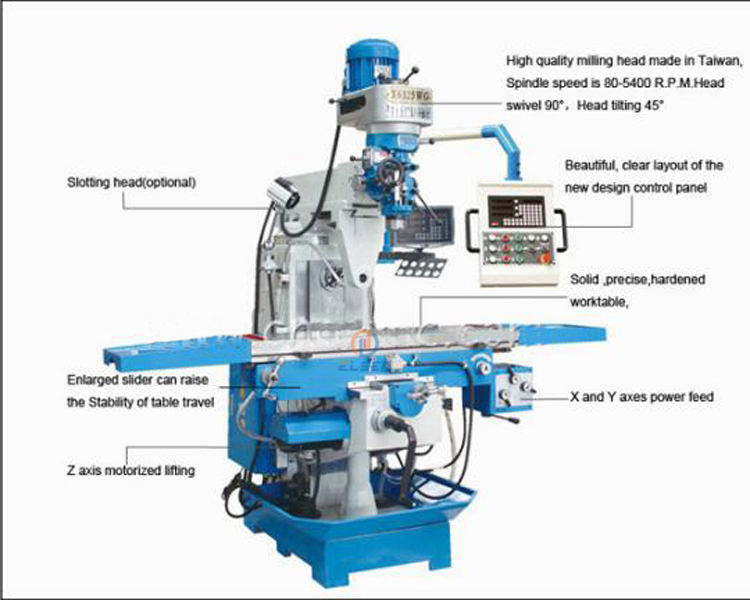

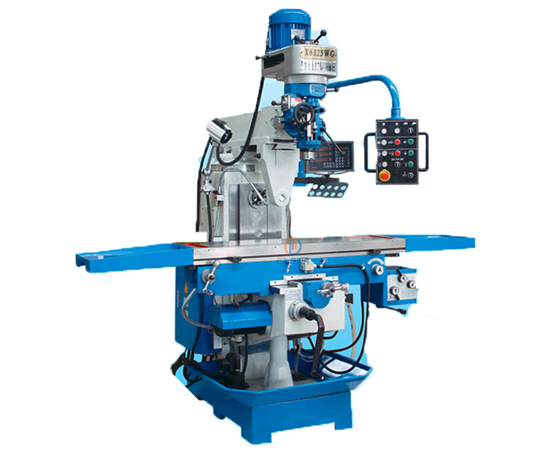

 X6325WG

Spindle taper

ISO40(V)   ISO40(H)

Diameter of quill

95mm

Distance from spindle to table

90-490mm

Distance from horizontal spindle to table

0-380mm

Distance from spindle to column

200-700mm

Spindle speeds

(16steps )60-4540r.p.m(V)

(12steps)40-1300r.p.m(H)

Spindle travel

127mm

Feeding of quill

(3steps)0.04  0.08 0.15

Max drilling capacity of auto-feeding

14mm

Head movement(Left/righe)

90 degrees

Head movement(Before/after)

45 degrees

Table size

1370X320

Table travel(horizontal/cross/vertical)

1000x320x400mm

Feeding range of longitudinal cross travel

22-555mm/min

X,Y-axis rapid feed speed

1080mm/min

Z-axis rapid feed speed

590mm/min

Z-axis motor power

750W

Max weight of workpiece

350KG

T-slot number /width/distance

3/14mm/70mm

Horse power for main motor

2.25kw(V)   3.0kw(H)

X,Y axis driving motor

750W

Overall dimension

1700x1550x2150mm

N.W/G.W

1650/1750
