X6132BH
    Publish time 2020-05-06 18:38

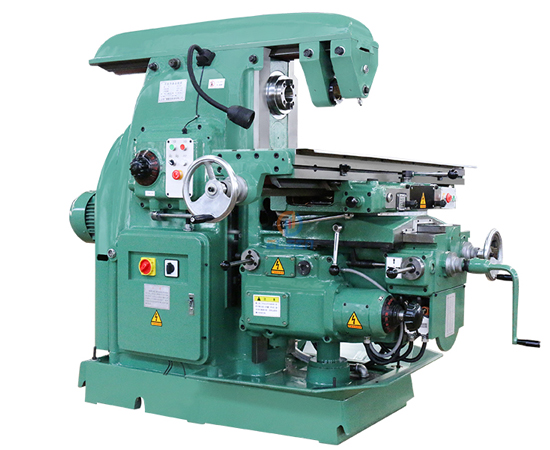

X6132BH

1. Using rectangular guide machine is Rigid good,
2. Work table and guide rail through the ultra audio spark quenching.
3. Work bench X. Y.Z are gear drive automatic feed and manual operation

Application:

1. Universal lifting platform milling machine is a kind of general metal cutting machine tool.
2. Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disc
cutter, molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane,
grooves, holes, and other gear. Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other
industries of the ideal processing equipment.

Product main technical parameters:
Specifications
Units
X6132A
X6132B
X6132BH
Table size
mm
320×1325
320×1600
320×1600
Max. longitudinal of table travel(manual/automatic)
mm
700/680
900/680
900/880
Max. transverse travel of table (manual/automatic)
mm
255/240
255/240
255/240
Max. vertical travel of table (manual/automatic)
mm
320/300
320/300
410/390
Max rotary angle of table
±45°
±45°
±45°
Distance between spindle axis and column guide way
mm
30-350
30-350
30-440
Spindle speed step
18
18steps
18
Spindle speed range
r.m.p
30-1500
30-1500
30-1500
Feed range of table travel
18
18steps
18
Main motor power
kw
7.5
7.5
7.5
Rapid motor power
kw
2.2
2.2
2.2
Overall dimension
mm
2294×1770×1610
2294×2050×1610
2294×2050×1790
N.W./G.W.
kg
2650/2950
2740/3040
2940/3240
