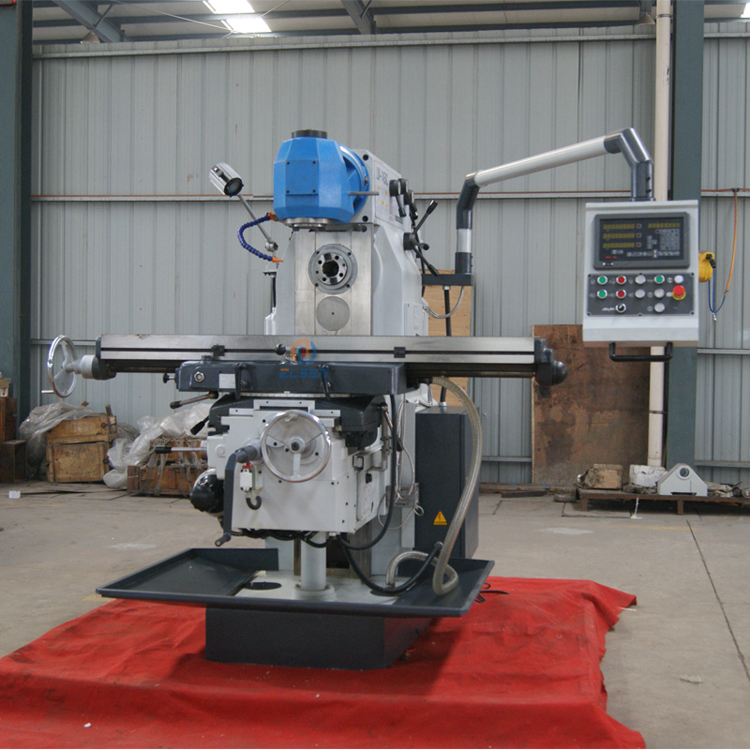

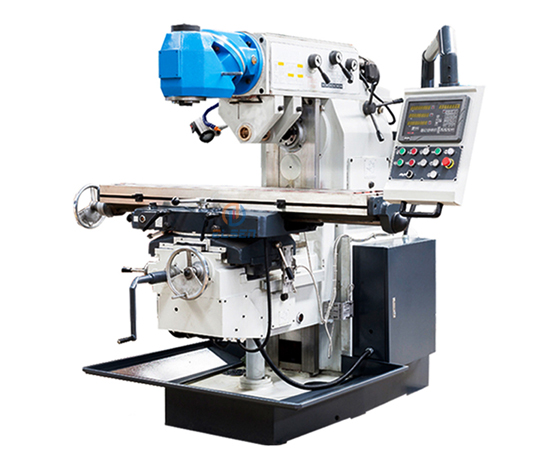

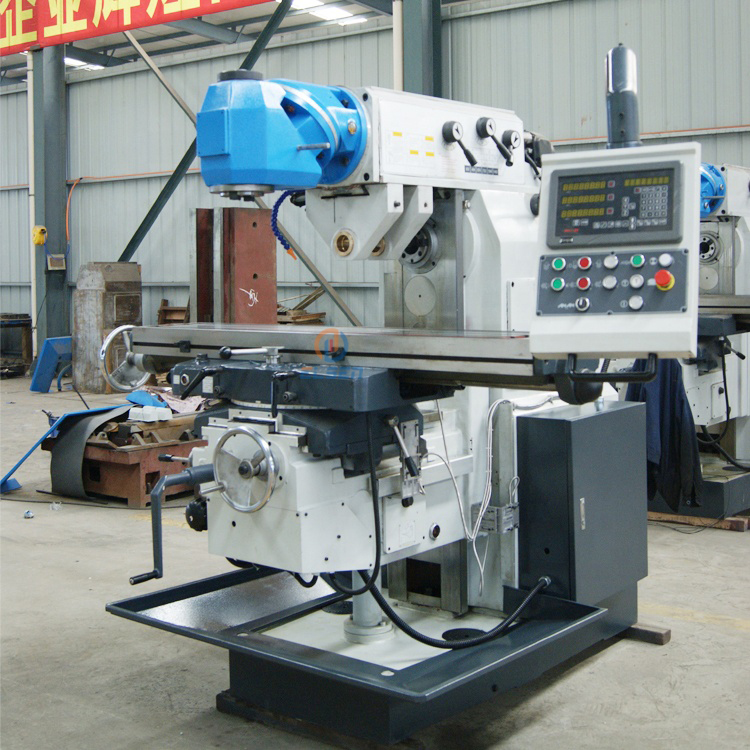

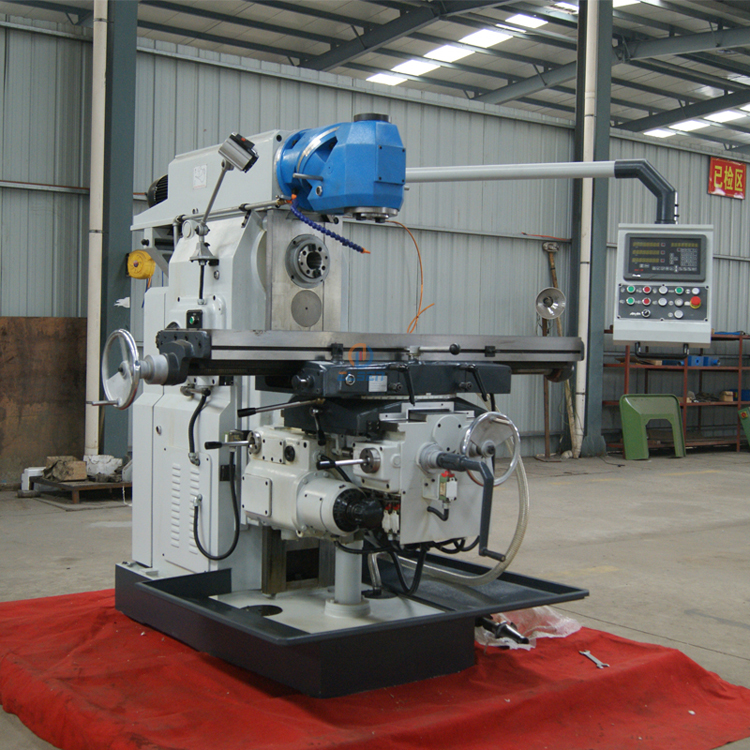

Application:
LM1450C DRO swivel head universal milling machine can be used both for vertical milling and horizontal milling, with corresponding attachments, it can also mill various rotary surfaces and grooves, etc. Two-section revolving cutter head enables the spindle to revolve and adjust at any angle, and mill complicated parts with multi-angle and multi-face by one time of holding. It is the ideal machining equipment for the industries of mechanic manufacture, moulds, automobiles and motorcycles.
Features:
1.Hardened guideway
2. Work table can swivel 45 degree
3.X.Y & Z axis auto feeding

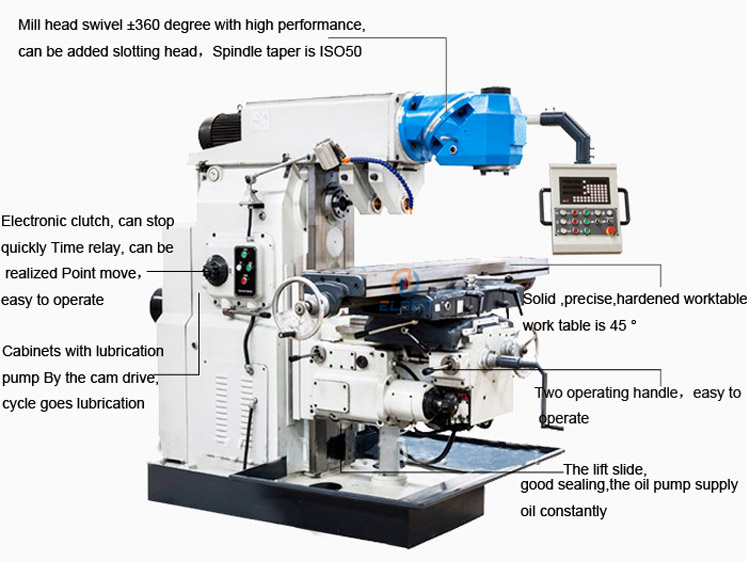

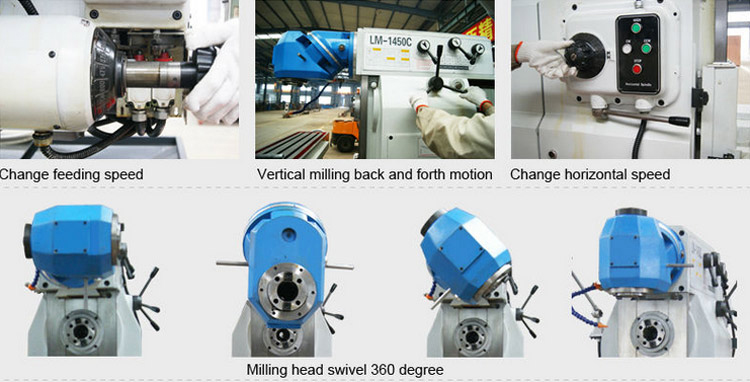

4.Mill head swivel ±360 degree with high performance
5. Spindel Taper is ISO 50,Large torgue
| SPECIFICATION | UNIT | LM1450C |
| Table size | mm | 1600X320 |
| Numbers,width distance between T - slot | mm | 3X18X70 |
| Max. longitudinal travel | mm | 800 (Manual1000) |
| Max. cross travel | mm | 310 (without DRO) |
| Max. vertical travel | mm | 420 |
| Travel of Arm | mm | 730 |
| Vertical spindle to worktable | mm | 150-570 |
| Horizontal spindle to worktable | mm | 0-420 |
| Swivel angle of the vertical milling head | degree | ±360° |
| Max. rotary angle of table | degree | ±45° |
| Distance from vertical spindle to column surface (Min) | mm | 270 |
| Distance from horizontal spindle to ram bottom | mm | 200 |
| Level spindle taper | taper | 7:24 50 |
| Milling head spindle taper | taper | 7:24 50 |
| level spindle speed grade | steps | 18 |
| level spindle speed range | rpm | 30-1500(50HZ) |
| Milling Head spindle speed grade | steps | 12 |
| milling head spindle speed range | rpm | 60-1700 |
| Grade of the work-table feeds | steps | 18 |
| Range of feed speeds longitudinal,cross, vertical | mm/min | 23.5-1180 |
| Speed of rapid travels longitudinal, cross, vertical | mm/min | 2300/ 770 |
| Milling head spindle drive motor | kw | 4 |
| level spindle drive motor | kw | 7.5 |
| Feed motor | kw | 1.5 |
| Coolant pump | w | 125 |
| Net weight /Gross weight | kg | 3500/3700 |
| Overall dimensions(L W H) | mm | 2120X1980X2000 |
| Packing Size | mm | 2230X2100X2250 |
