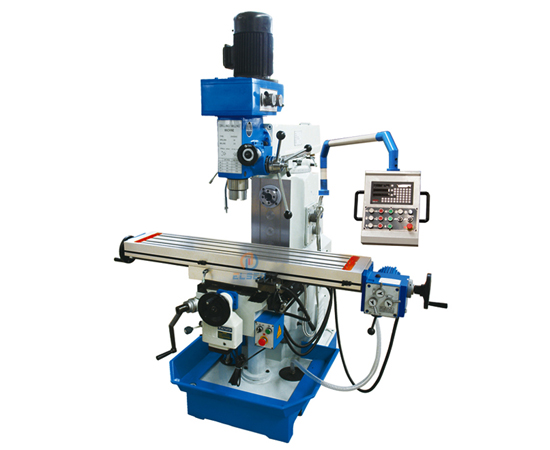

ZX6350C
    Publish time 2020-04-22 16:05
ZX6350C

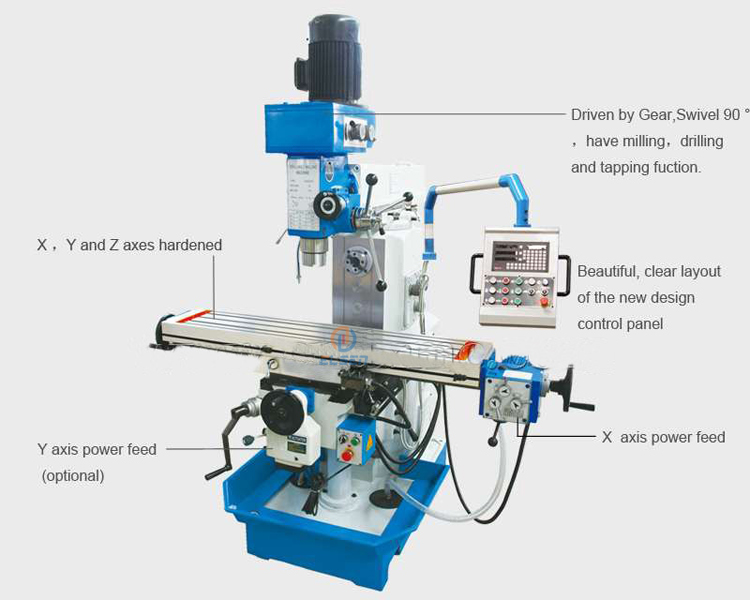

Features:

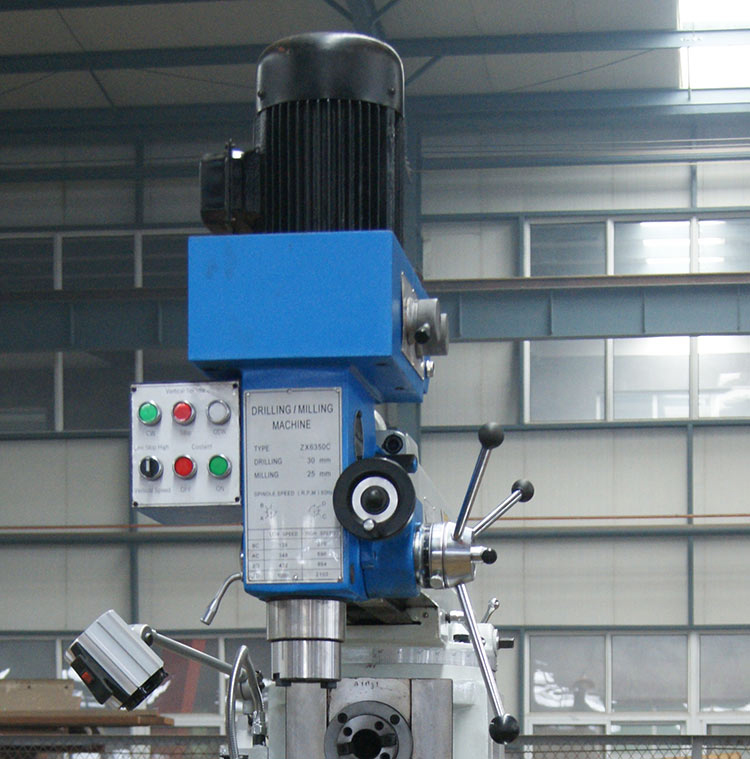

1.Gear drive for vertical milling / horizontal milling,

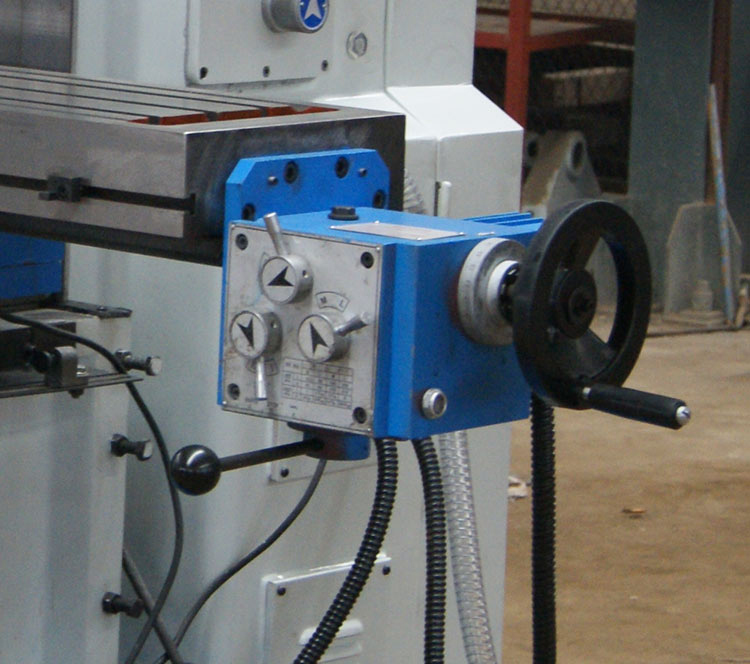

2.Workbench feed X to automatic, Y/Z to manual,
3.Milling head can be rotated 45 degrees,
4.Spark quenching machine.


Specifications
Units
ZX6350C
Max. drilling dia.
mm
50
Max. end milling width
mm
100
Max. vertical milling dia.
mm
25
Max.boring dia.
mm
120
Max. tapping dia.
mm
M16
Distance from spindle nose to table surface
mm
80-460
Spindle taper
mm
MT4
Spindle speed range
rpm
36-1526(V) 40-1300(H)
Spindle travel
mm
120
Table size
mm
1200×280 Optional: 1500x280
Table travel
mm
600×280  Optional: 1000x280
Table feed speed
mm/min
X:16-480
Overall dimensions
mm
1500×1600×2200
Spindle motor power
kw
1.5/2.2(V) 3(H)
Machine weight
kg
1300/1400
