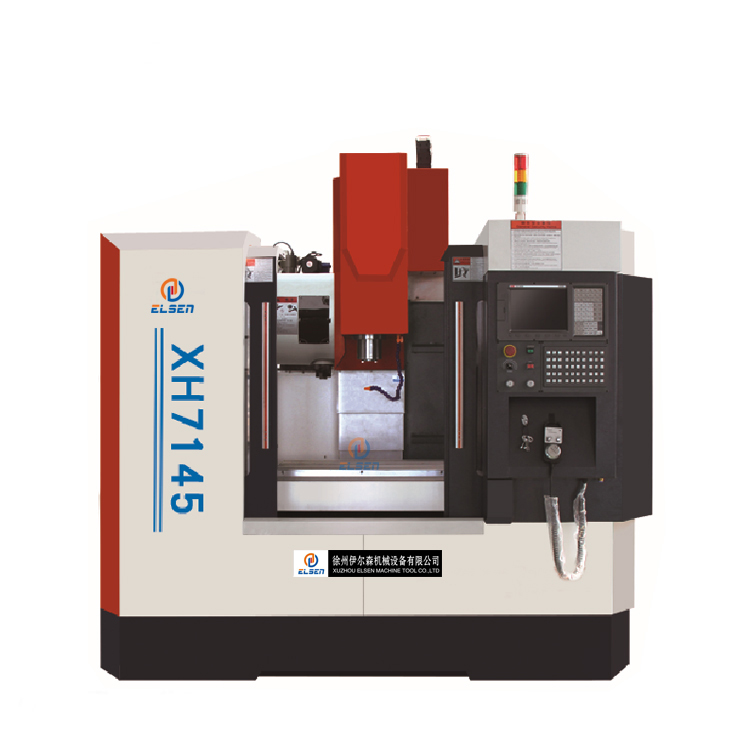

With a CNC milling body, this machine boasts strong carrying capacity, it also has three quench hardening guideways, wide guide rail & broad span as well as compact & reasonable structure and overall dimension; spindle are driven by frequency conversion motor via timing belt. The machine has milling, drilling, boring, reaming and etc. multiple functions, which could realize complex & high-precision components’ machining upon plates, boards, shells, molds and etc., it is mainly applied to machine high-precision components, it could process plane & slope, groove, holes and etc. of small and medium-sized components. In overall, this milling machine is an ideal machining equipments for machine, electronics, instruments, meters, molds, molds and etc. industries.
specifications
unit
XH7145
Table size
mm
800x450
Table maximum load
kg
500
T slot(number-width-pitch)
5-18-80
X axis travel
mm
650
Y axis travel
mm
450
Z axis travel
mm
500
Distance between spindlecenter and column surface
mm
485
Distance between spindle nose and worktable surface
