Model

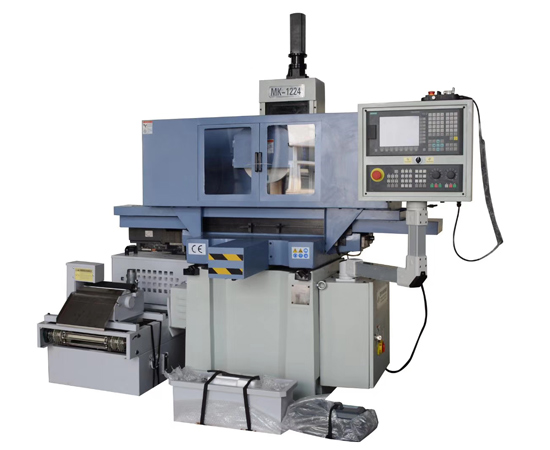

MYK1224

Working table

Table Size(L × W)

mm

600×300

Max movement of worktable(L × W)

mm

650×320

T-Slot(Number×Width)

mm

1×14

Grinding head

Distance from table surface to spindle center

mm

480

Wheel size(Outer diameter×width×Inner diameter)

mm

Ø300×30×Ø76.2

Wheel speed

r/min

1450

Feed amount

Longitudinal speed (left and right)of working table

m/min

3-20

Cross speed (front and rear of working table

m/min

0.5-15

Vertical automatic feed amount of grinding head

mm

0.005-0.05

Rapid up and down speed of grinding head(Approximation)

m/min

0-5

Motor power

Spindle motor

kw

3

Coolant pump motor

W

40

Up and down servo motor

W

750

Cross servo motor

W

750

Hydraulic system

Hydraulic motor

KW

2.2

Working pressure

MPa

4

Oil bank capacity

L

100

Max flow

L/min

18

Working precision

The parallelism of working surface to base level

mm

300:0.005

Surface roughness

μm

Ra0.32

Weight

Net

kg

1530

Gross

kg

1650

Chuck size

mm

300×600

Overall dimension(L×W×H)

mm

2800x1600x1800

Package dimension(L×W×H)

mm

2900x1700x2000
