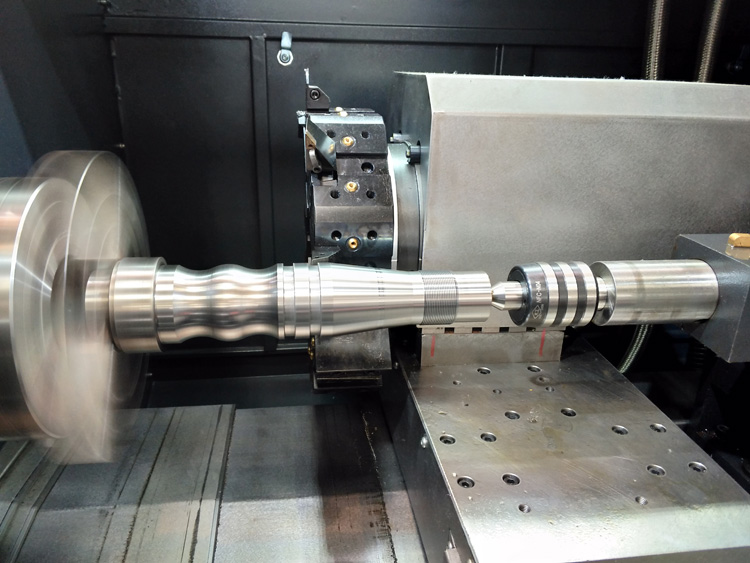

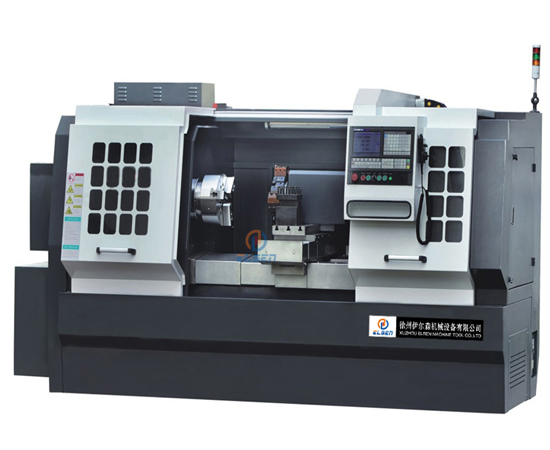

♦Linear guideways are protected by stainless steel telescoping guards for maximum protection and extending life.
♦Ballscrew are out in the middle of linear guideway without side friction torque, have a better dynamic property and are more stable over long term.
♦Servo X/Z axis motor. Spindle can be driven with a frequency inverter motor or servo motor.
♦Various control systems, toolposts, and chuck are available to configure machine for the user's individual needs.
♦The tailstock configuration is available on flat bed linear guideway structure, improving accuracy.
| Item | Specifications | Unit | Parameters | ||
| Capacity | Chuck size | inch | 12",Op:15" | ||
| Bed type/guideway | Flat/Linear guider | ||||
| Max swing over bed | mm | φ550 | |||
| Max length of workpiece | mm | 1000/1500(center to center) | |||
| 850/1350(chuck to center) | |||||
| Op:750/1250(8/12 station turret) | |||||
| Max swing over slide | mm | φ320 | |||
| Spindle | Spindle bore | mm | φ105 | φ105 | φ120 |
| Max dia of through hole | mm | φ91 | φ91 | φ110 | |
| Spindle nose | A2-11 | A2-8 | A2-11 | ||
| Spindle speed | rpm | 1000 | 1800 | 1000 | |
| Main motor power | kw | 11,Op:15 | |||
| Axis | X /Z axis travel | mm | 280/1000,280/1500 | ||
| X/Z rapid traverse | m/min | 15/15,Op:20/20 | |||
| Tool Post | Type | 4-station toolpost | |||
| Op:8-station turret | |||||
| Op:gang type tooling | |||||
| No.of tool stations | nos | 4+2,Op:8+2 | |||
| Tailstock | Type of tailstock | Manual,Op:Hydraulic | |||
| Taper of tailstock quill | MT5 | ||||
| Travel of tailstock quill | mm | 100 | |||
| Size | Power capacity | KVA | 18 | ||
| Overall dimension(L*W*H) | mm | 3400x1600x2010 | |||
| Weight | kg | 3800 | |||
Standard Features
|
Manual 3 Jaw Chuck |
| 4-station turret,plus gang tool plate |
| Linear guider way |
| Auto Lubrication System |
|
Auto Coolant System |
|
Tri-color Alarm light |
| Optional configurations |
| 8/12-station turret |
| Different chucks and different collets |
| Siemens/ Fanuc/Mitusbishi/GSK cnc controller |
|
Chip conveyor |
|
C axis and Live turret |
| Tool setter |
